Cast 3D Porcelain Tile | Creative Materials Corporation

Cast porcelain tile draws inspiration by combining age-old artistry with contemporary design. Its minimalistic yet expressive contours create an ever-evolving visual experience influenced by varying light, shadow, and perspective. Shaped with a keen eye for detail, from texture and form to its hues, each piece tells its own story.

Creative Features:

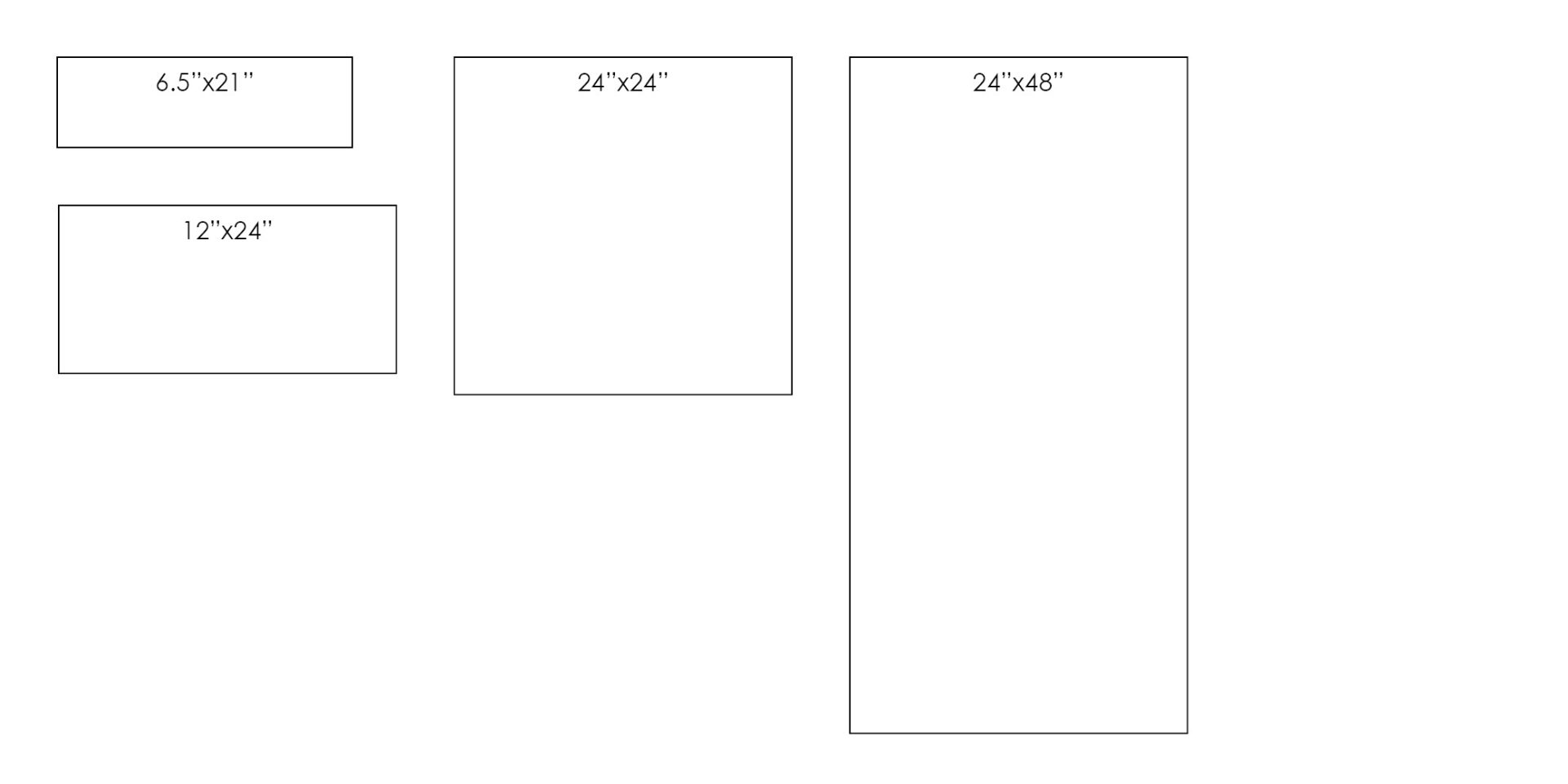

Four Sizes | 6.5” x 21” up to 24” x 48”
One Finish | Matte
Dimensional Pattern Play
Porcelain
Made in Spain

The range opens a realm of possibilities, seamlessly blending form and concept to serve as the perfect enhancement to any space. Step into a world where nature’s beauty is celebrated and innovation is embraced.

EXPLORE THE CAST BROCHURE

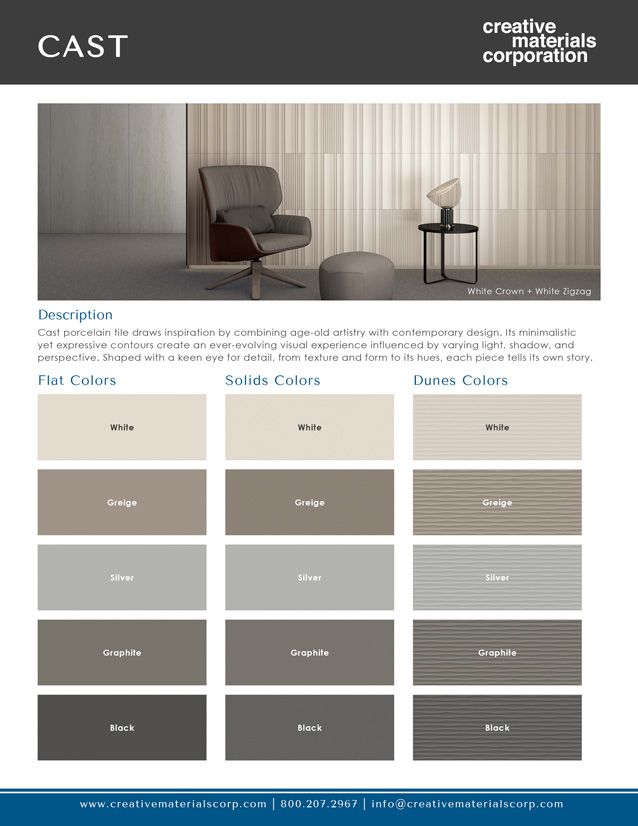

VIEW COLOR & SIZE MATRIX VIEW CUTSHEET

Cast Color Palette

Click on a product to request a sample or add it to your custom project board.

Add to a board Request Sample

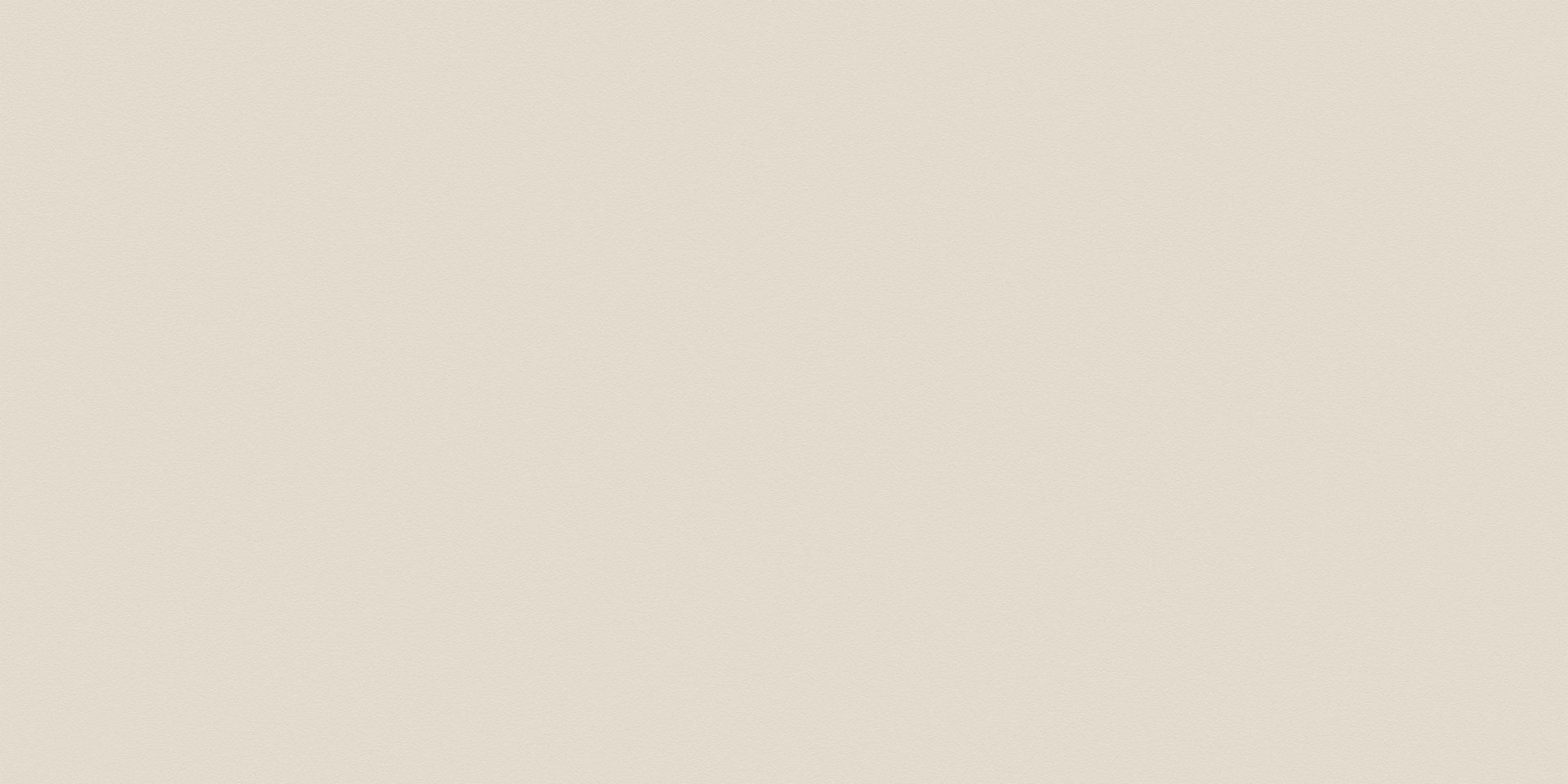

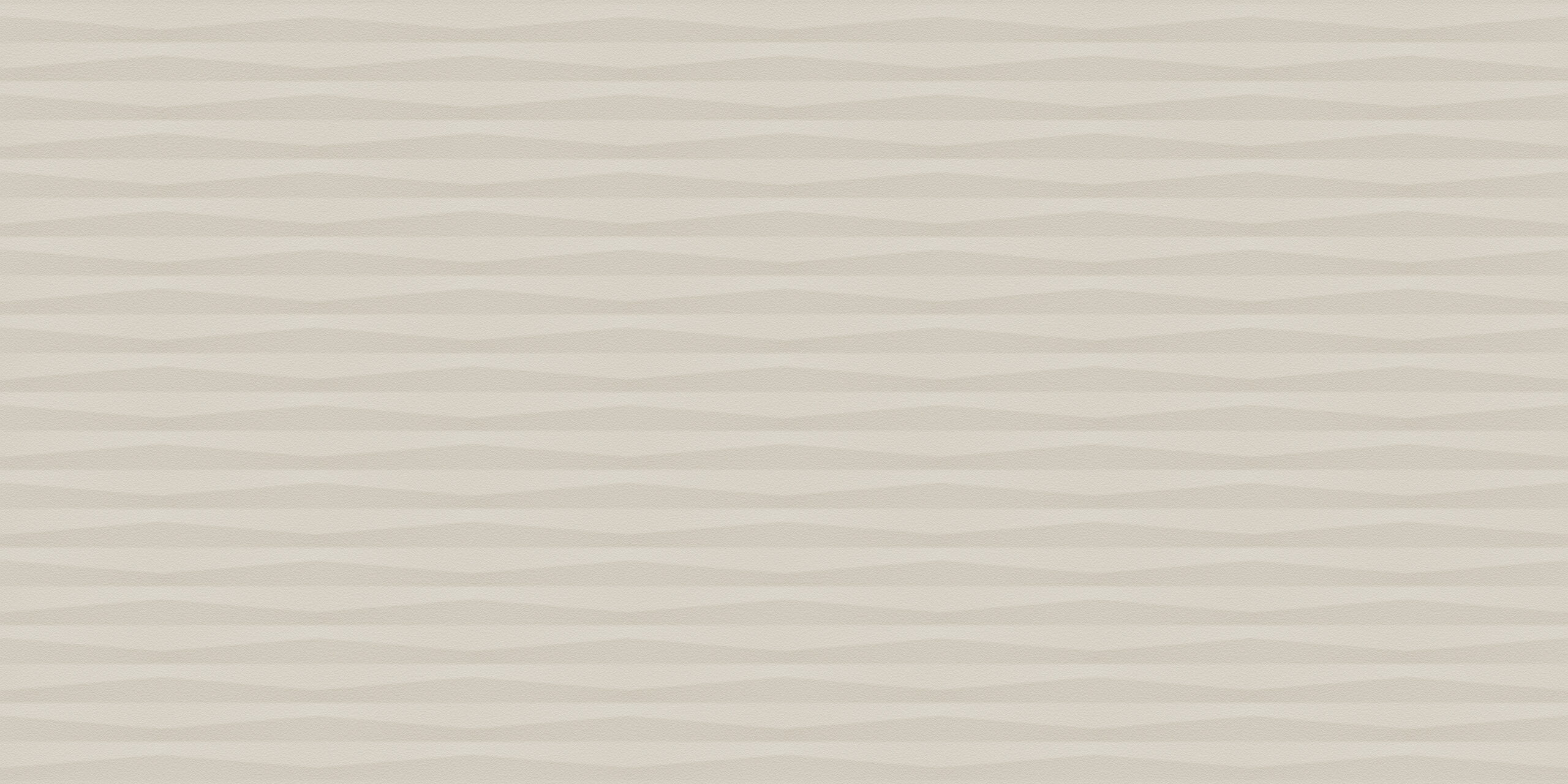

White View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Grout joints shown are for illustrative purposes only. Actual size of the grout joints will vary based on tile production caliber, edge treatment, and patterns utilized. Tile size shown with grout application may not be indicative of available size. Grout colors shown here may not accurately represent the actual color of the installed product because of jobsite conditions, product preparation, installation methods, lighting, image variance on computer monitors, and the type of tile or stone utilized. Consequently, MAPEI makes no representation, warranty or guarantee of any kind regarding the color, texture, appearance or suitability of our products. For those characteristics, MAPEI excludes all express or implied warranties including, but not limited to MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE.

Add to a board Request Sample

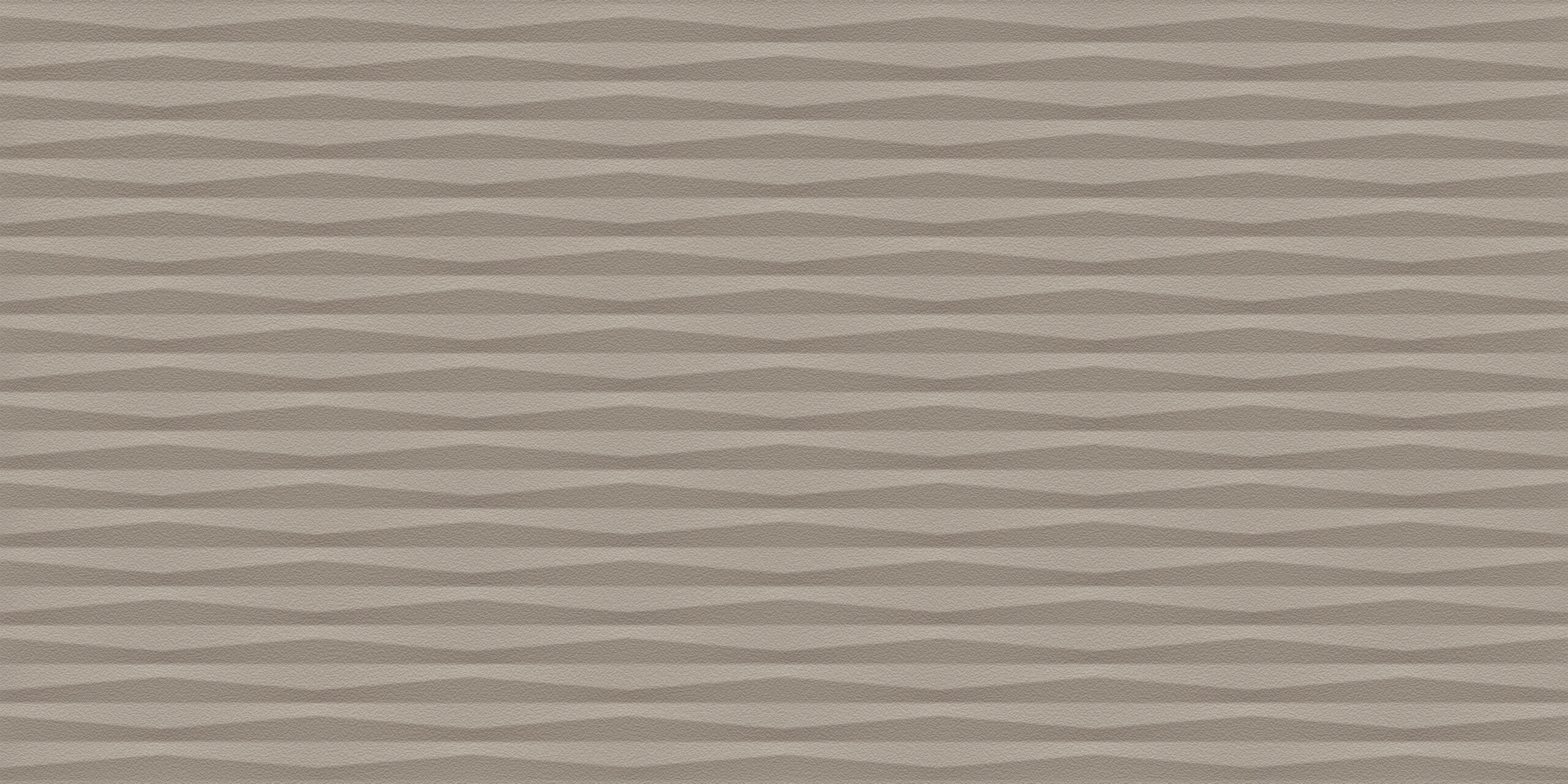

Greige View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

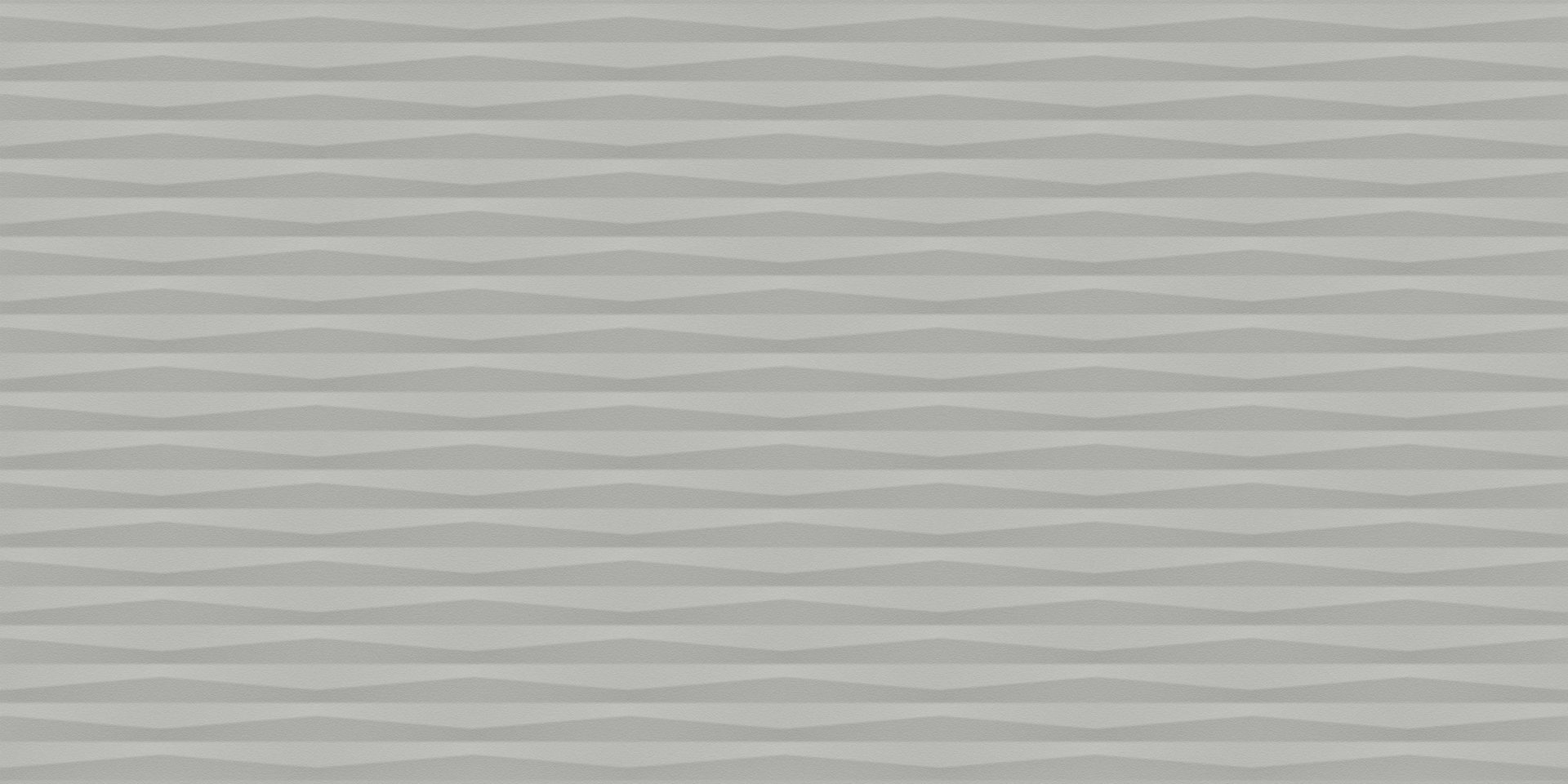

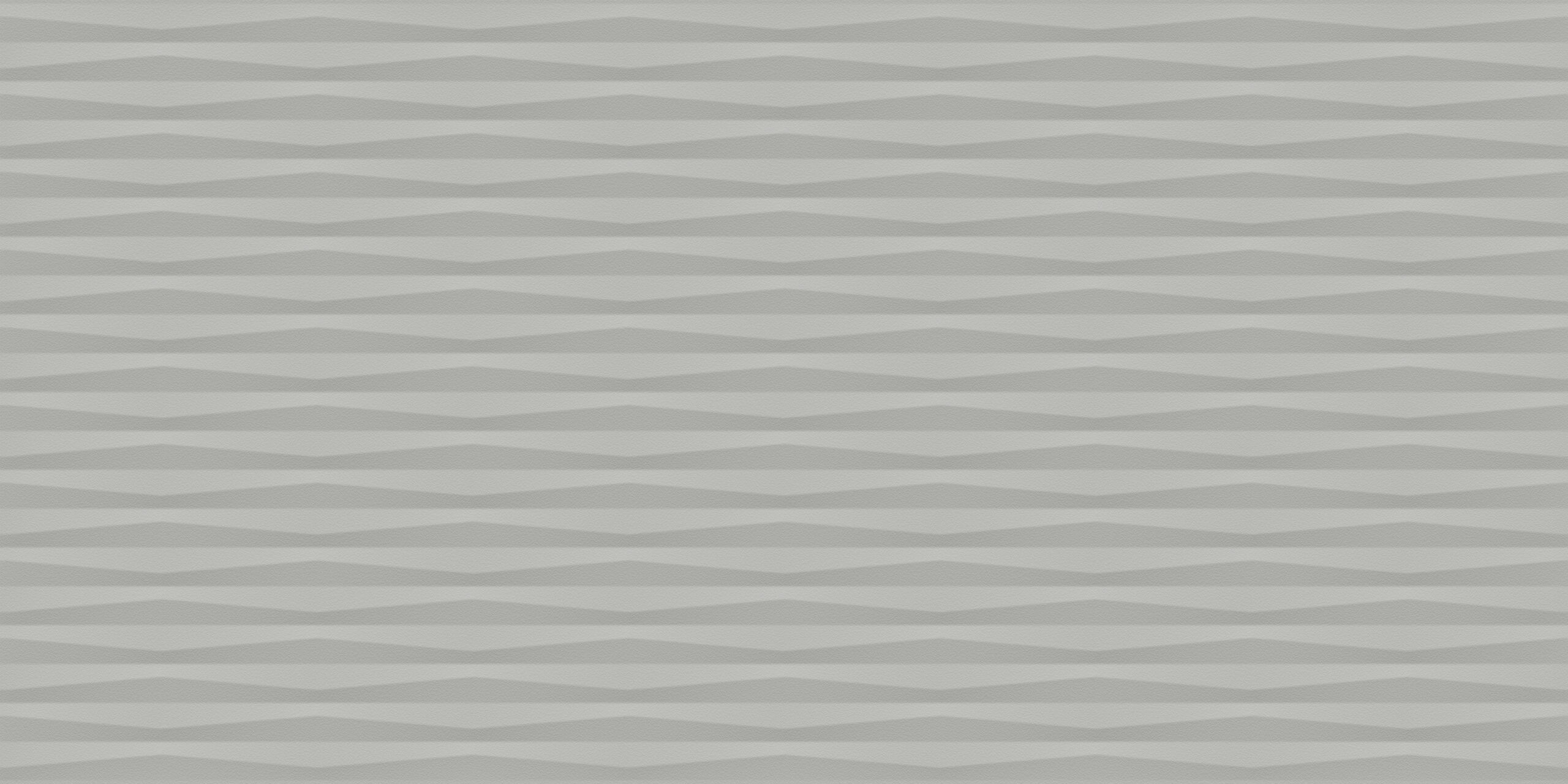

Sliver View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

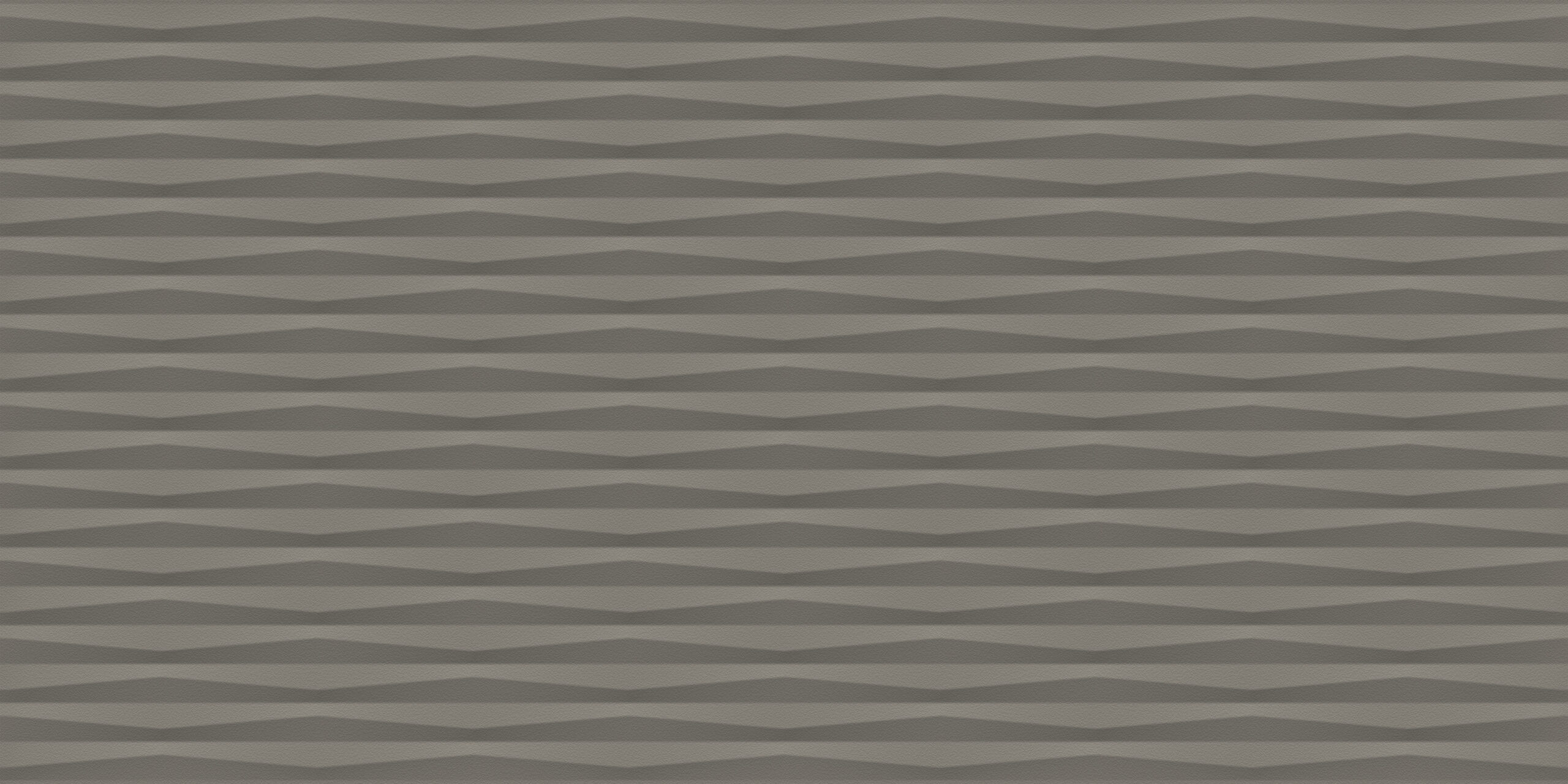

Graphite View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

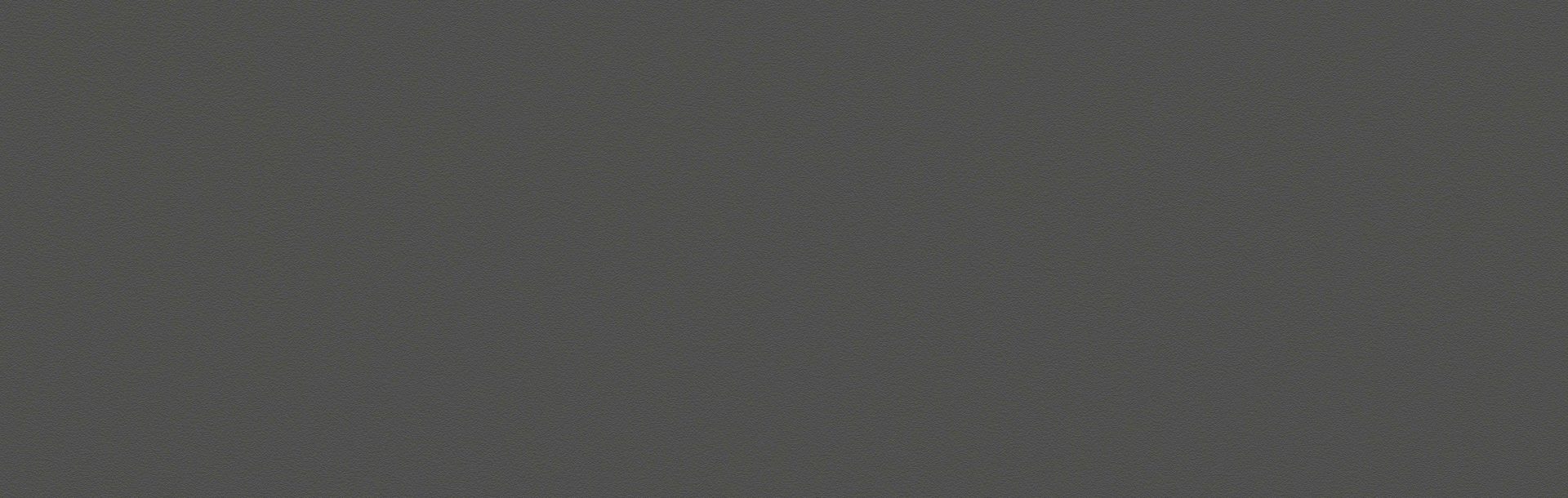

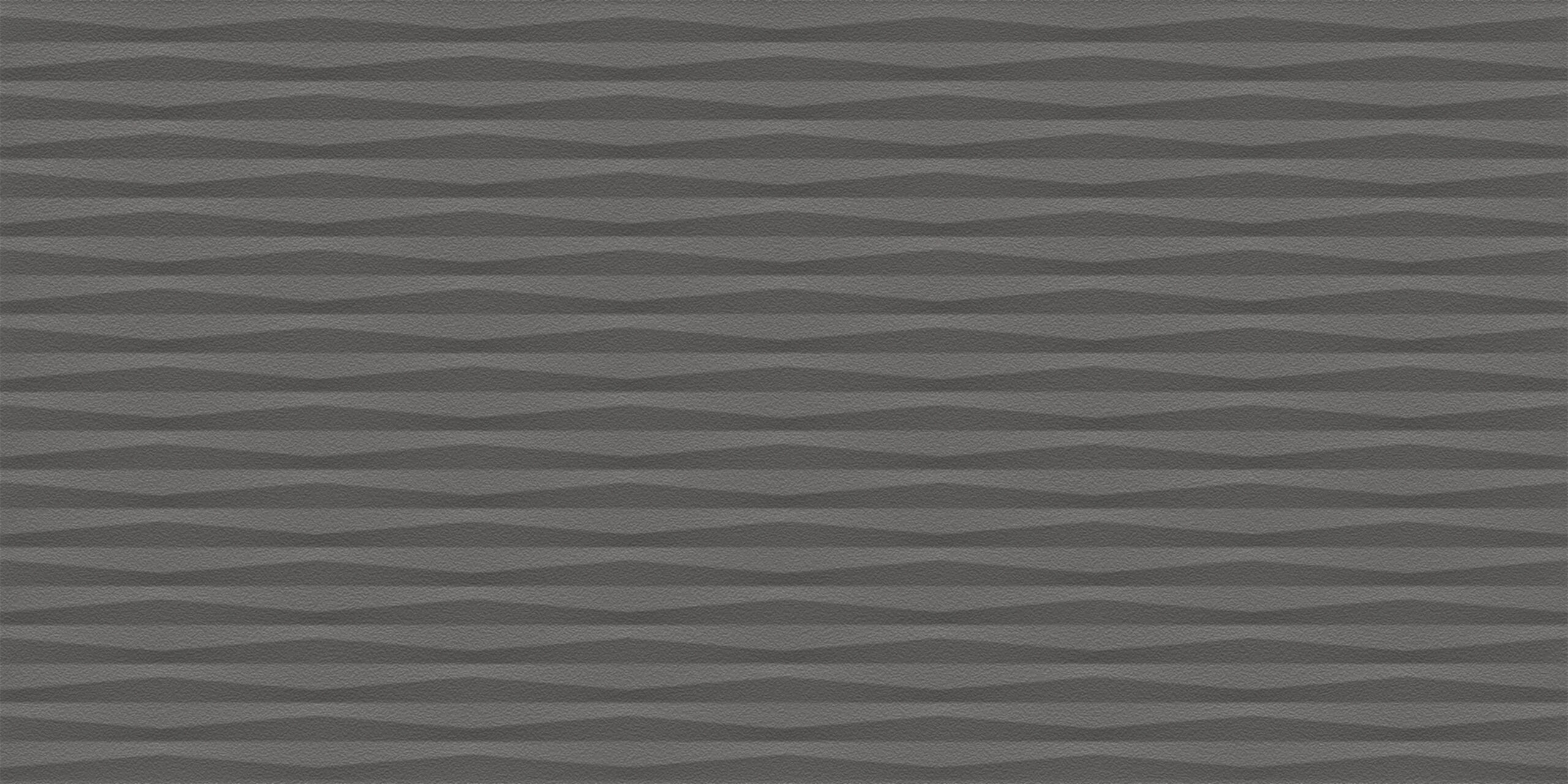

Black View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Body	Glazed Color-Body Porcelain \| Unglazed Porcelain
Country of Origin	Spain
Budget Price Per square foot. For budgeting purposes only. Applies to field tile (not mosaics, trim, décor). Overall collection average used - some items slightly less or slightly more than range.	$3-$6
Lead Time Estimated based upon averages. Lead times on each order depend upon availability at time of order. West coast of US should add +1 week if product is import. Contact us for QTYs >5,000SF.	8-10 Weeks
Stock Availability	Import
Shade Variation	V1
Application	Floor TileWall Tile
Rectified	Yes
Look	3D, Wall Tile
Thickness	10.5mm11mm12mm
Finish	Matte
Notes	Refer to Cutsheet in Download Tab for Size + Finish + Thickness Specifics

Test Name	Test Method	Test Result	Industry Standard
Water Absorption	ISO 10545-3	< 0.5%	𝗣𝗼𝗿𝗰𝗲𝗹𝗮𝗶𝗻 • <0.5%
Deep Abrasion Resistance	ISO 10545-6	<130mm³ - Slatted & Slots	𝗜𝗦𝗢 • ≤ 175 mm³
PEI	ISO 10545-7	IV - White Flat	𝗣𝗘𝗜 𝟰-𝟱 • Recommended for Moderate to Heavy Commercial

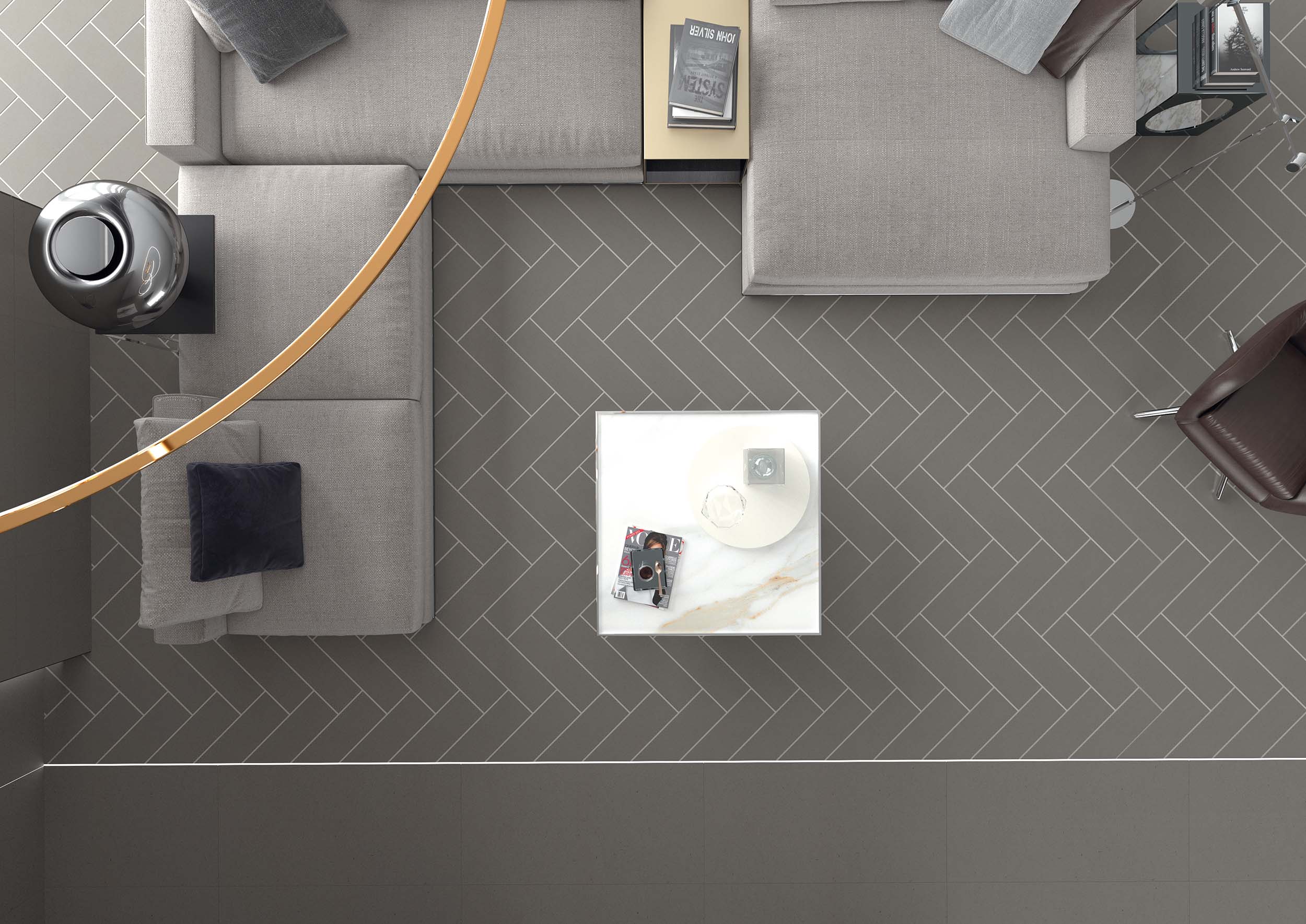

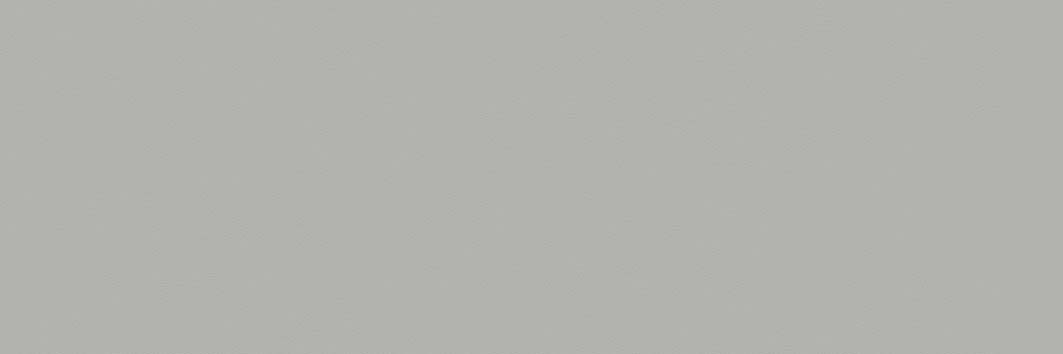

	ISO 10545-7	II - Graphite Flat & Silver Flat	𝗣𝗘𝗜 𝟮-𝟯 • Recommended for Residential Floor - Light Commercial
	ISO 10545-7	I - Black Flat & Greige Flat	𝗣𝗘𝗜 𝟭 • Recommended for Wall Only
Breaking Strength	ISO 10545-4	R>35 N/mm², S>1600N	𝗜𝗦𝗢 • Tiles with thickness ≥ 7.5 mm: Breaking strength must be ≥ 1300 N
DCOF	ANSI A326.3	> 0.42 Wet - Flats

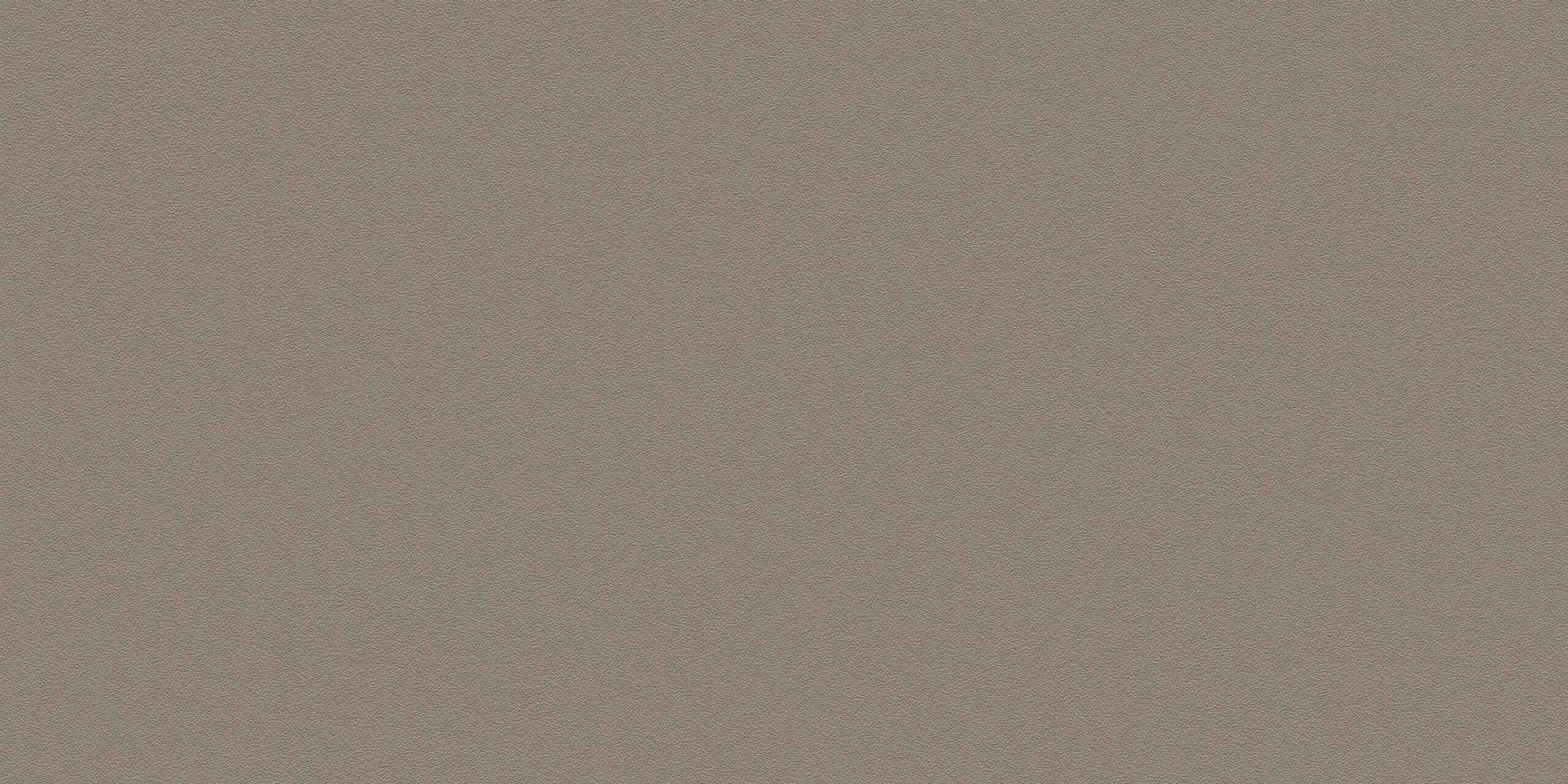

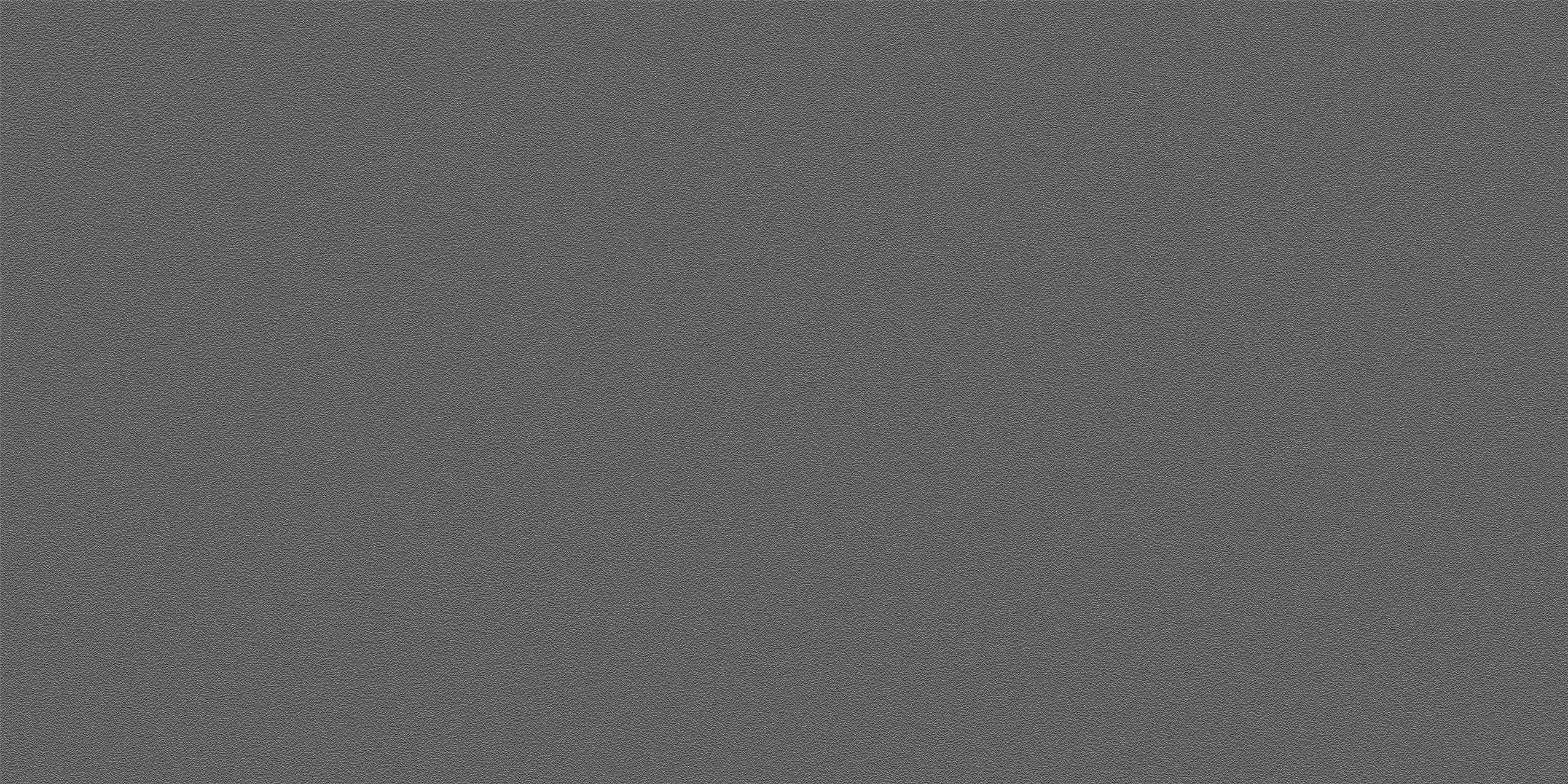

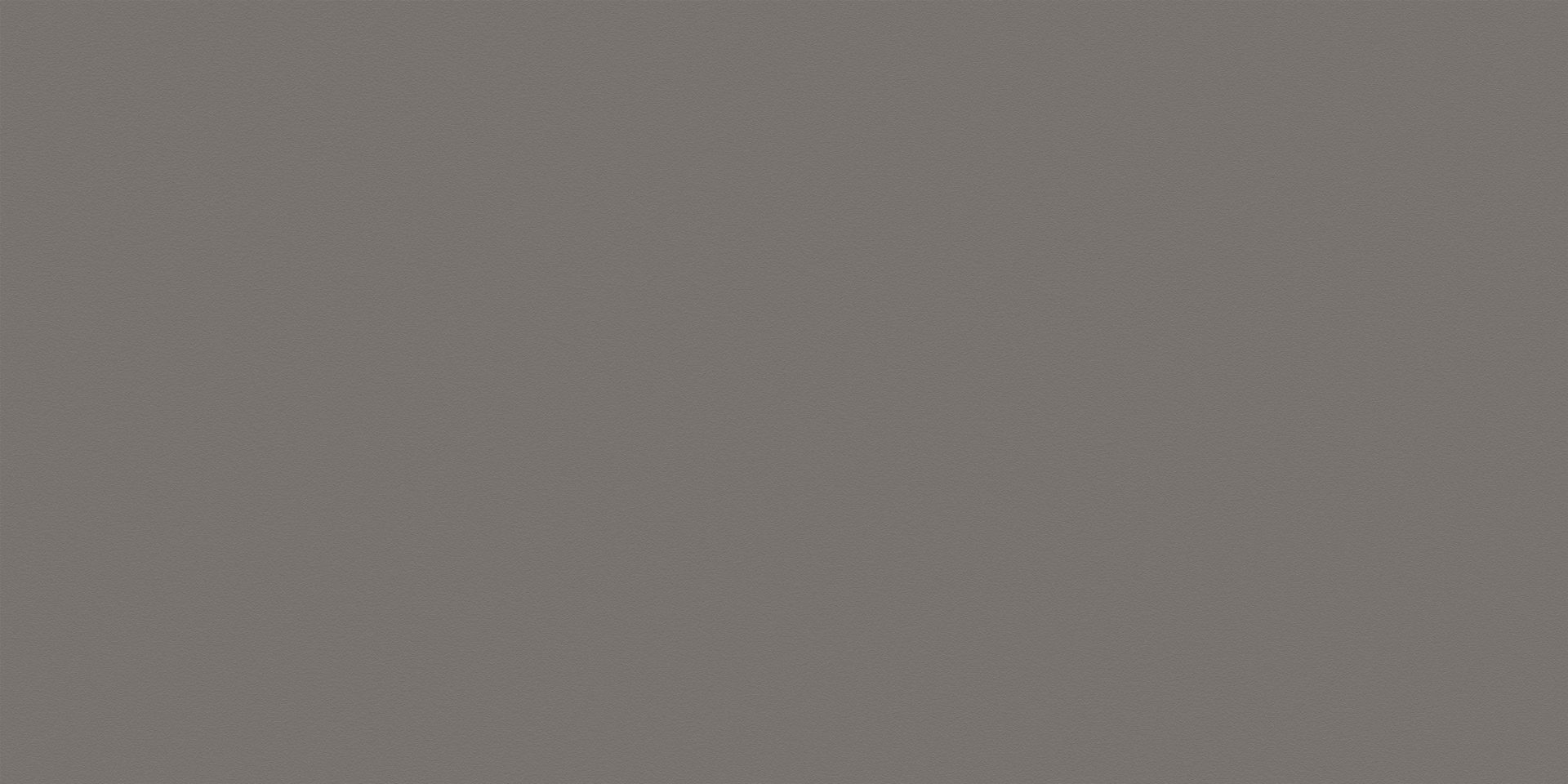

	ANSI A326.3	> 0.42 Wet - Solids

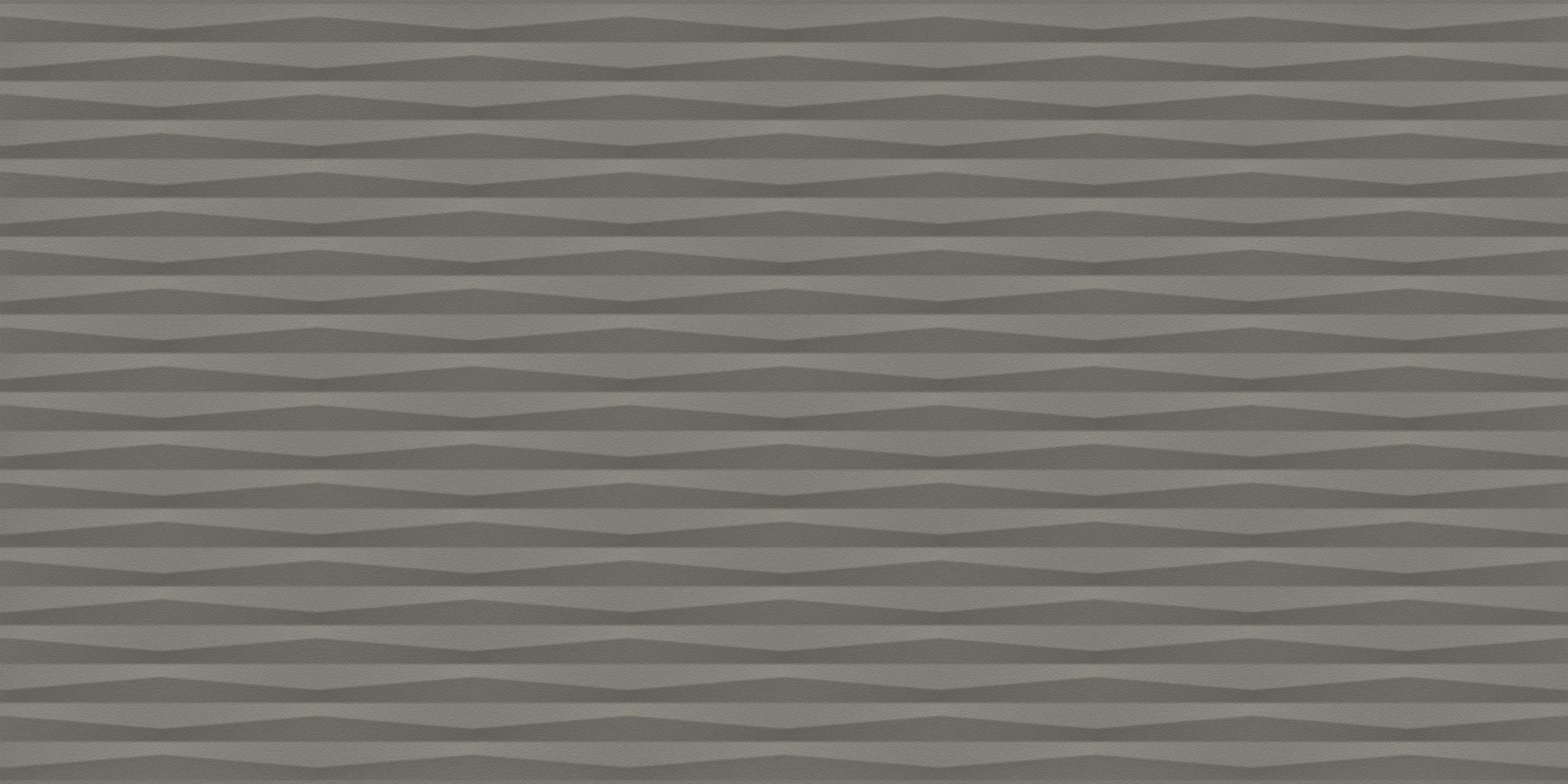

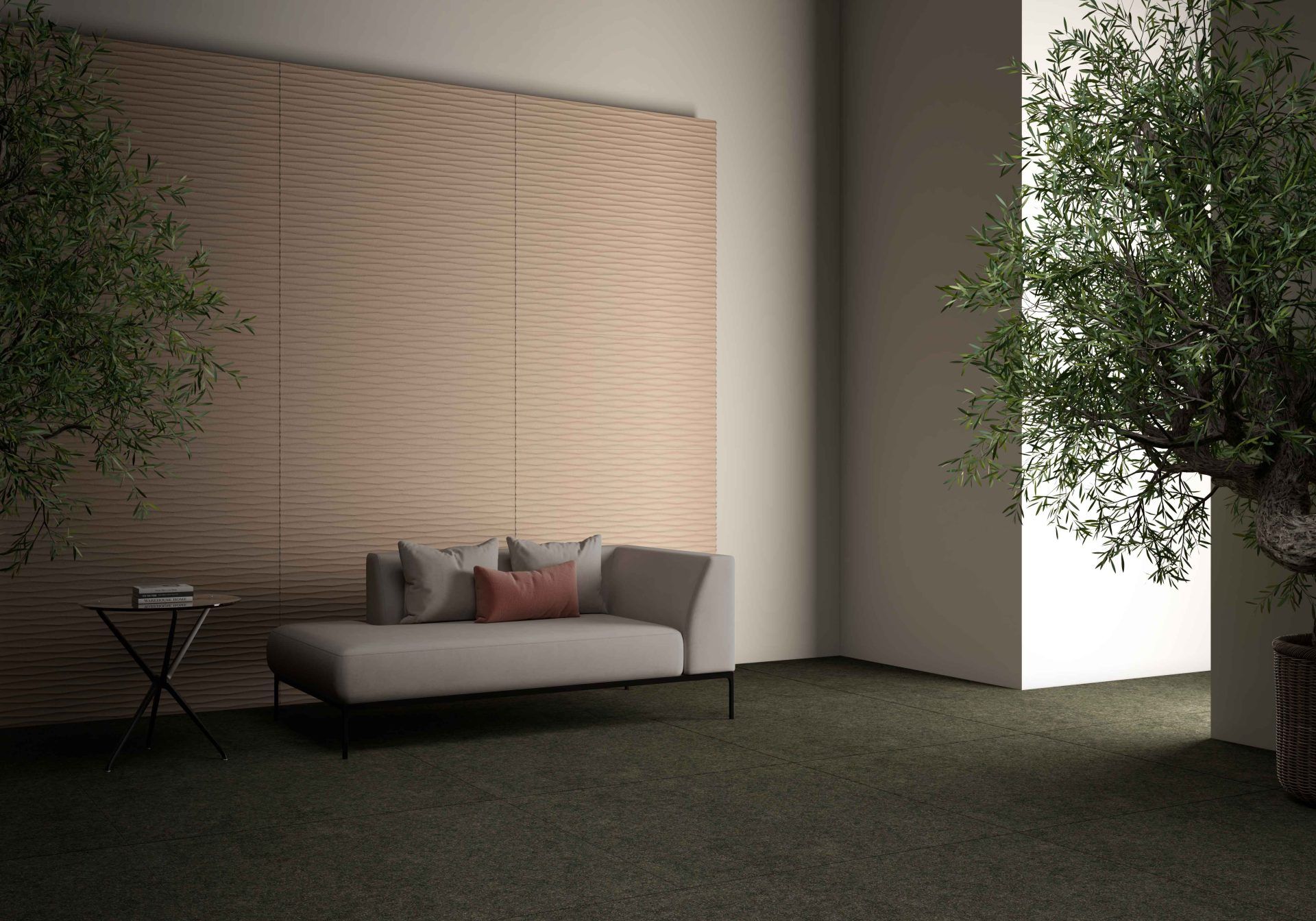

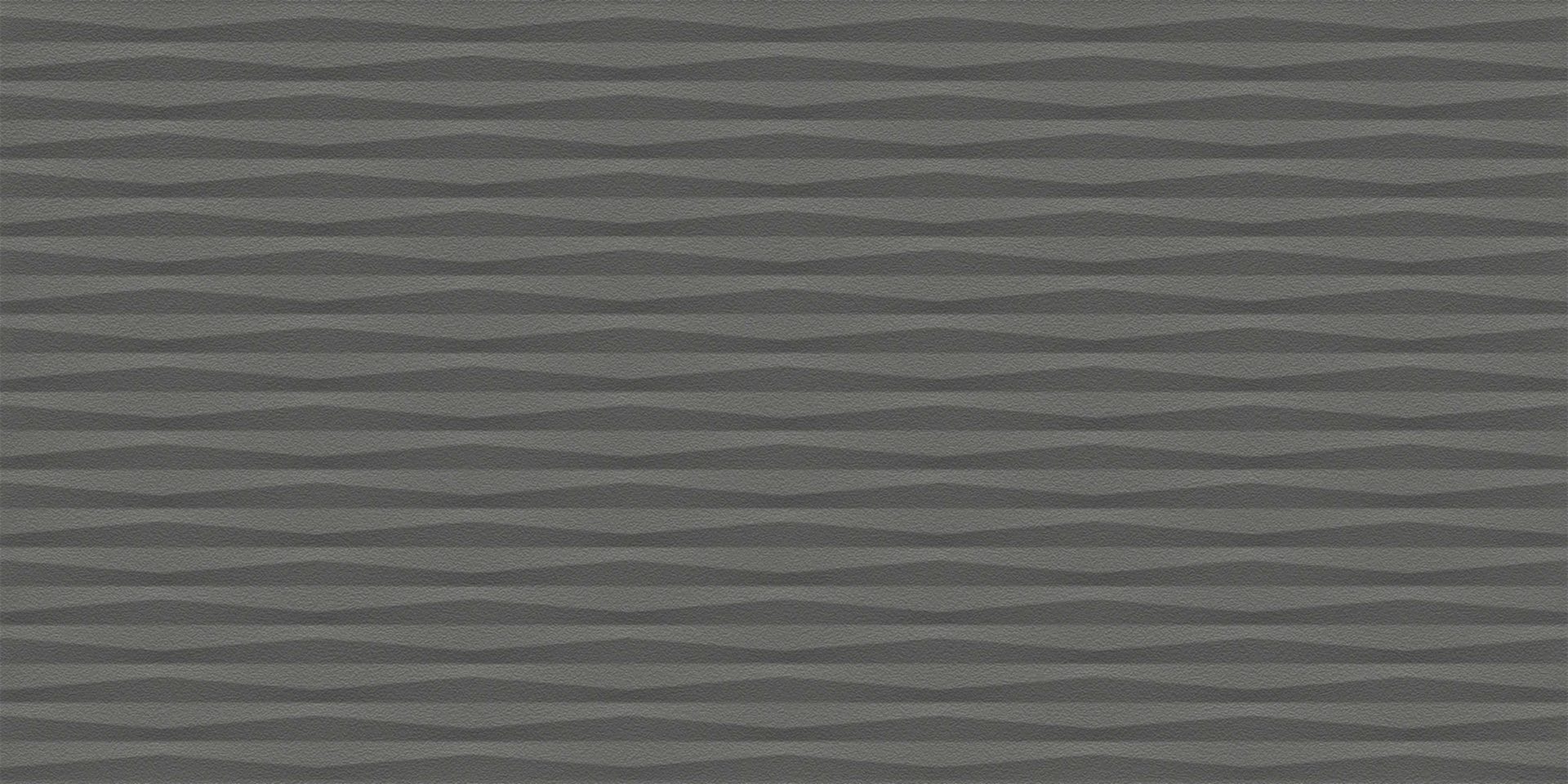

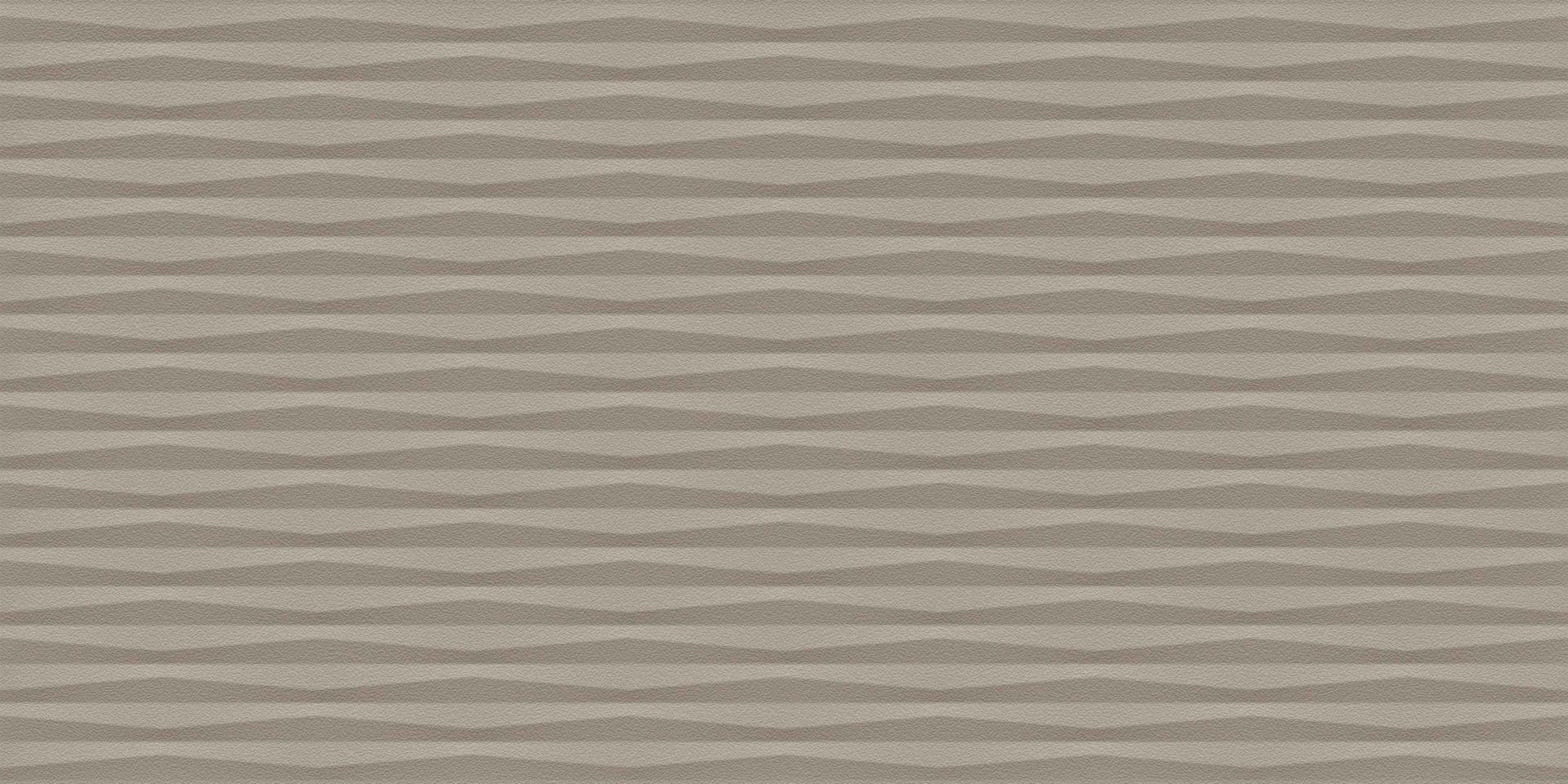

	ANSI A326.3	Not Applicable - Wall Use Only - Dunes

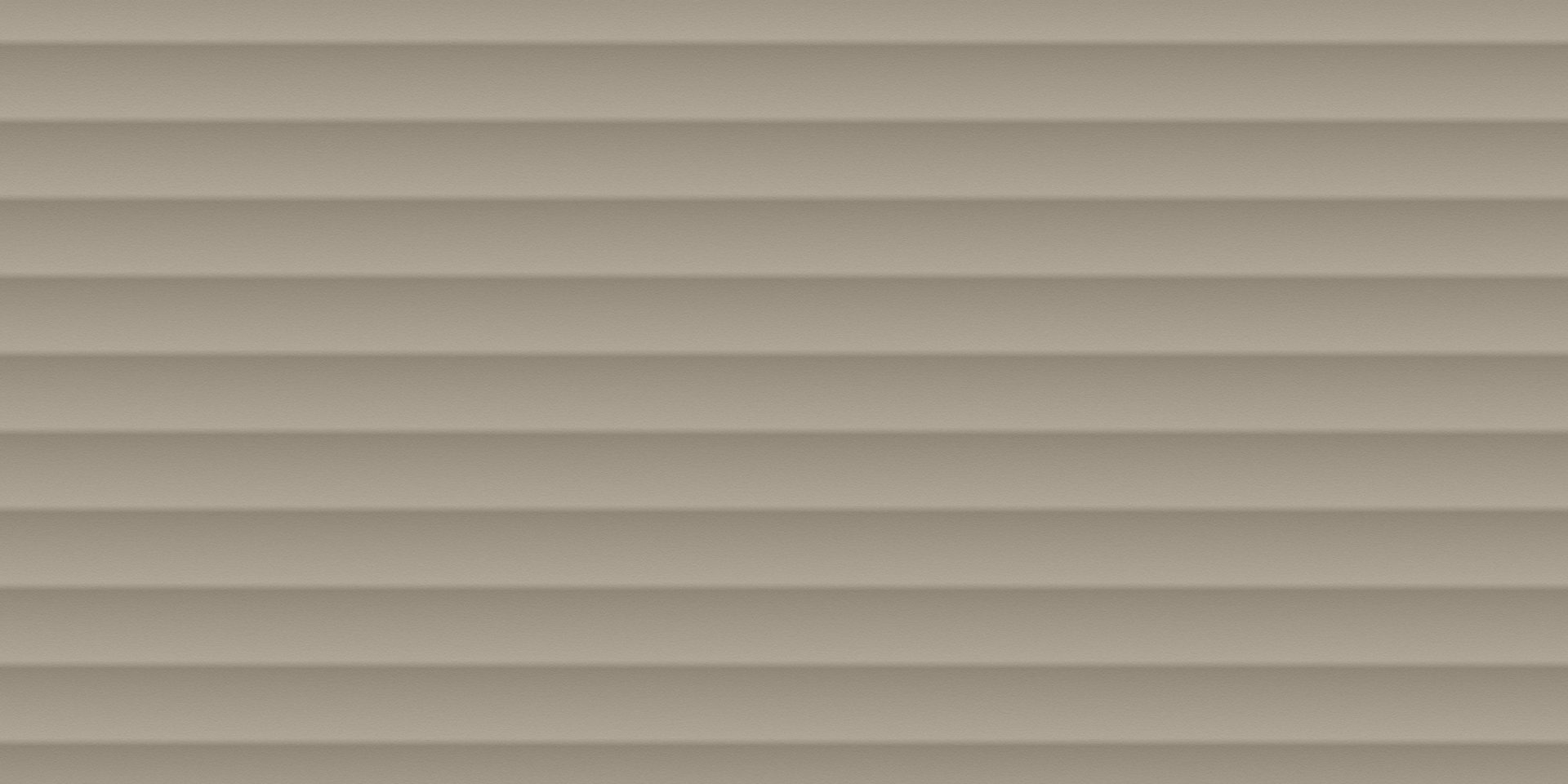

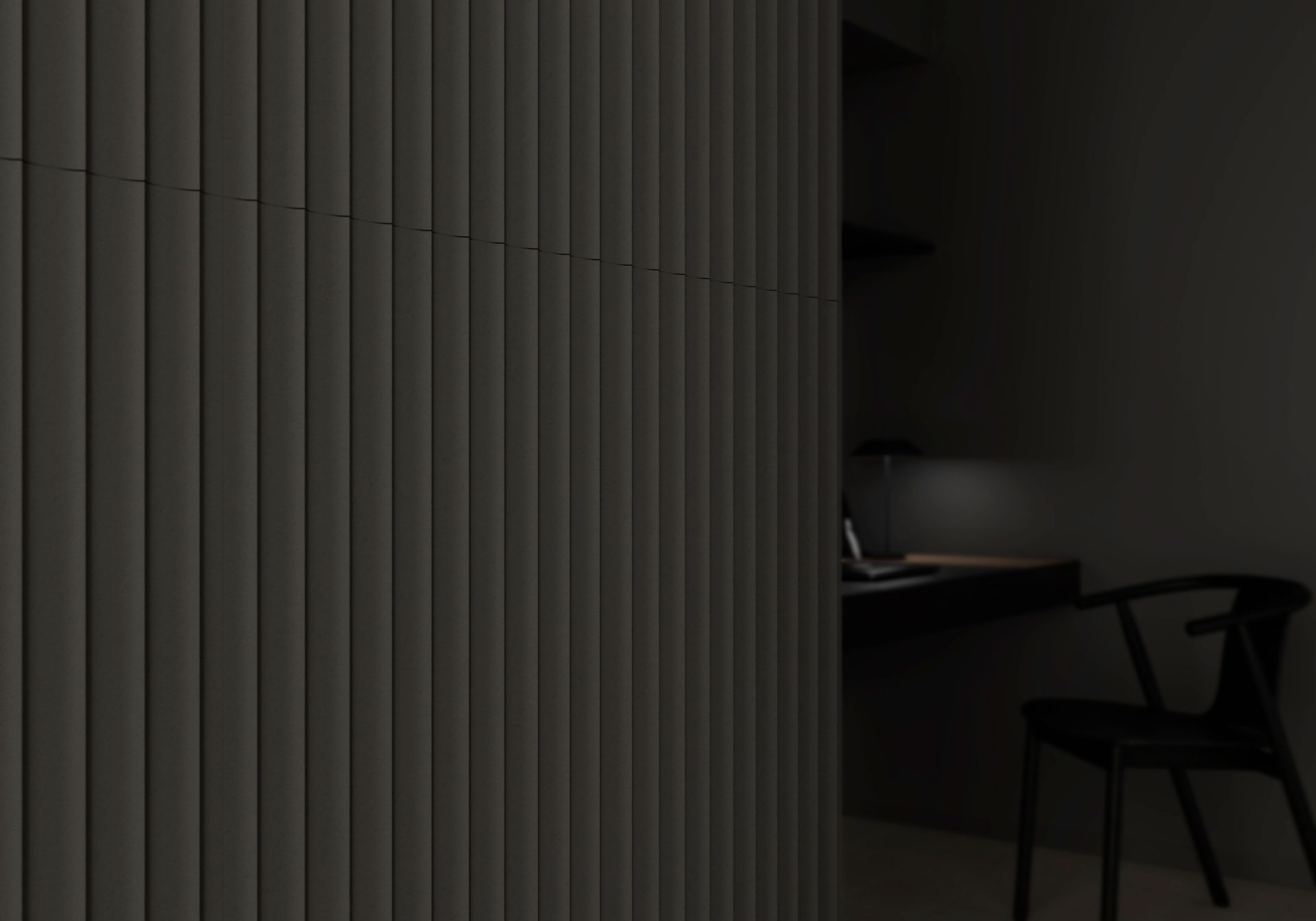

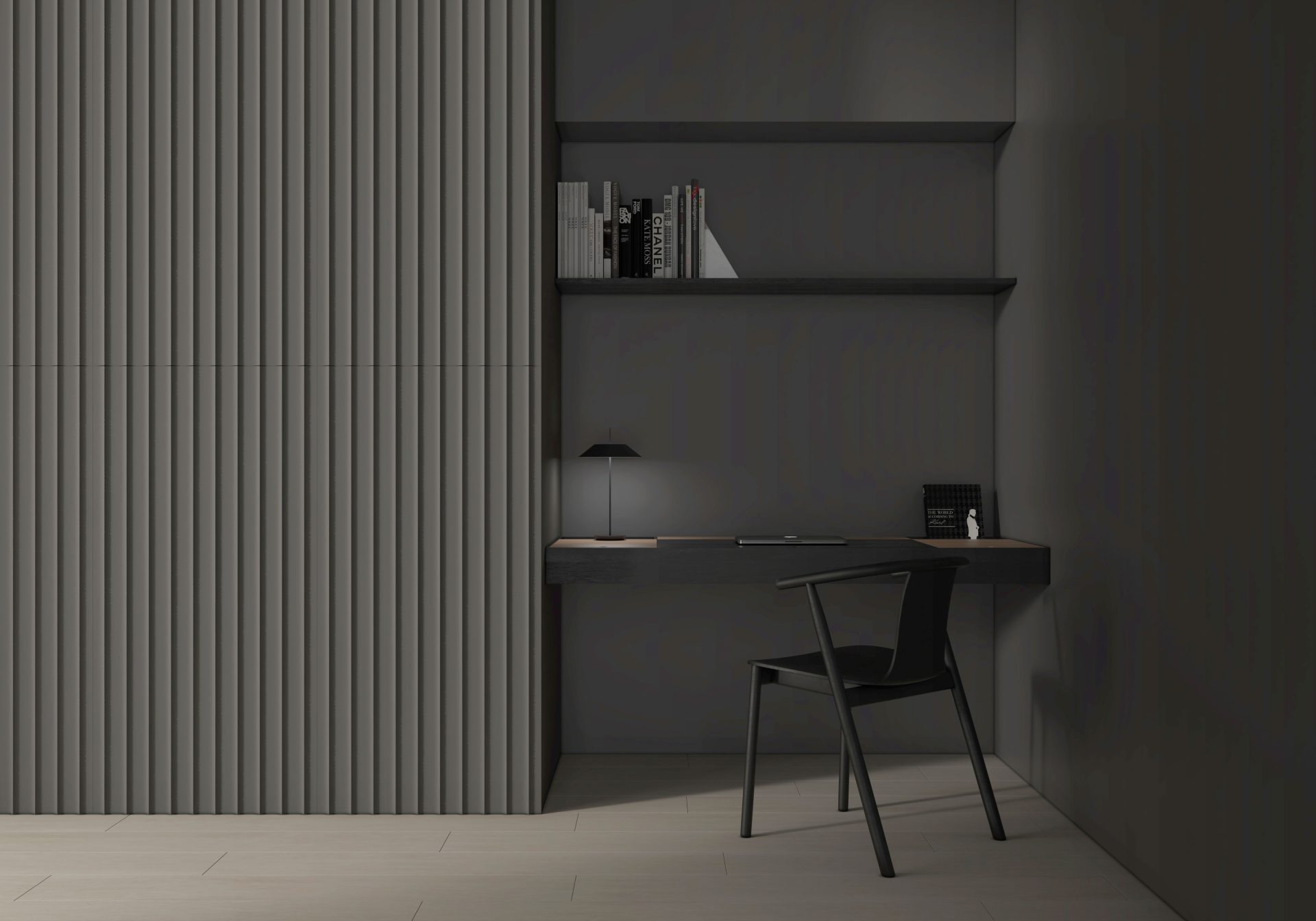

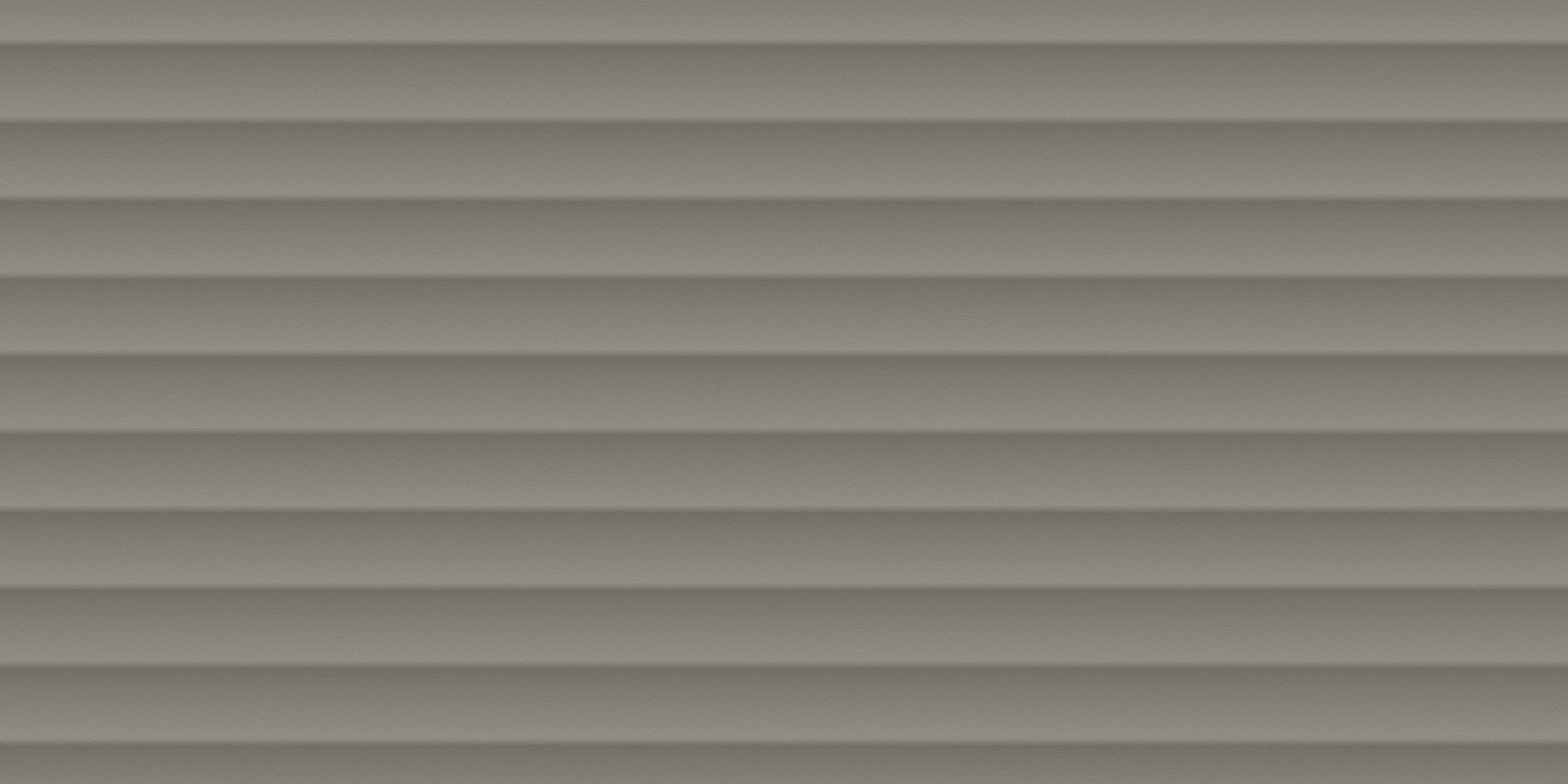

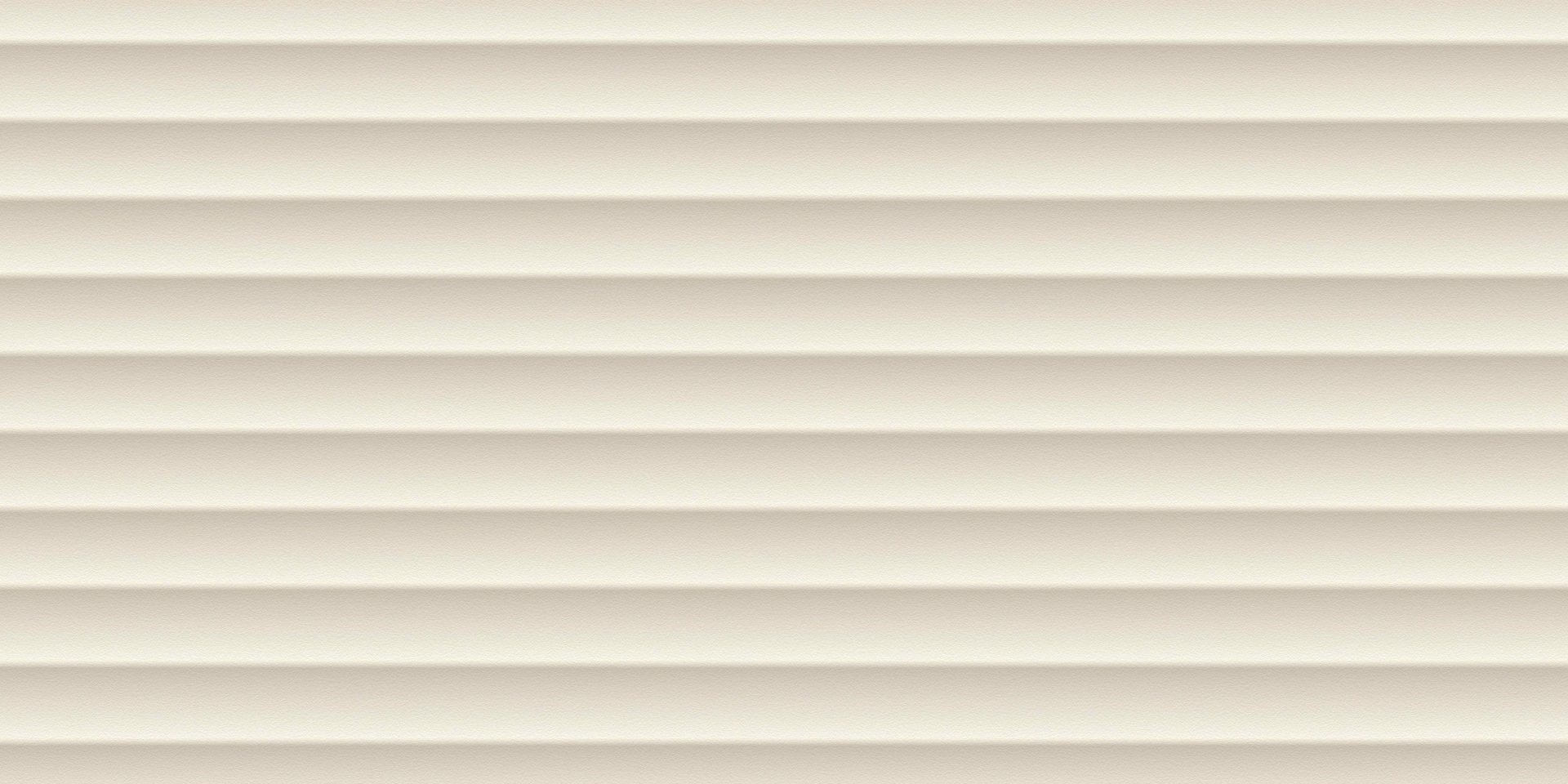

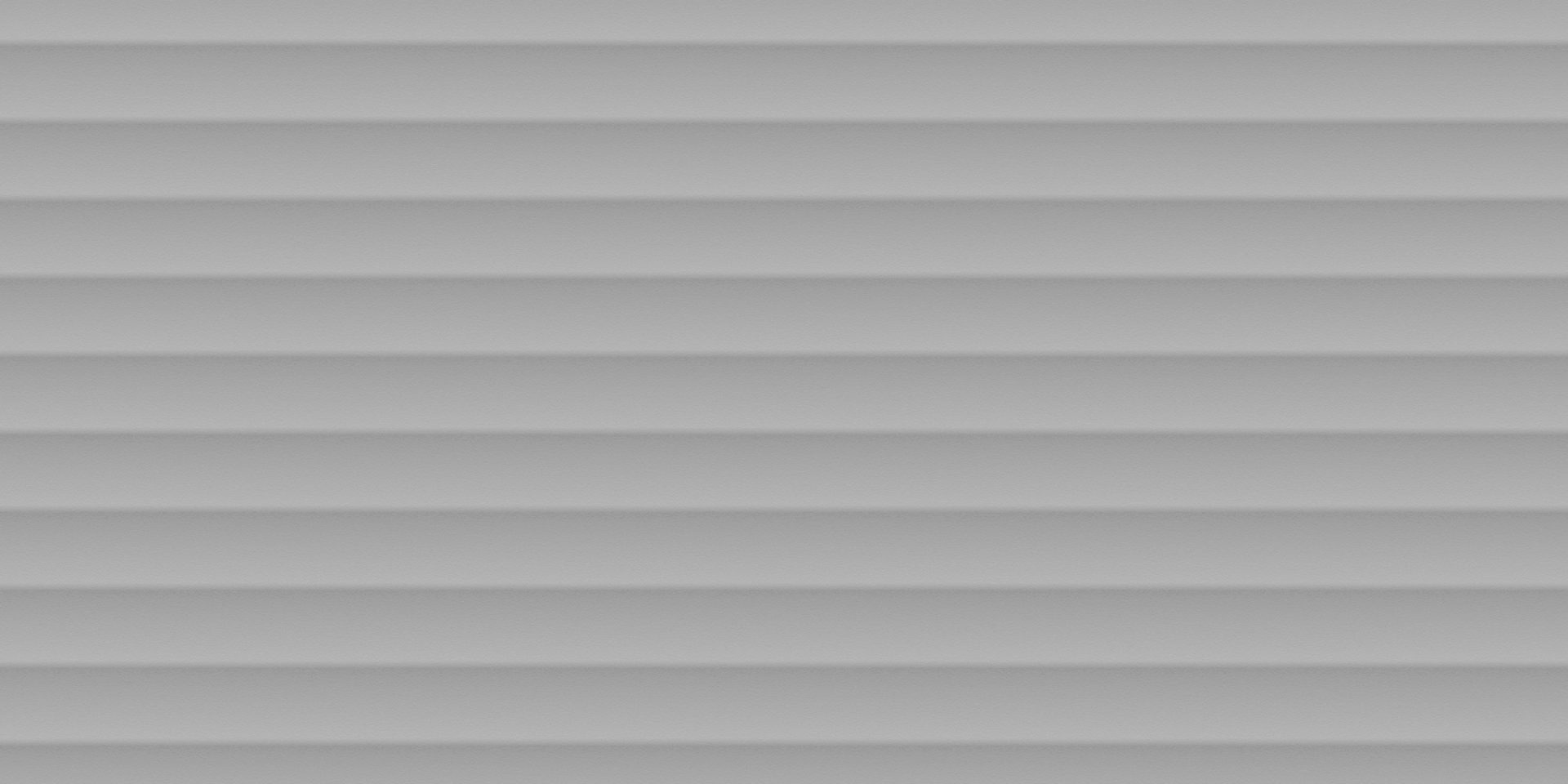

	ANSI A326.3	Not Applicable - Wall Use Only - Fluted

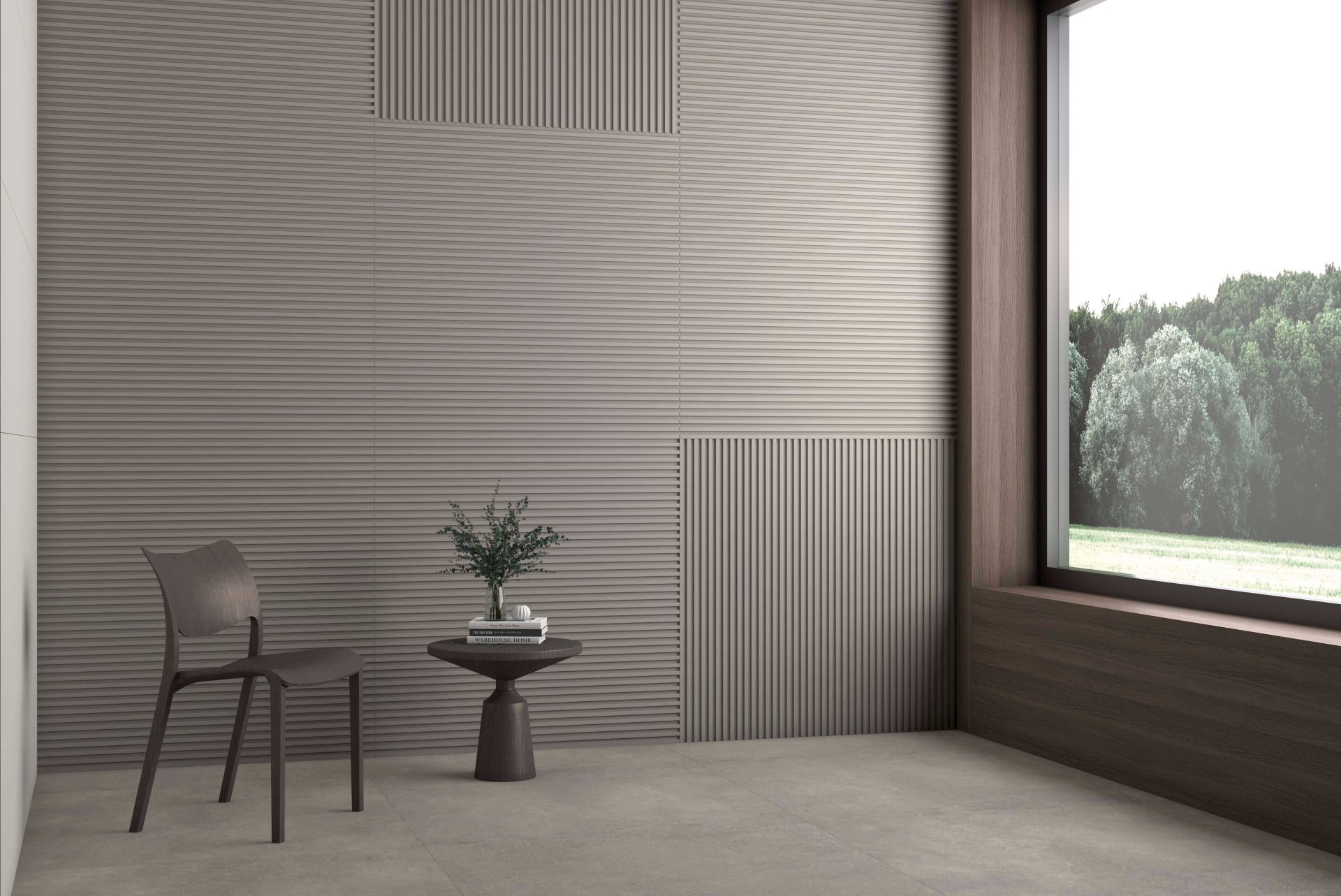

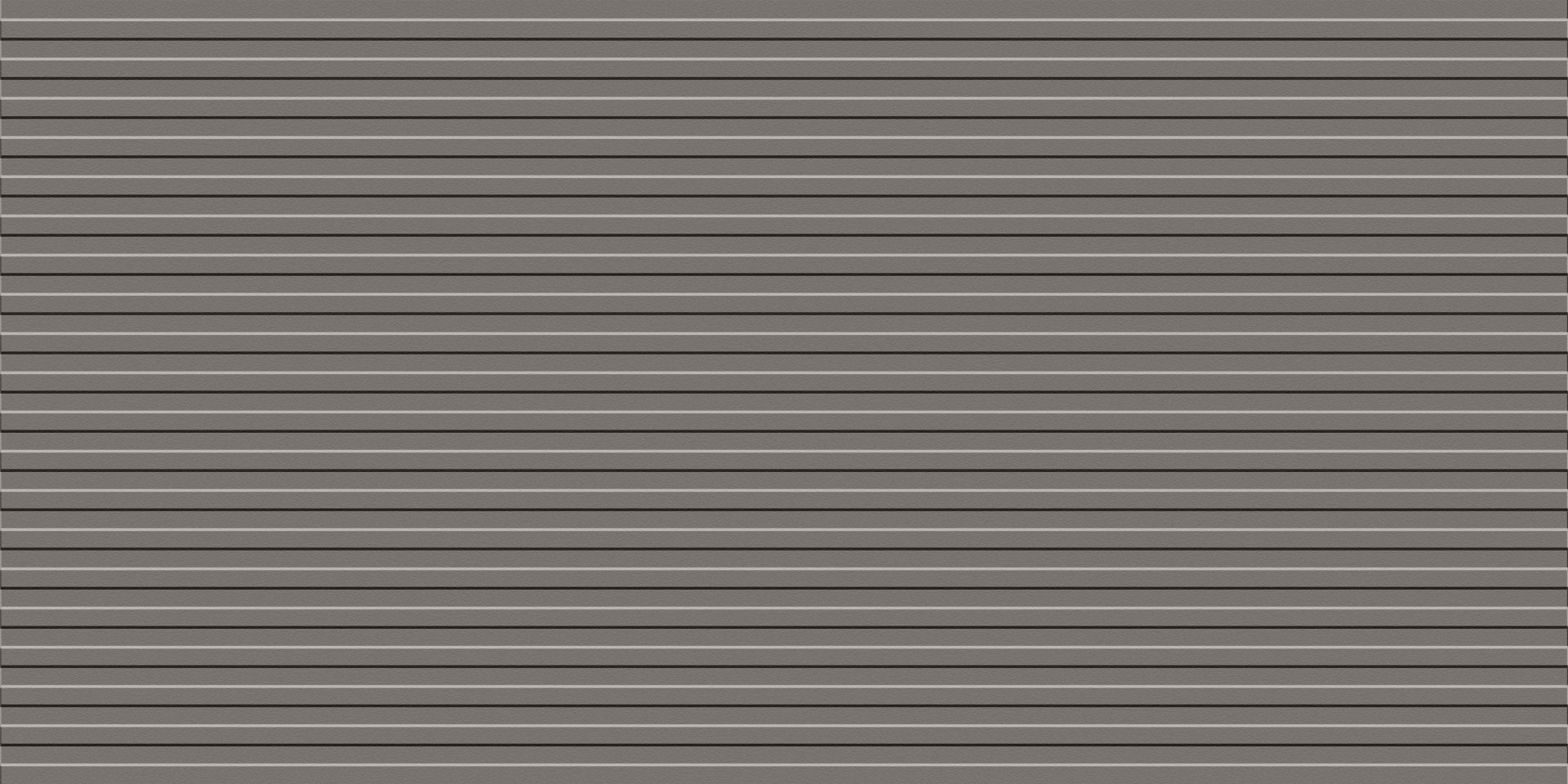

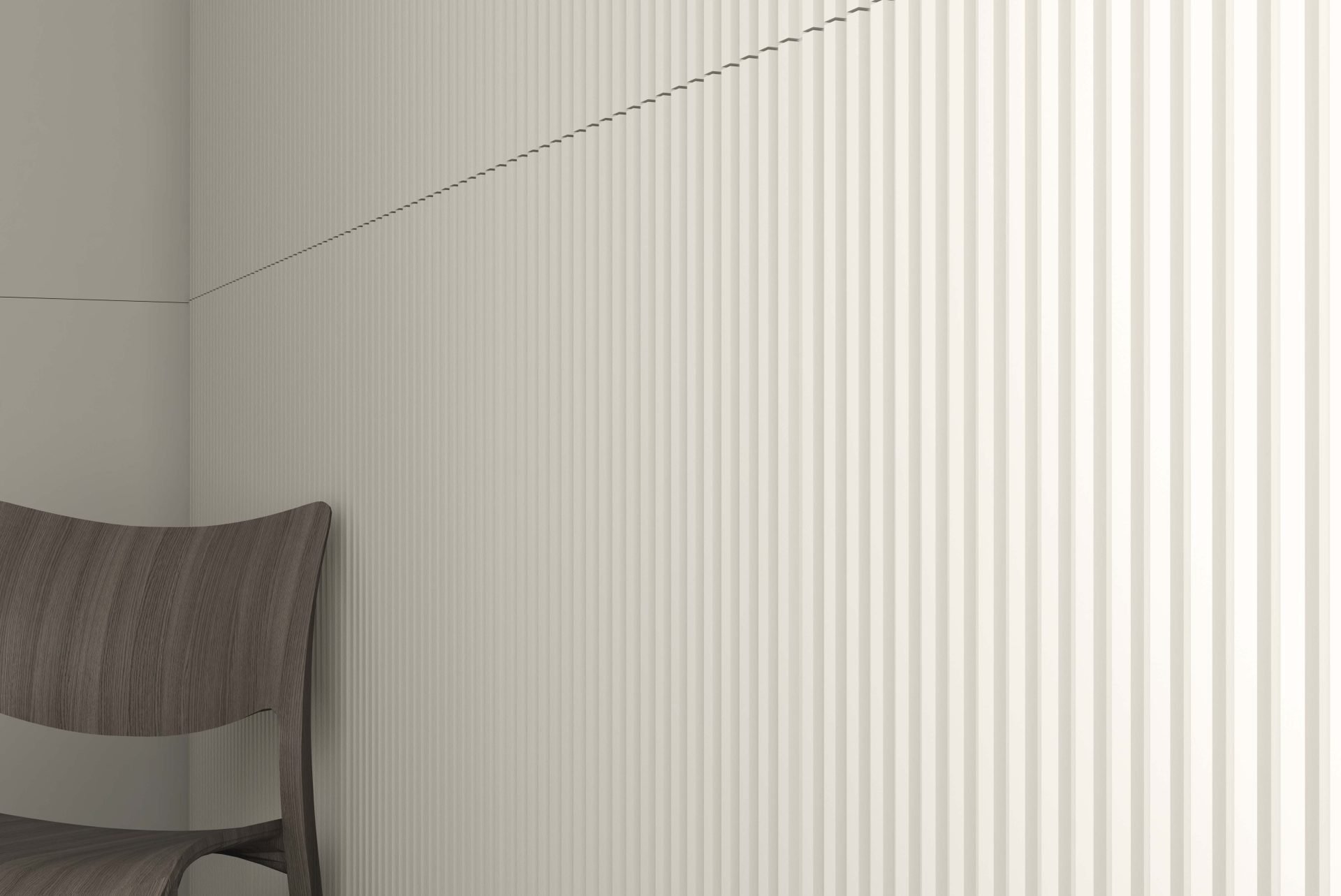

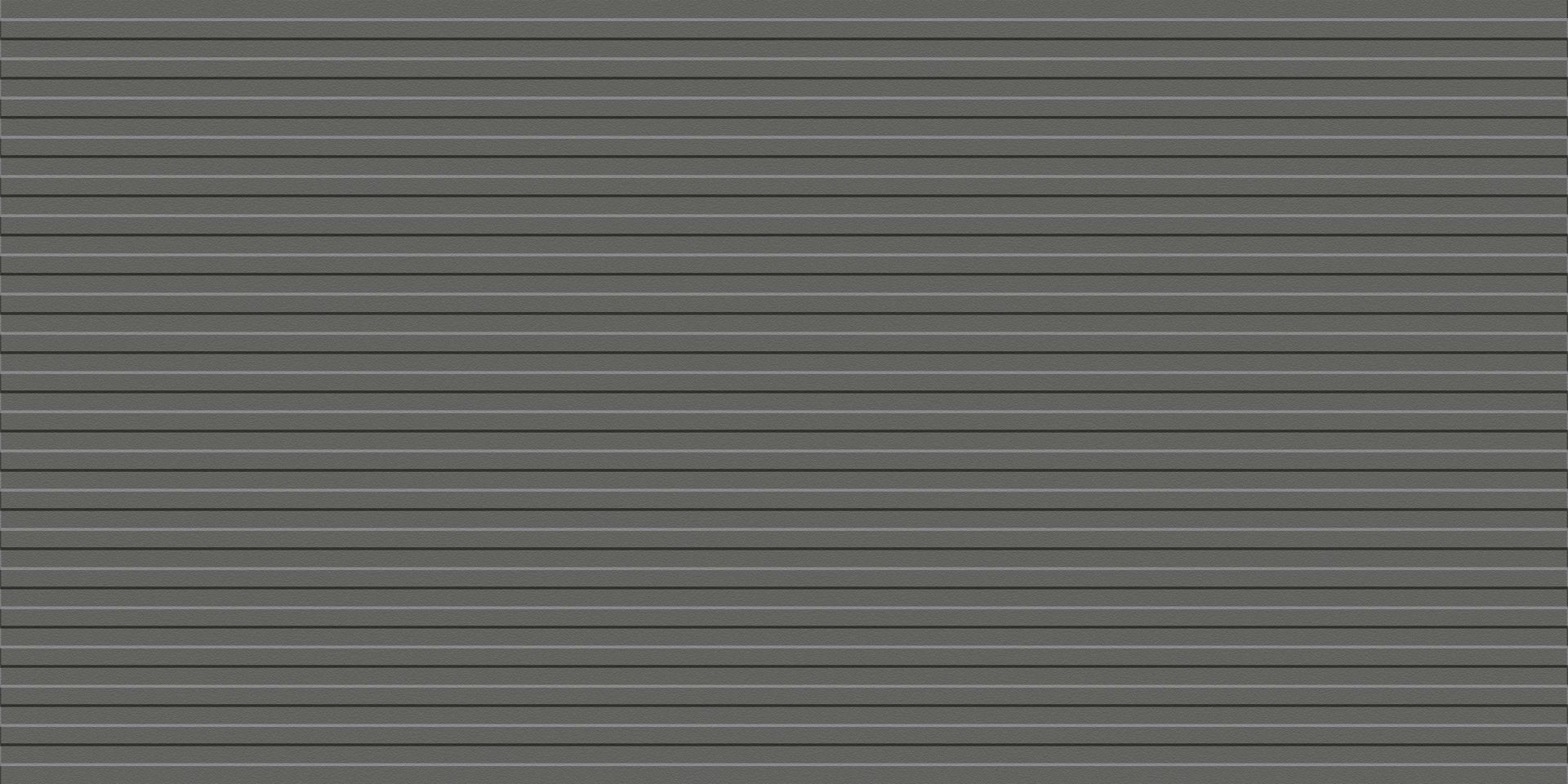

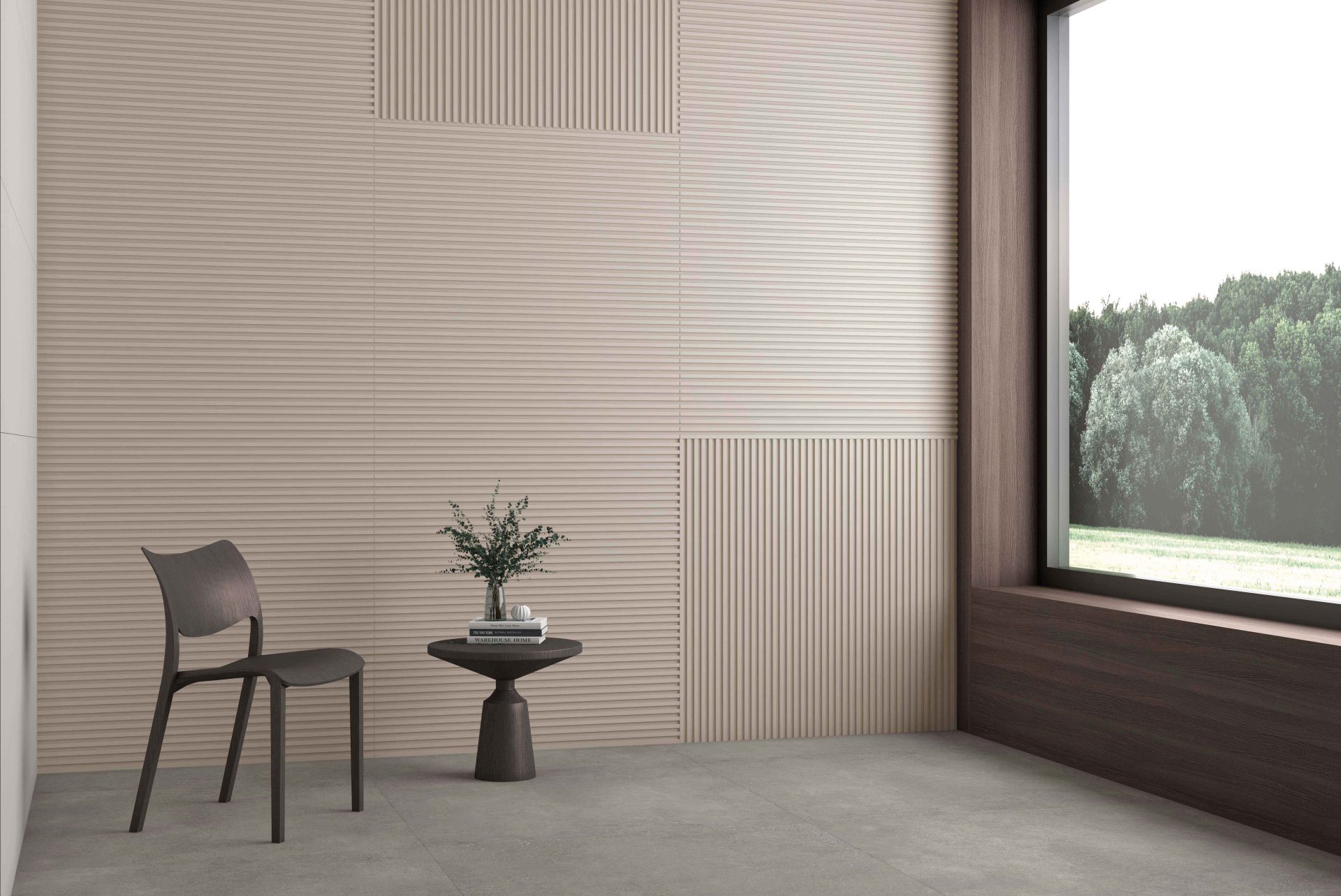

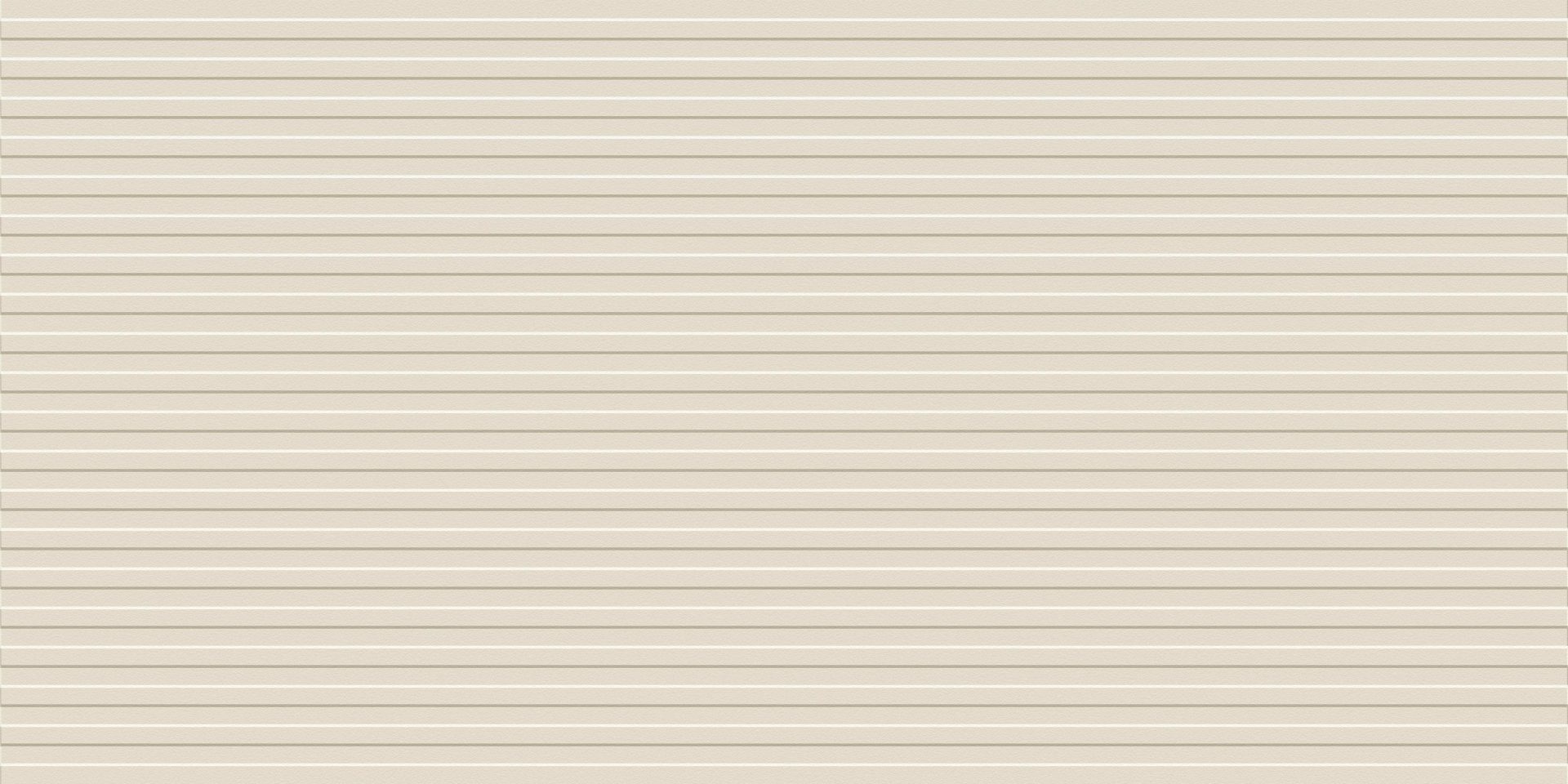

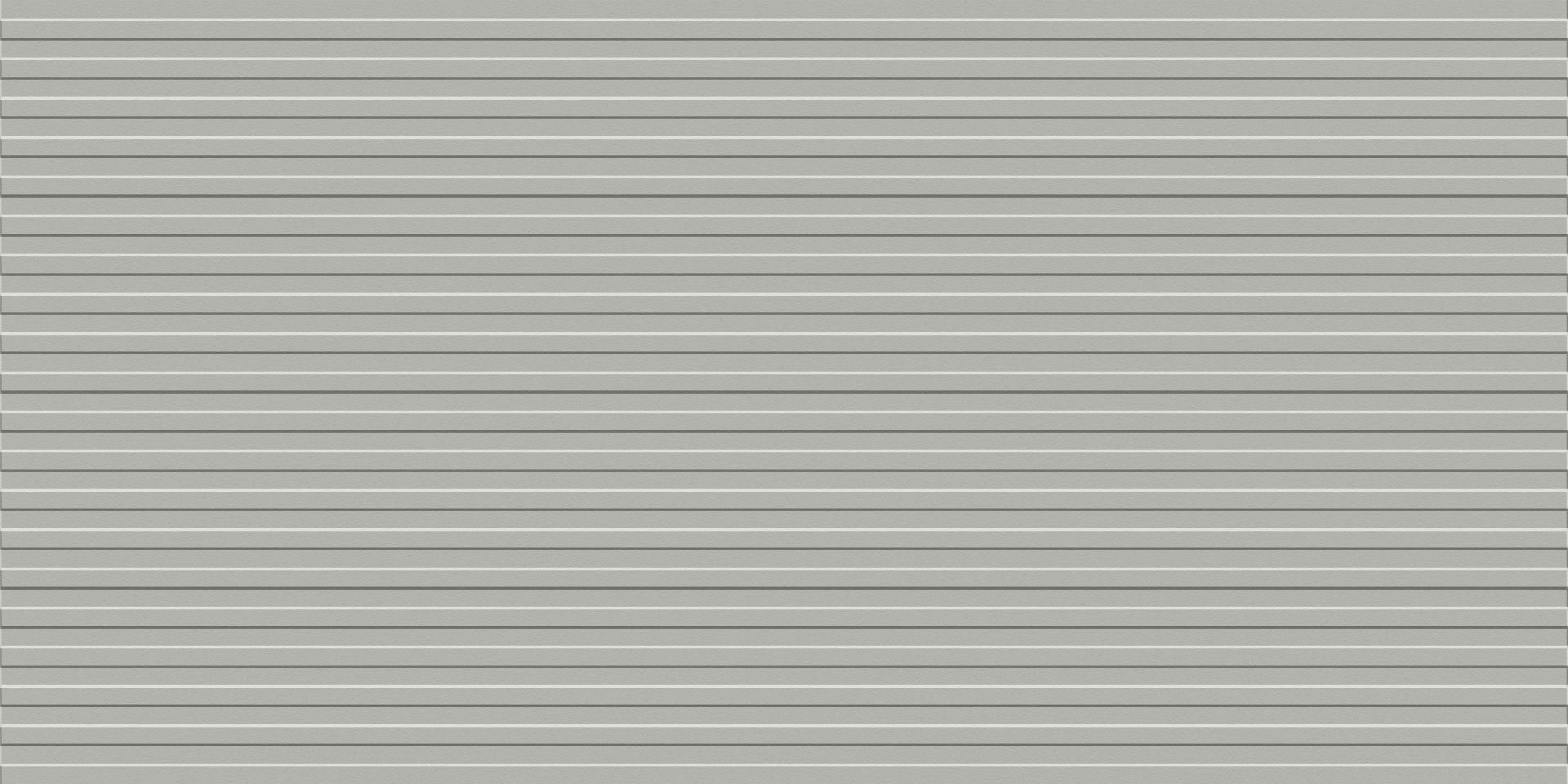

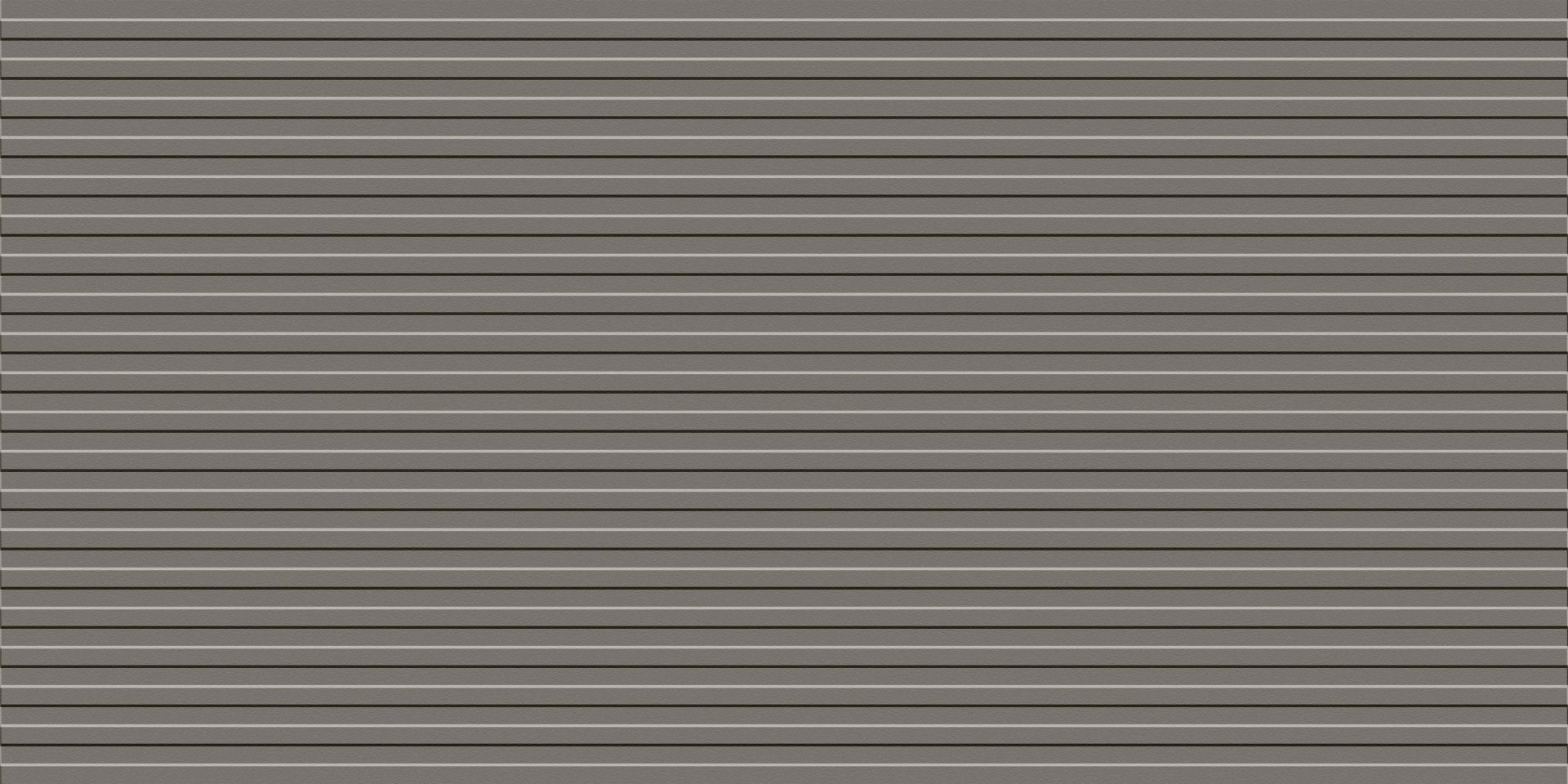

	ANSI A326.3	Not Applicable - Wall Use Only - Slatted

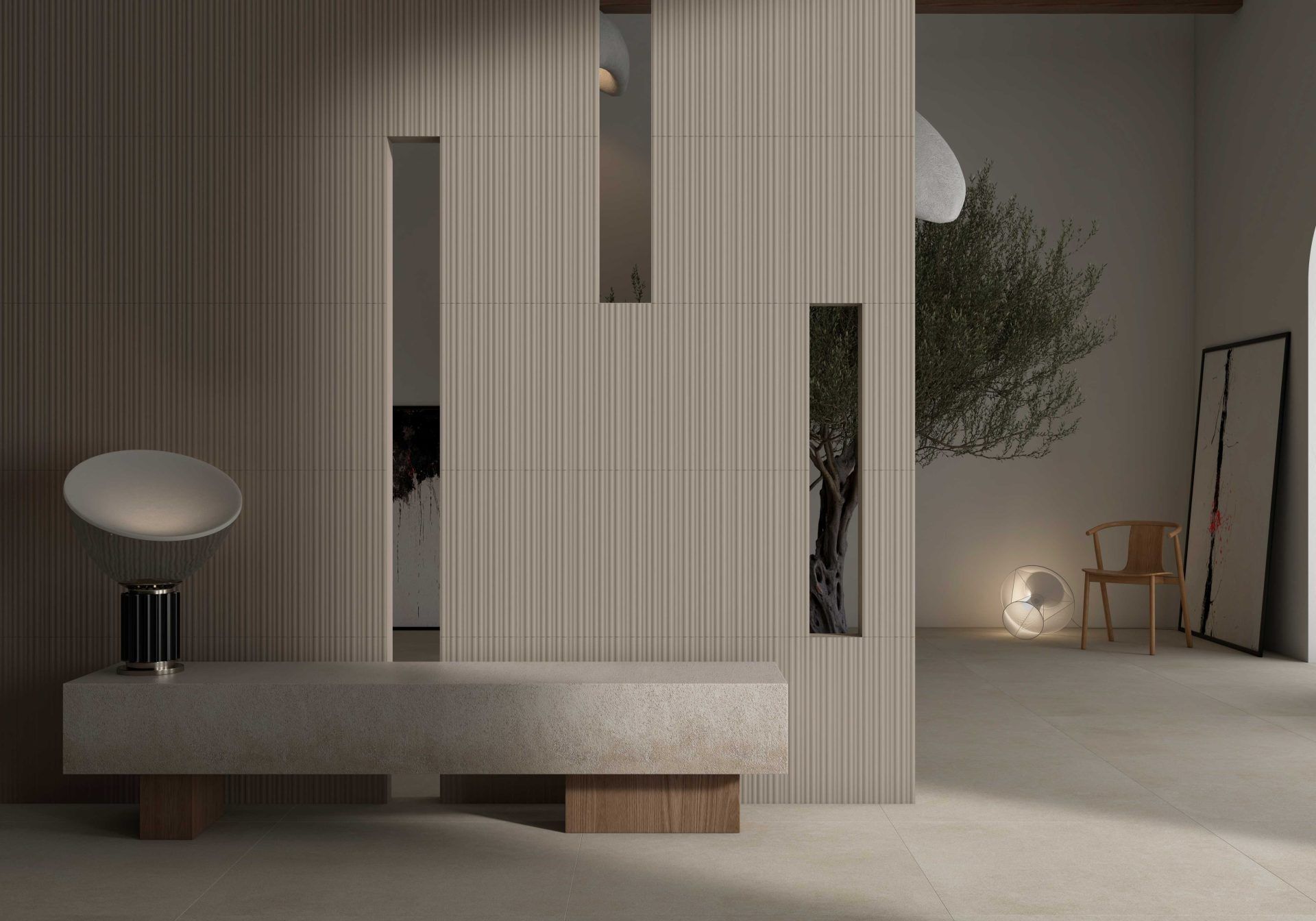

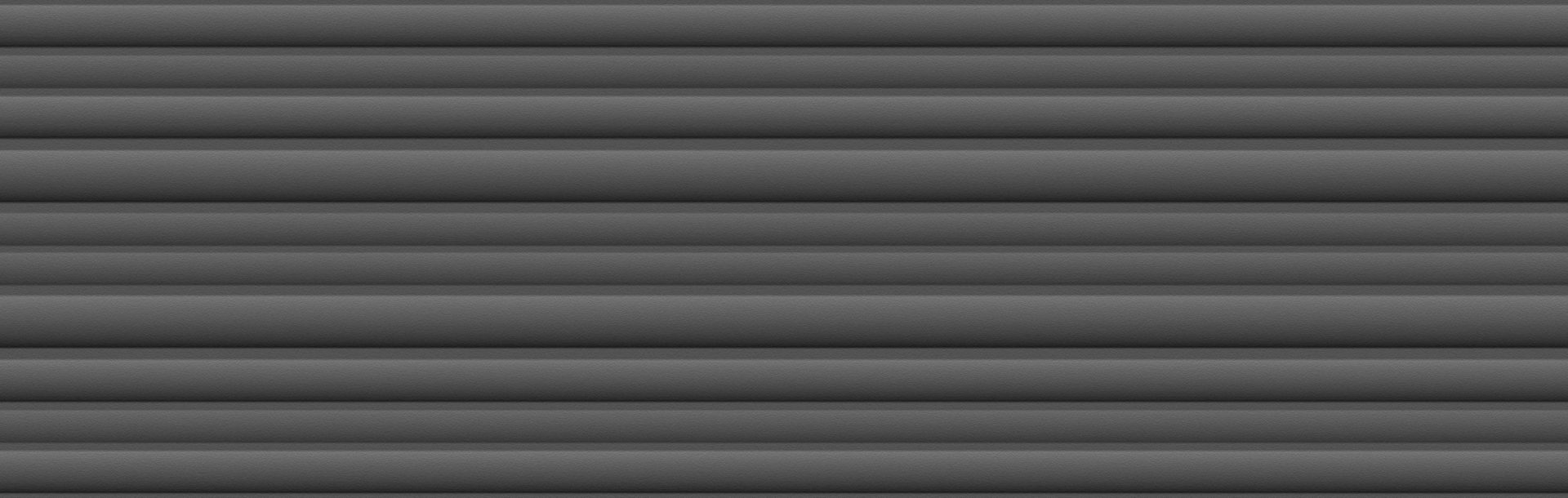

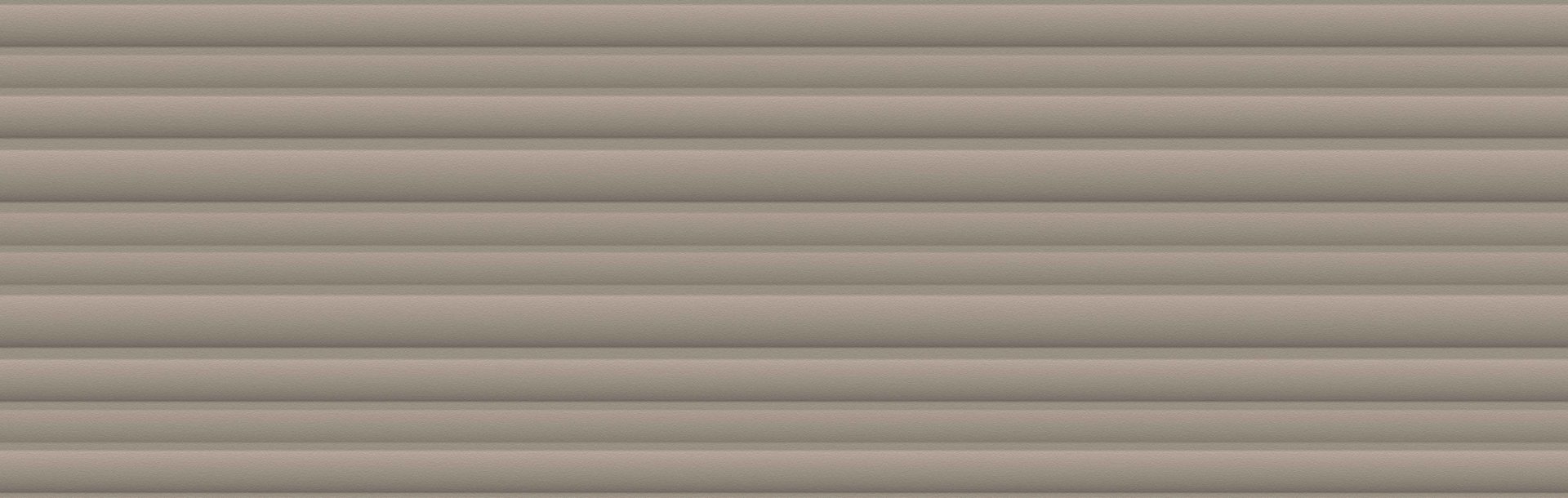

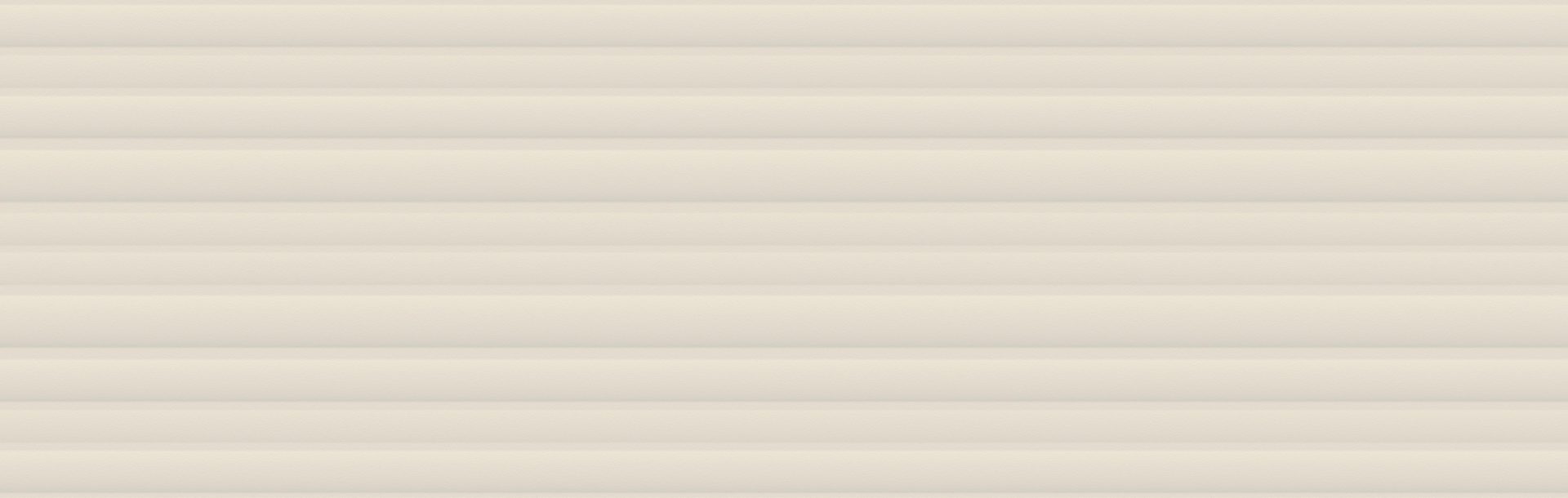

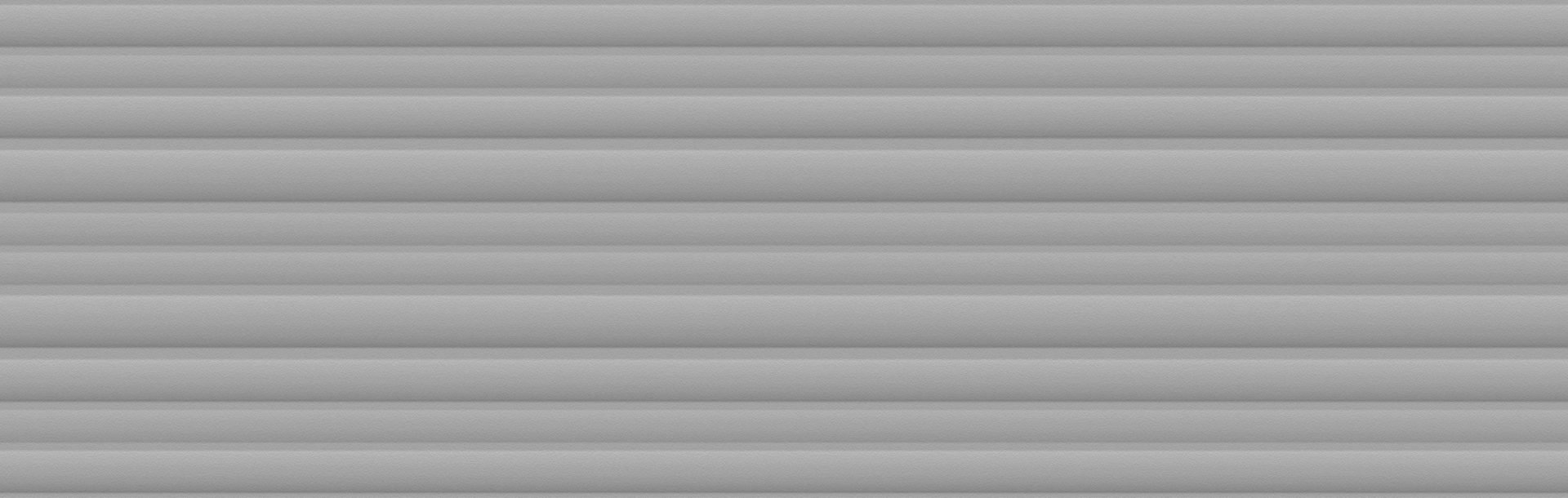

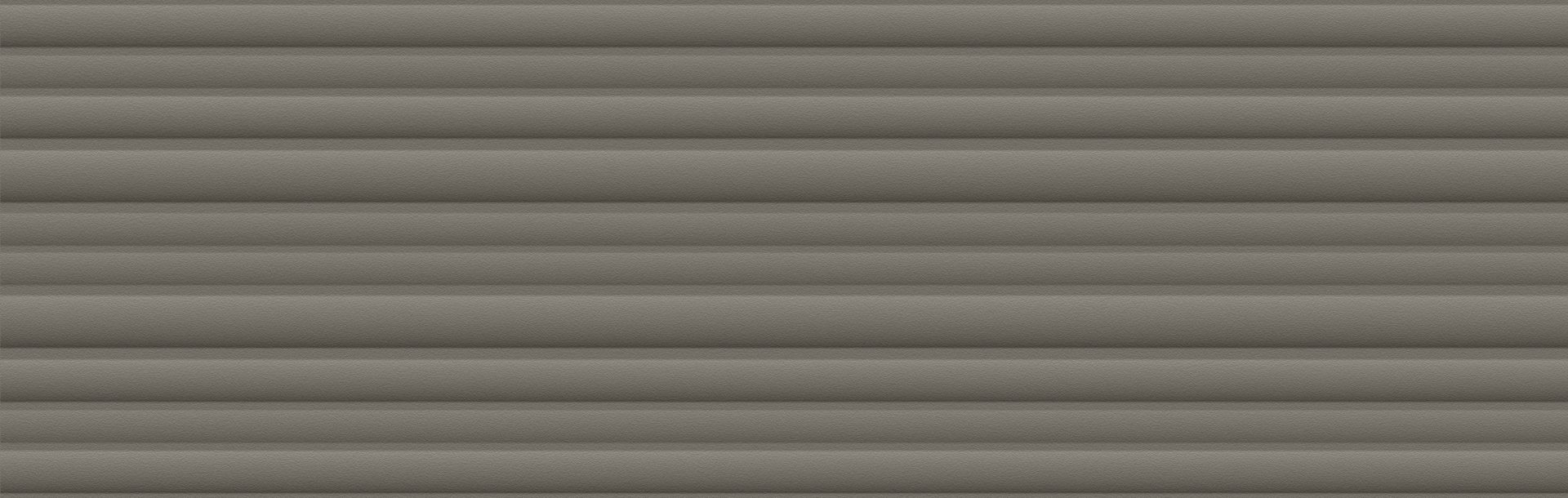

	ANSI A326.3	Not Applicable - Wall Use Only - Ripple

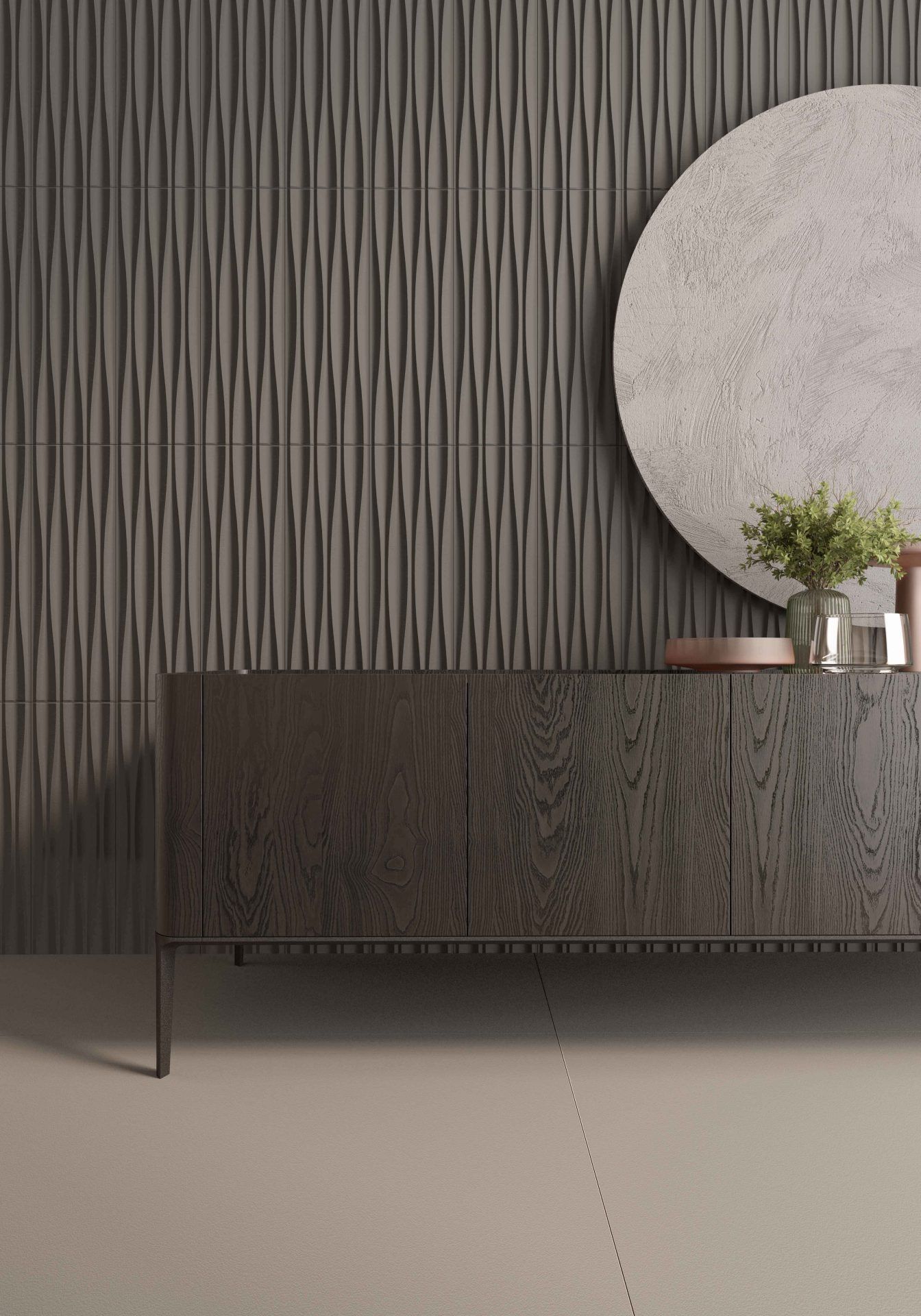

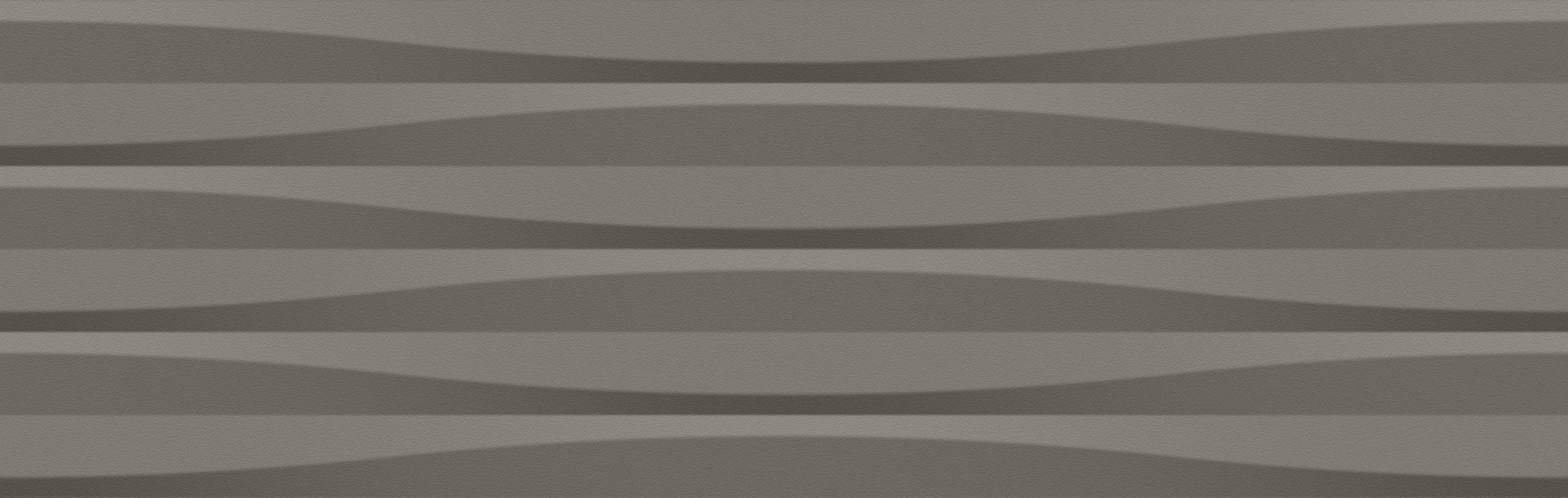

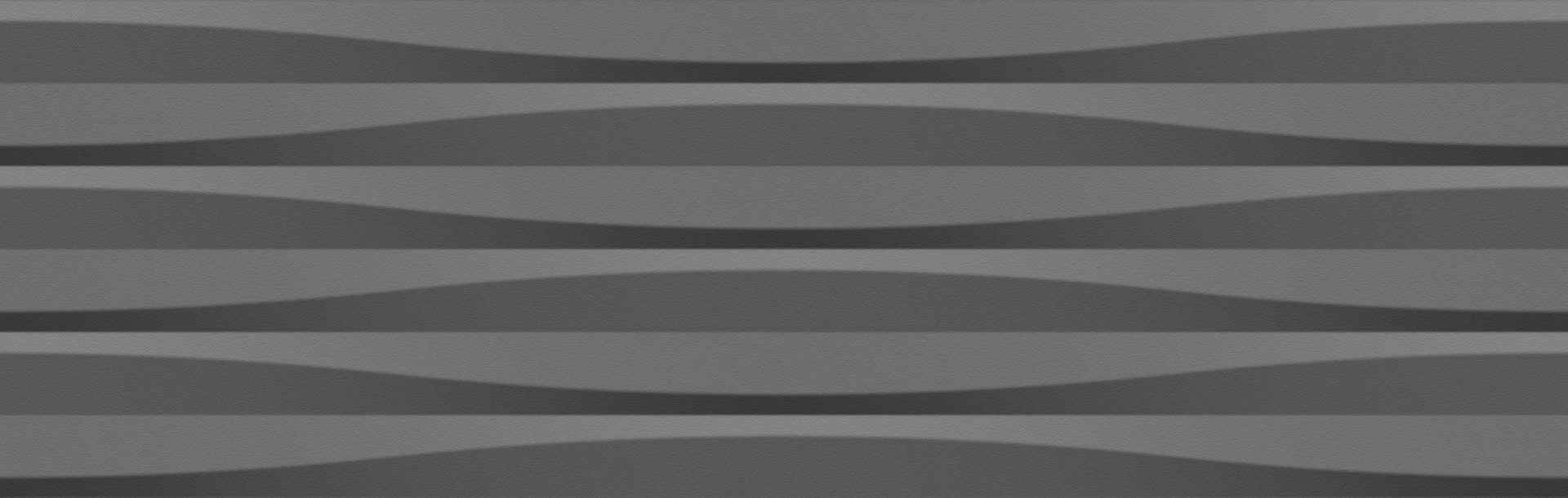

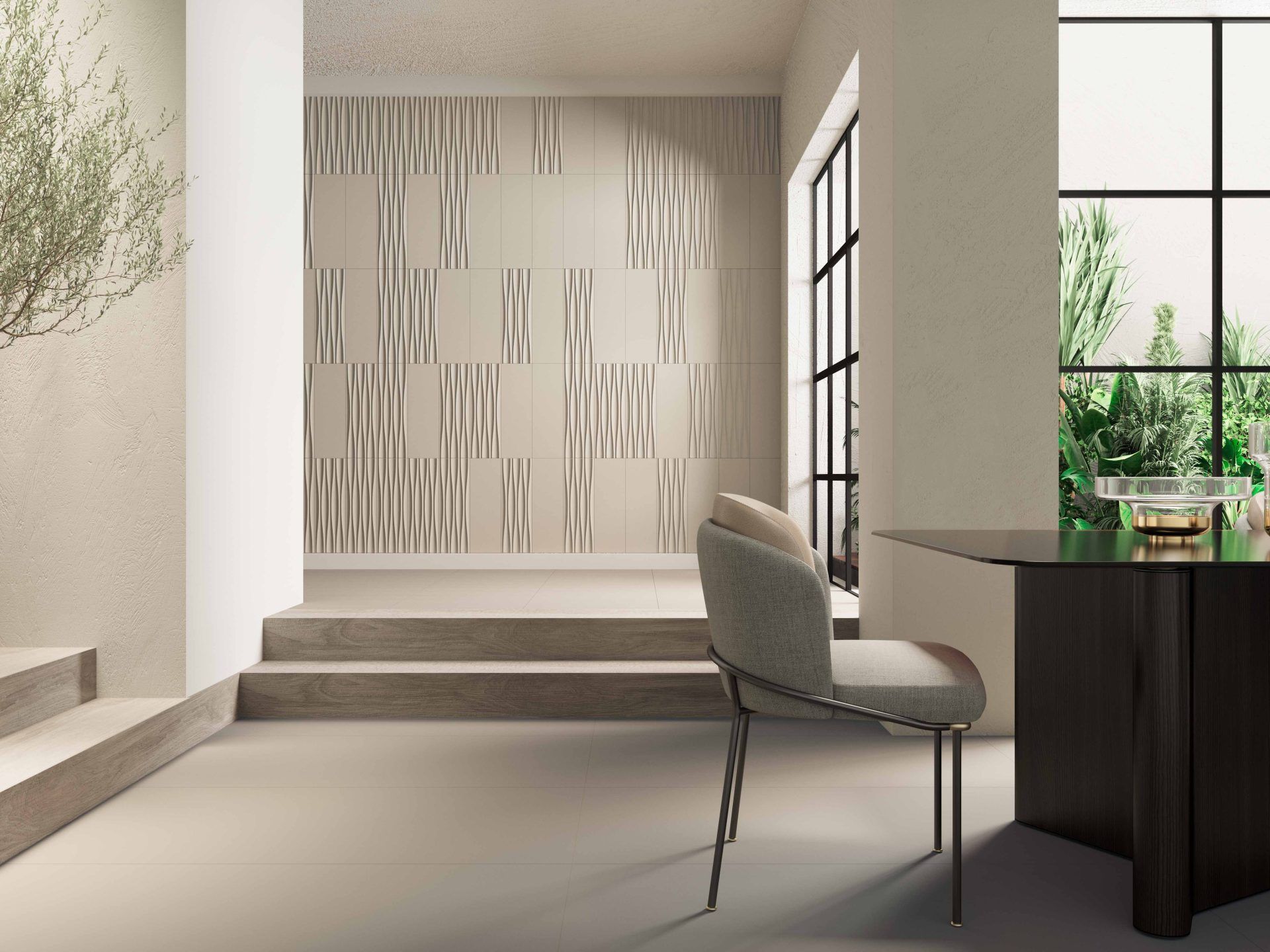

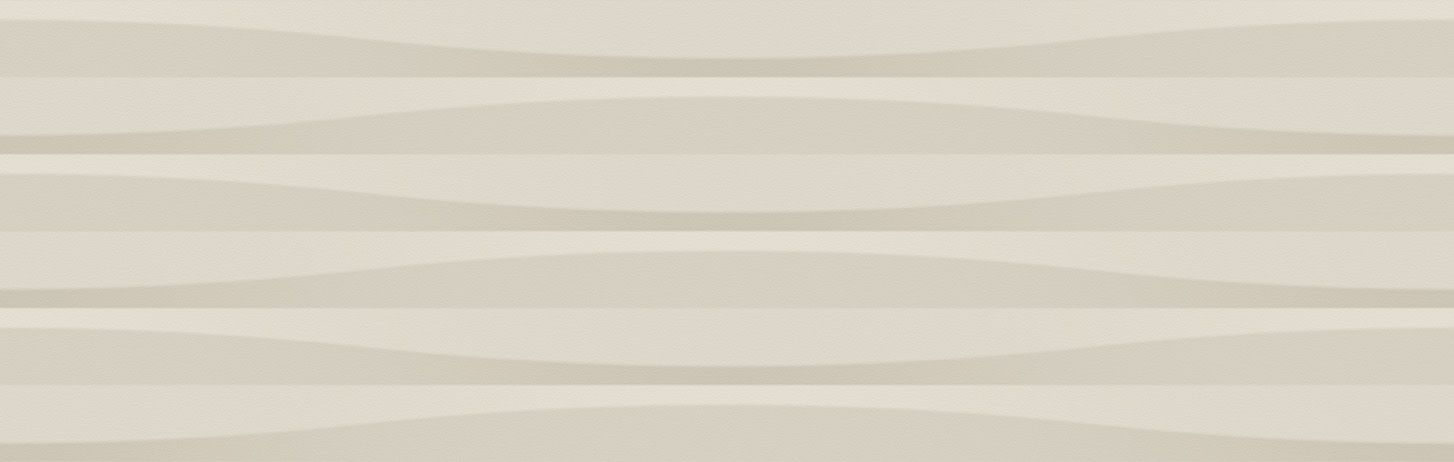

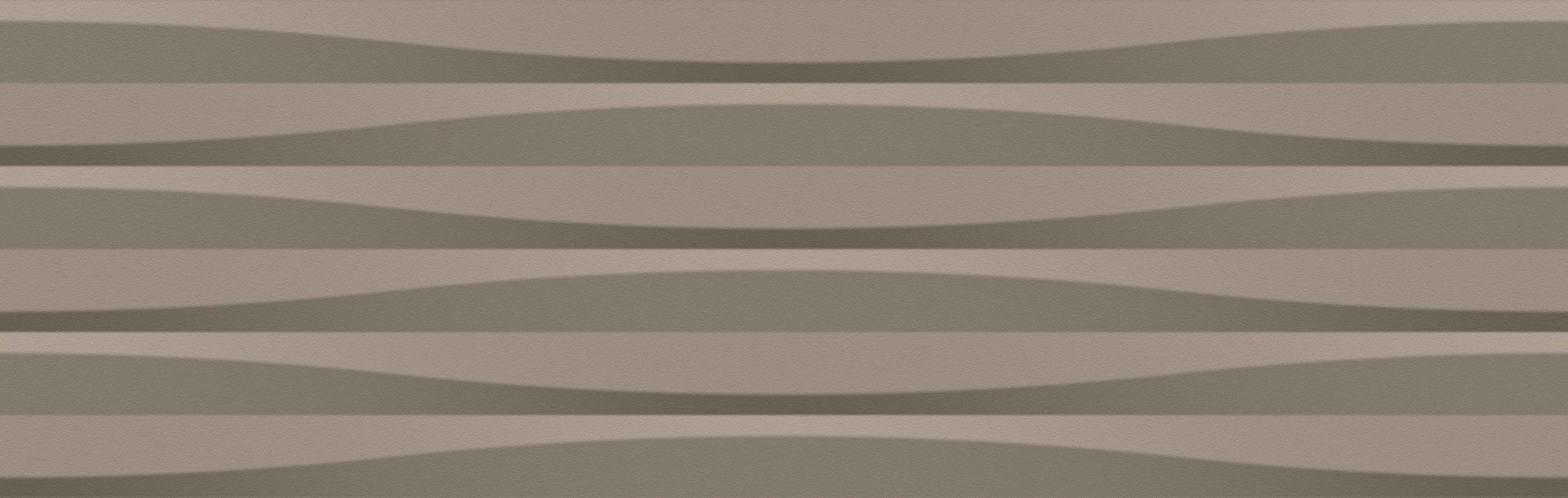

	ANSI A326.3	Not Applicable - Wall Use Only - Hourglass

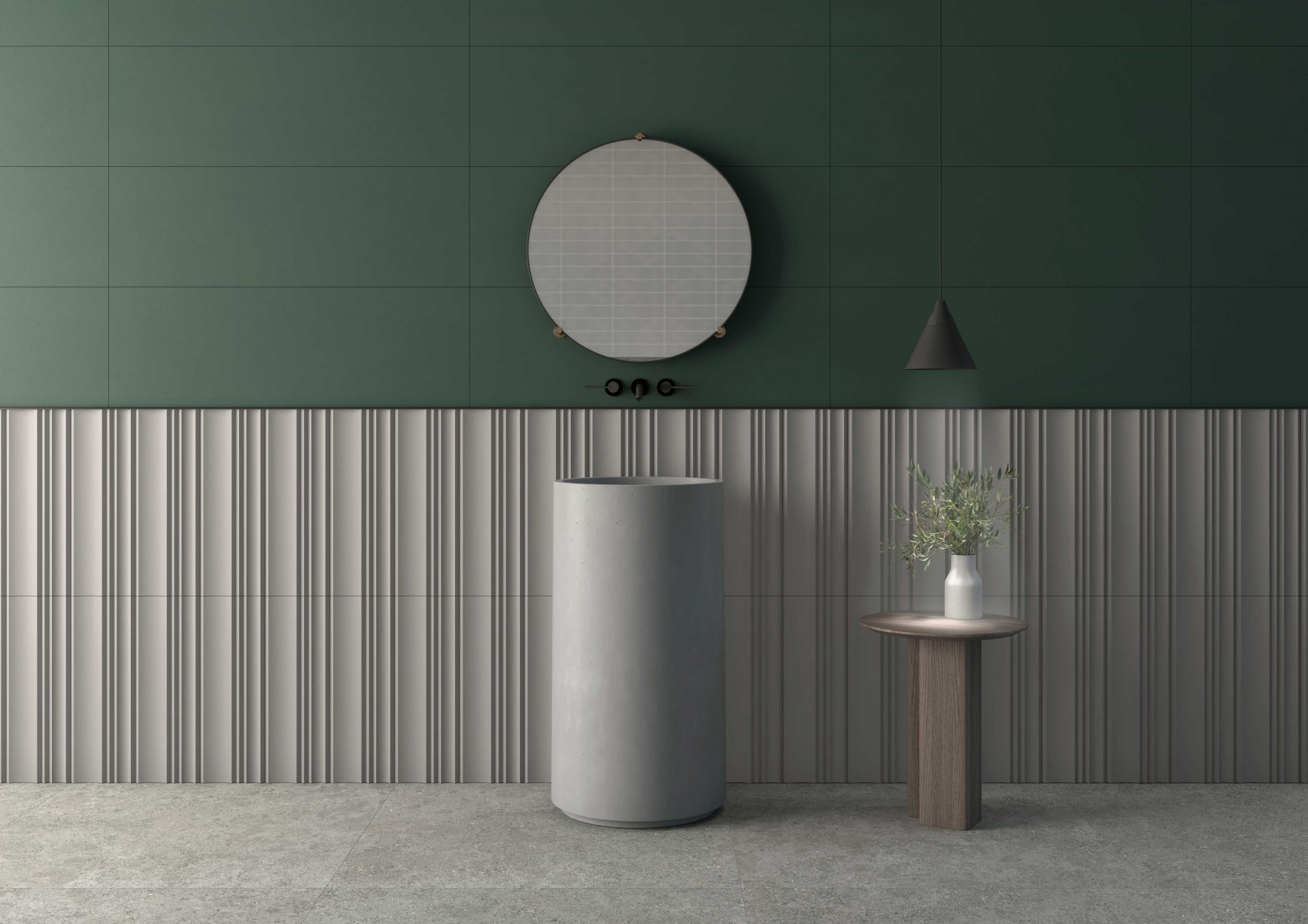

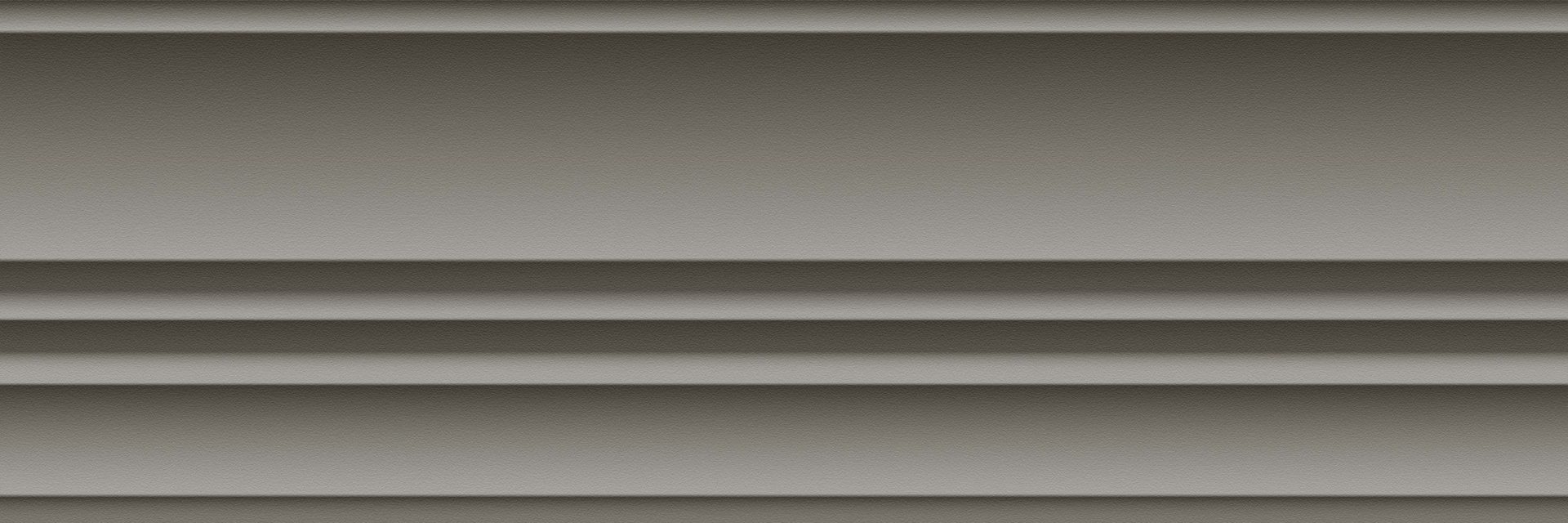

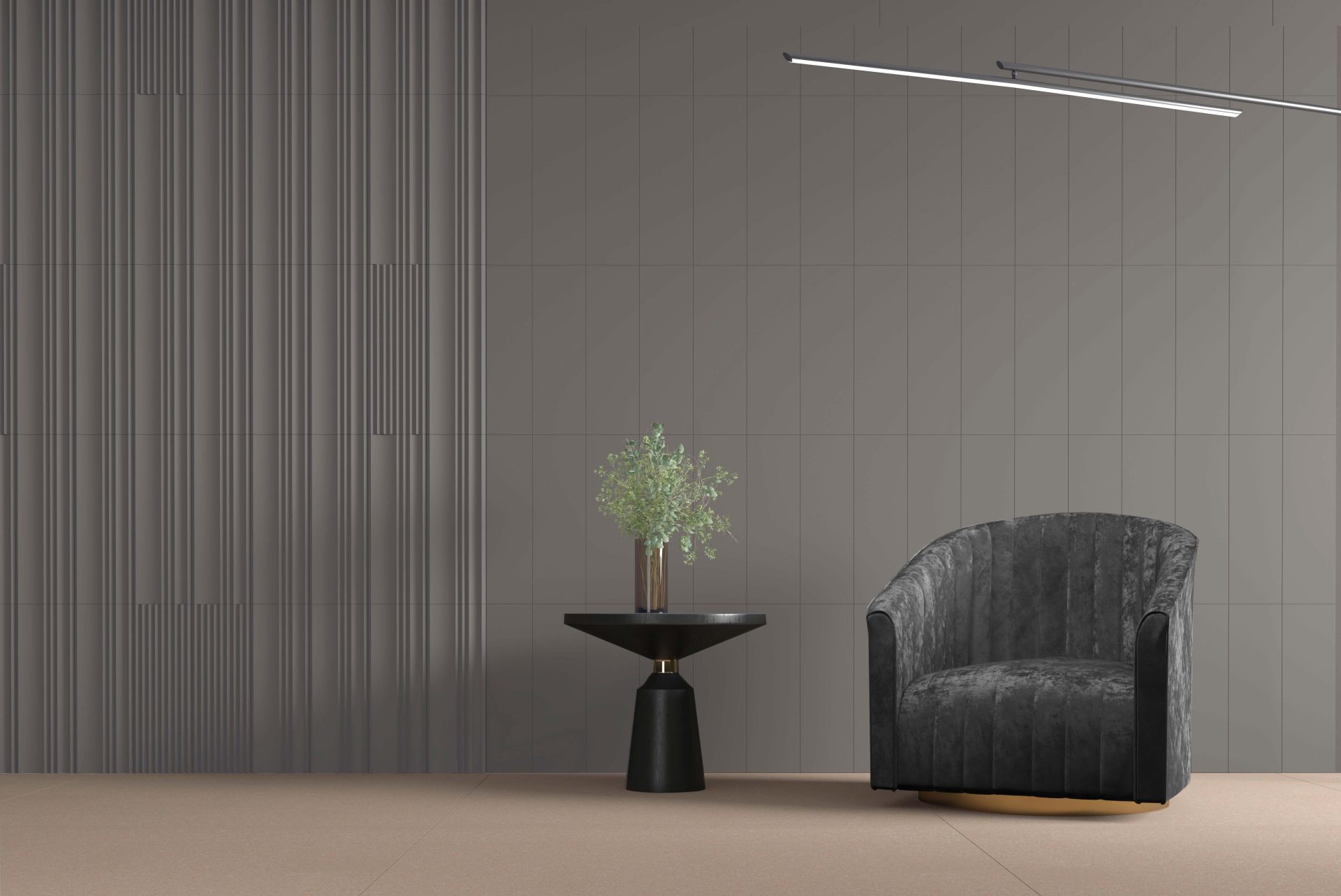

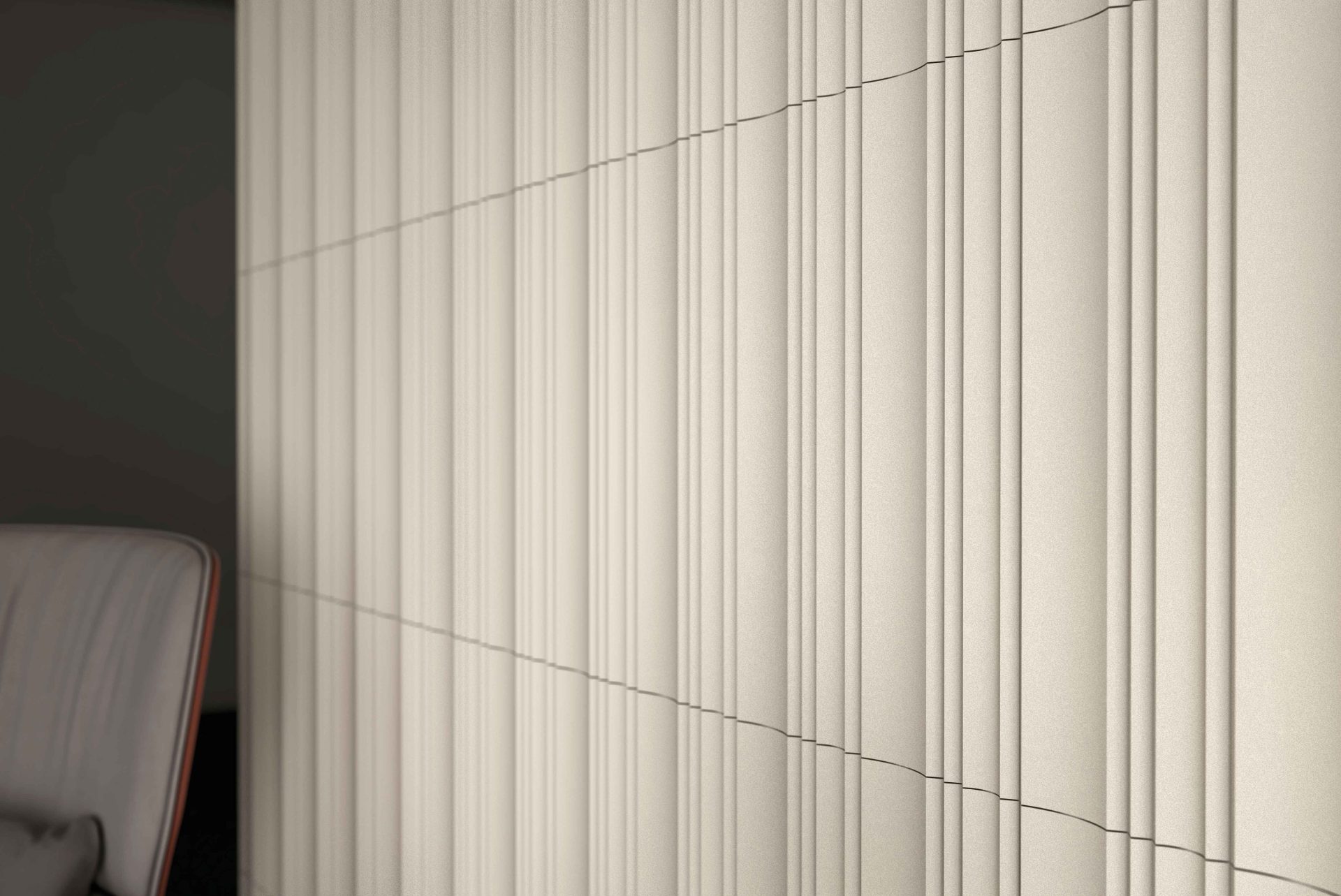

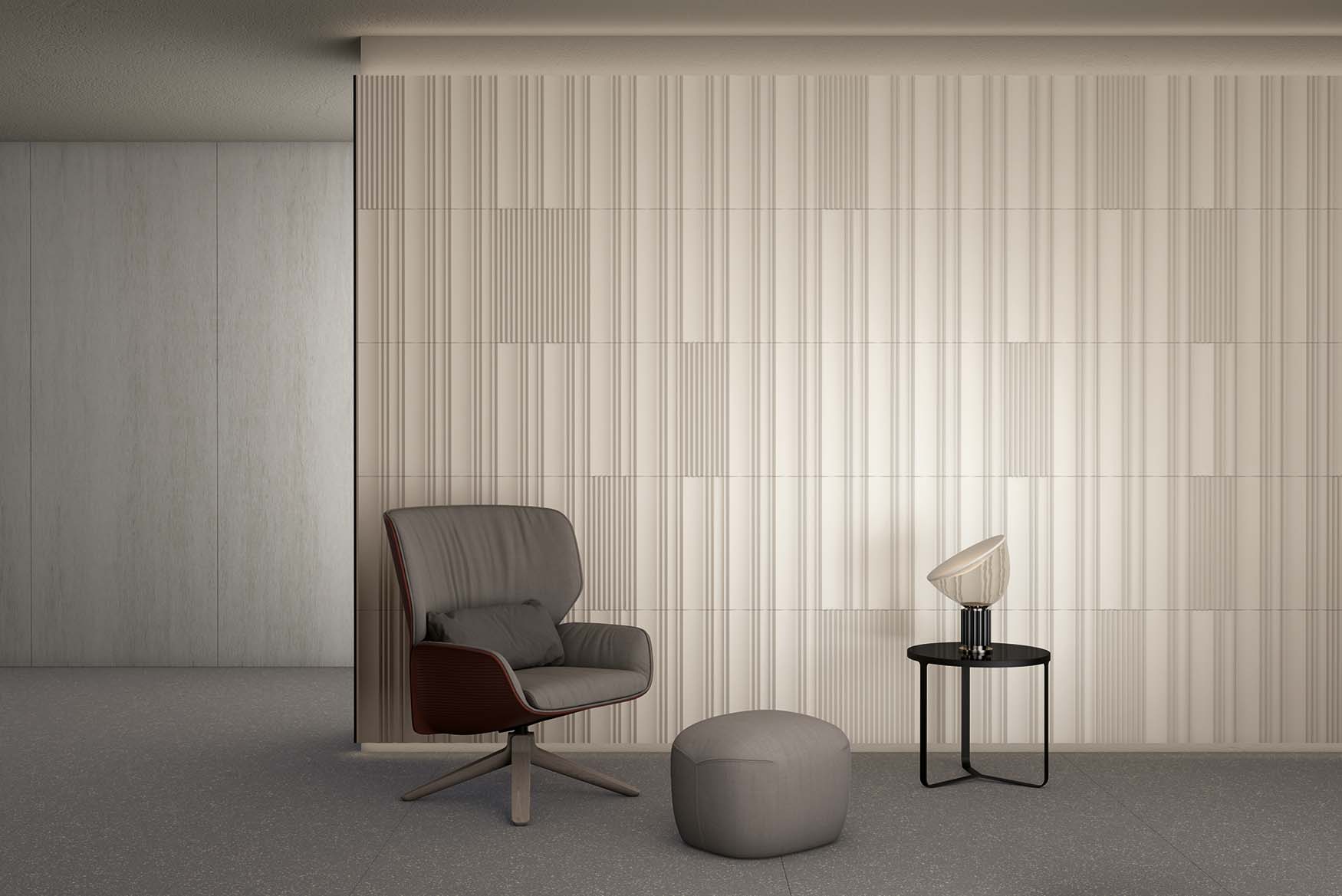

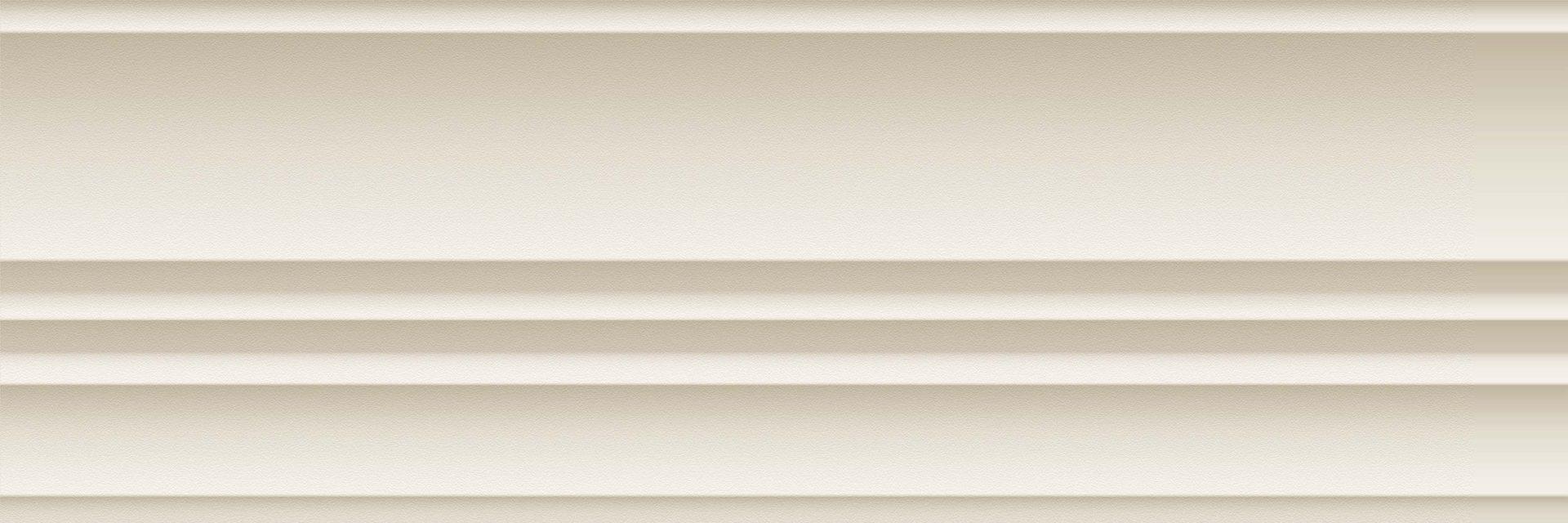

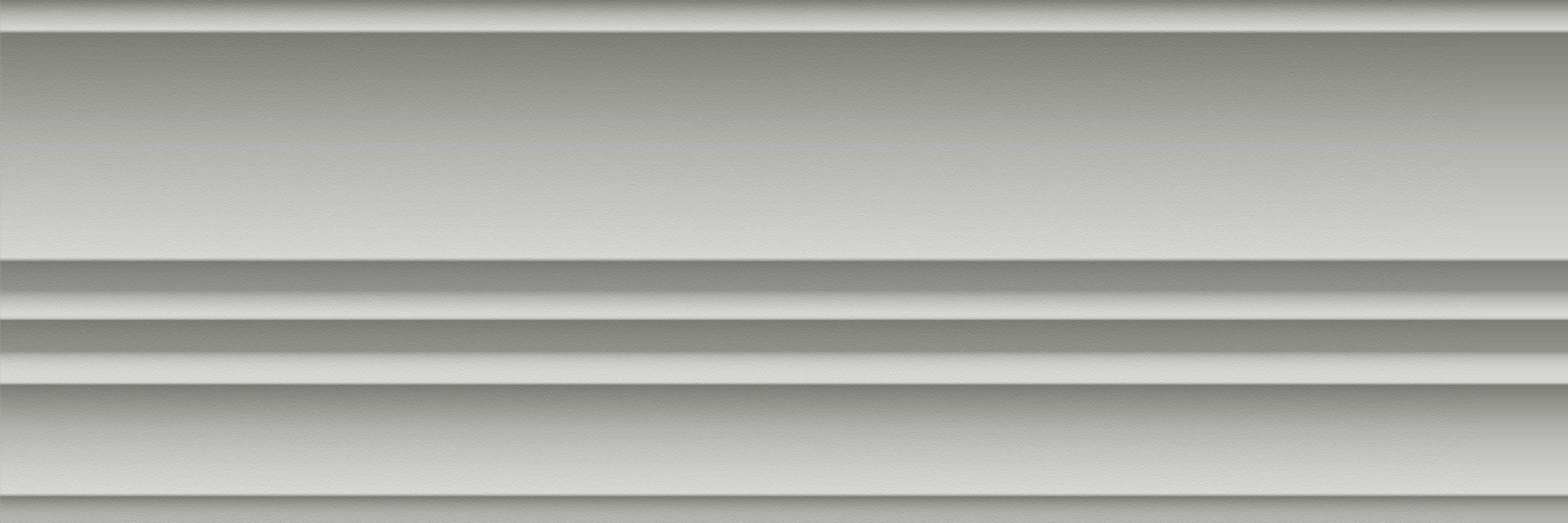

	ANSI A326.3	Not Applicable - Wall Use Only - Crown

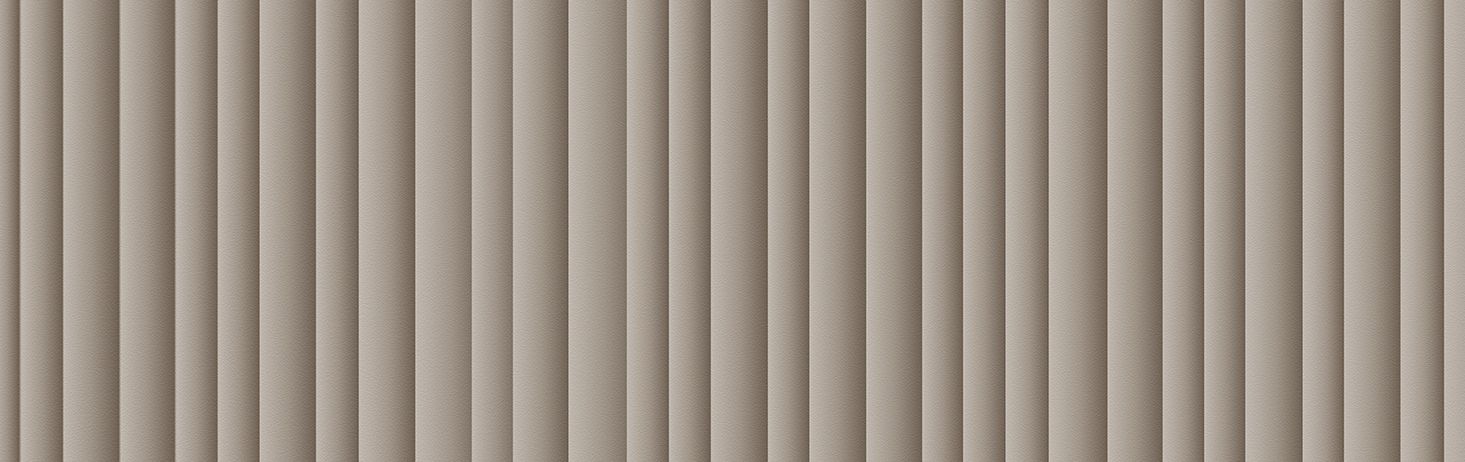

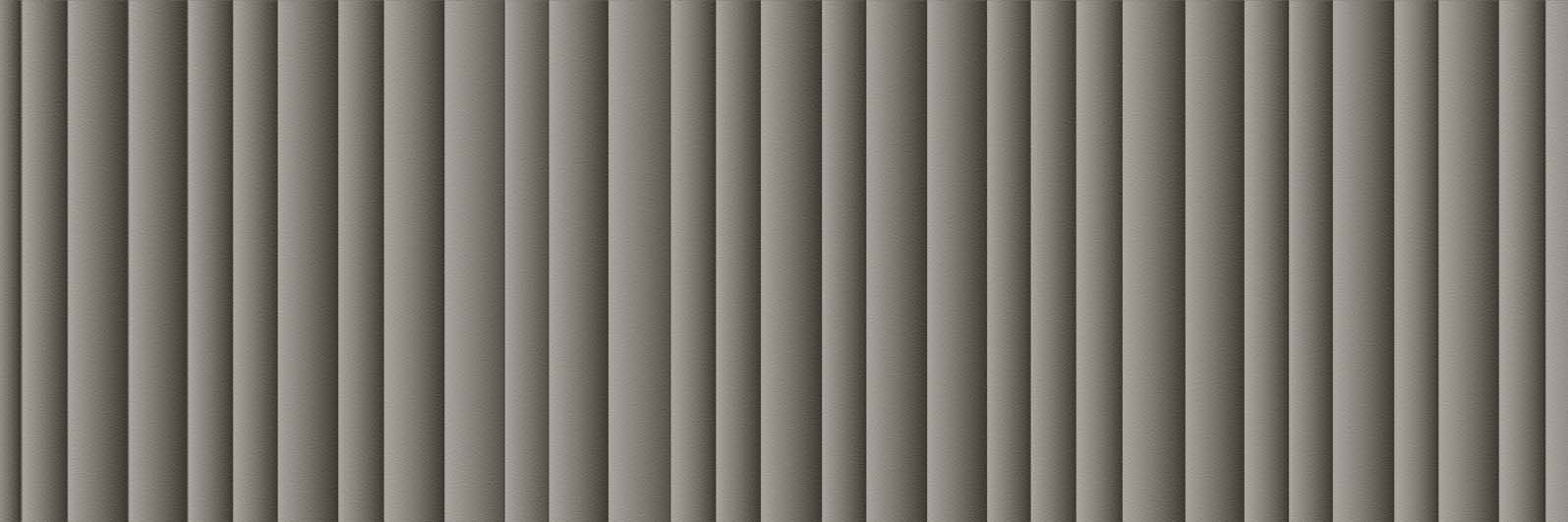

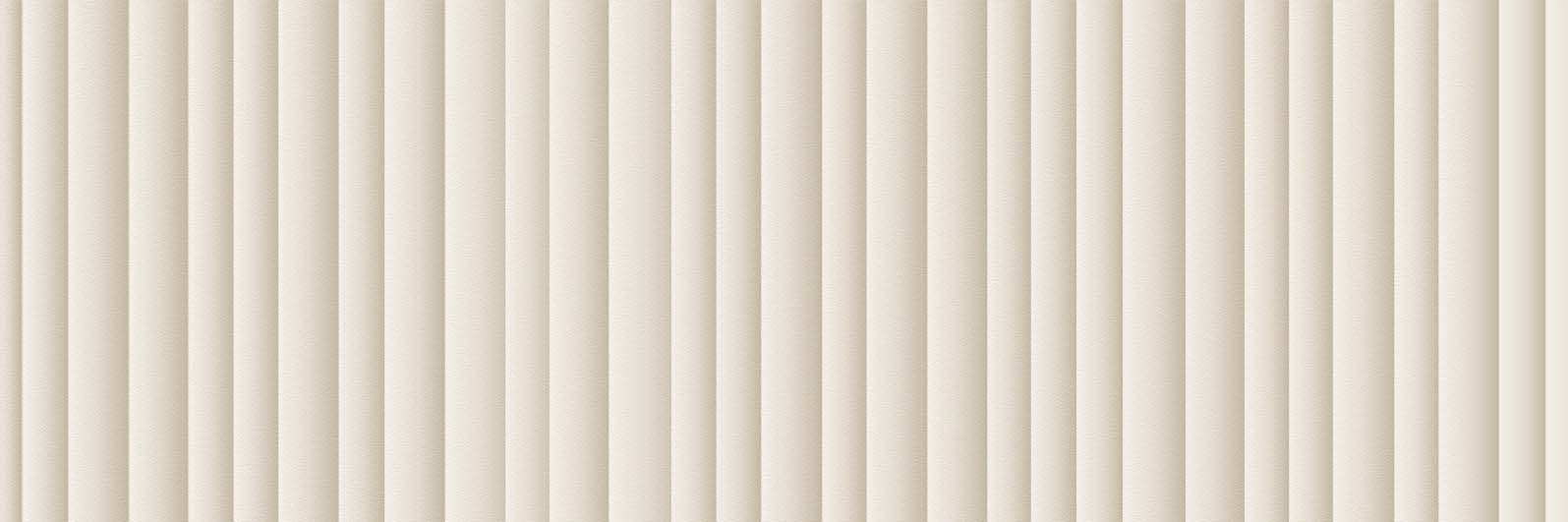

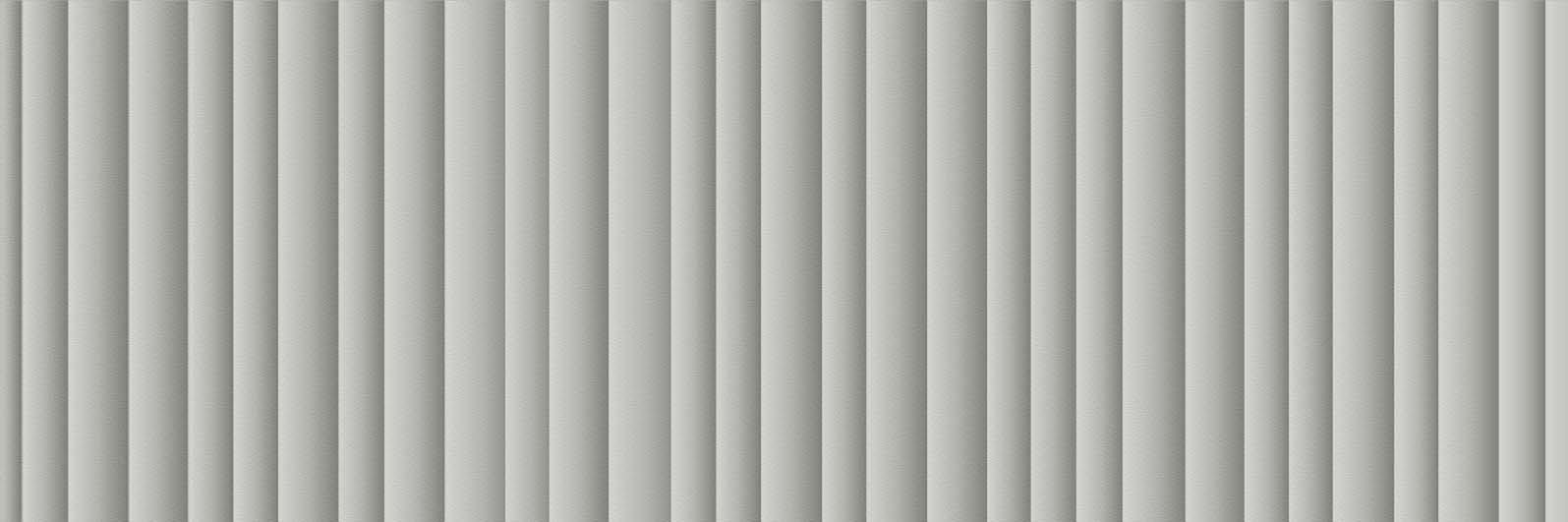

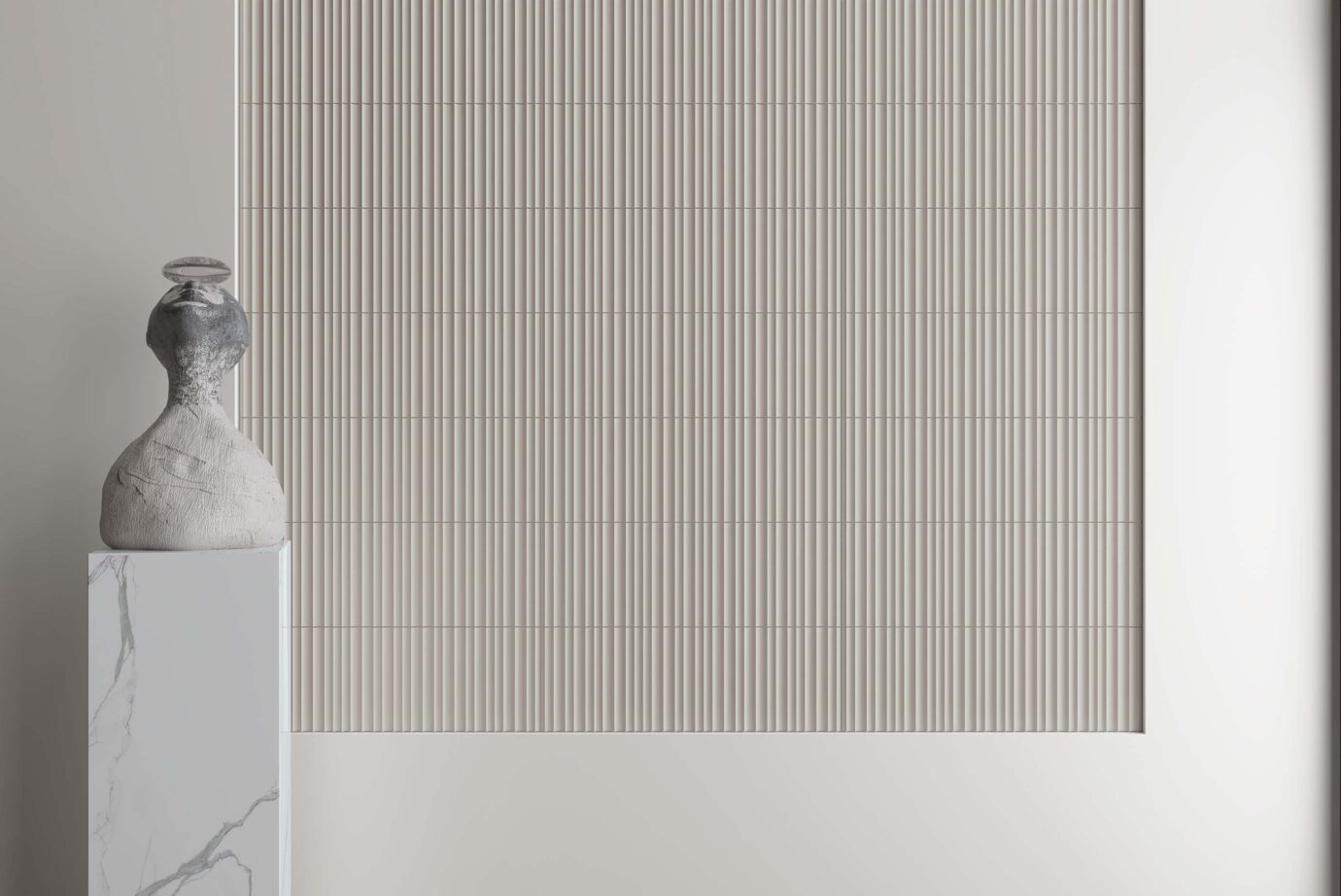

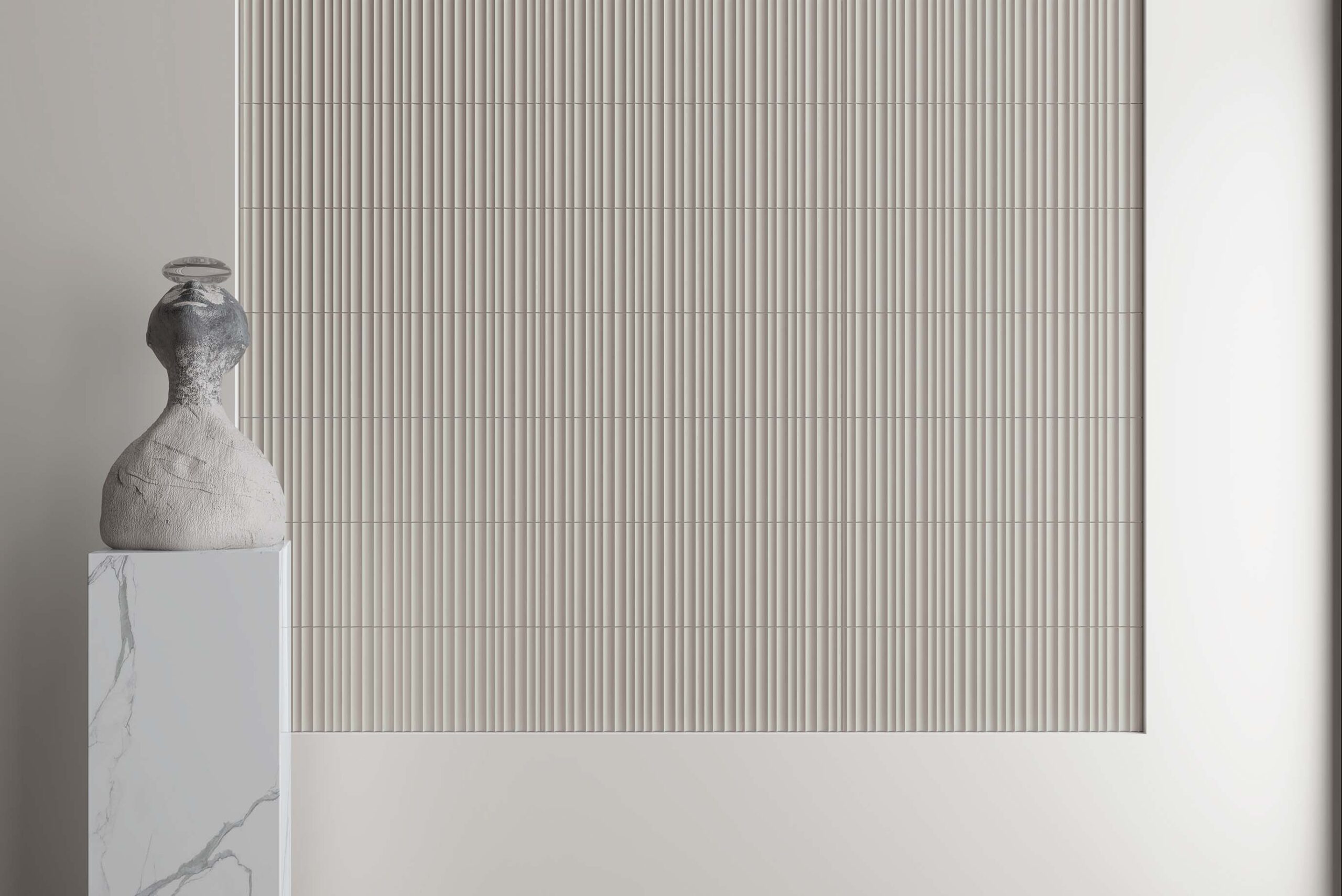

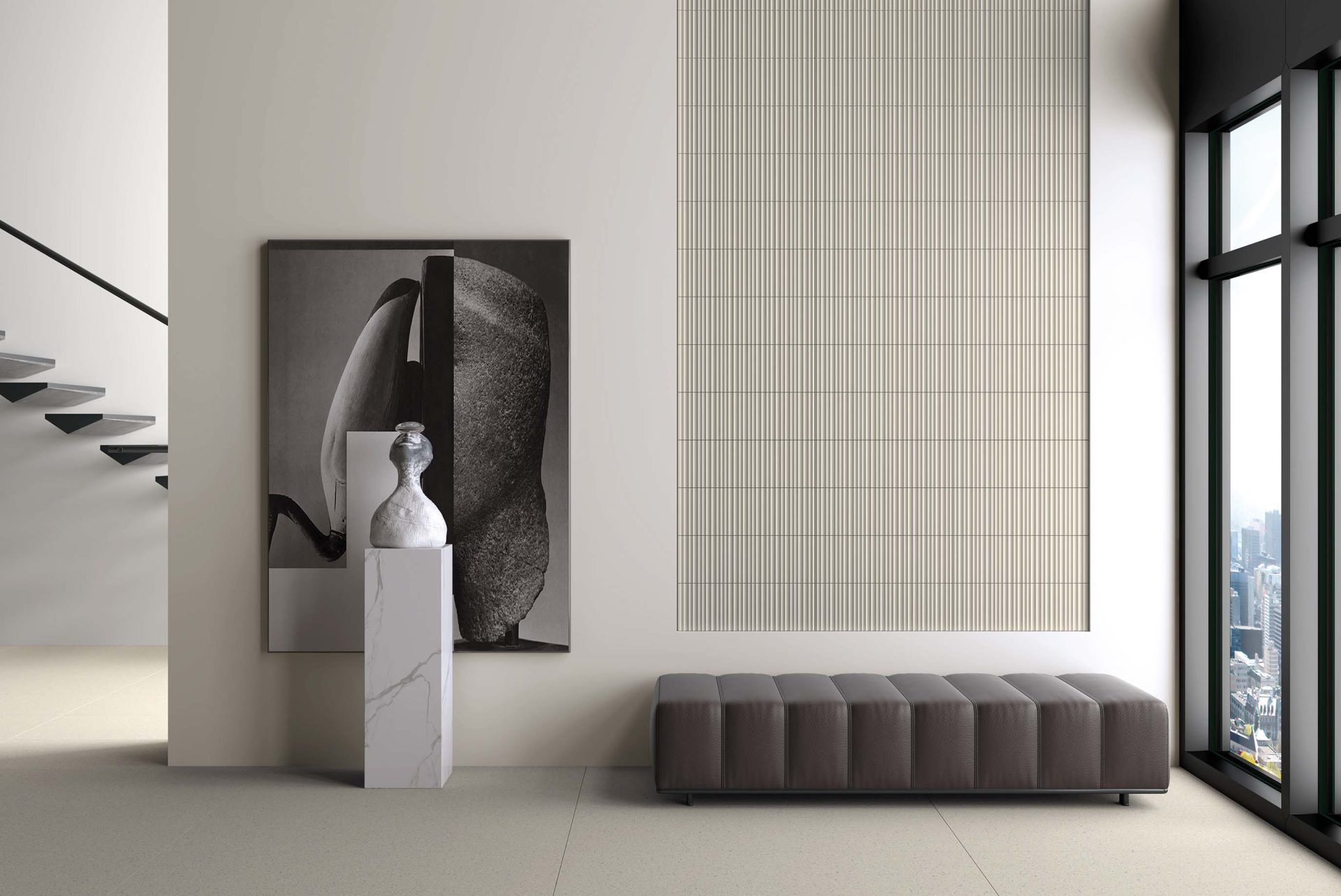

	ANSI A326.3	Not Applicable - Wall Use Only - Wave

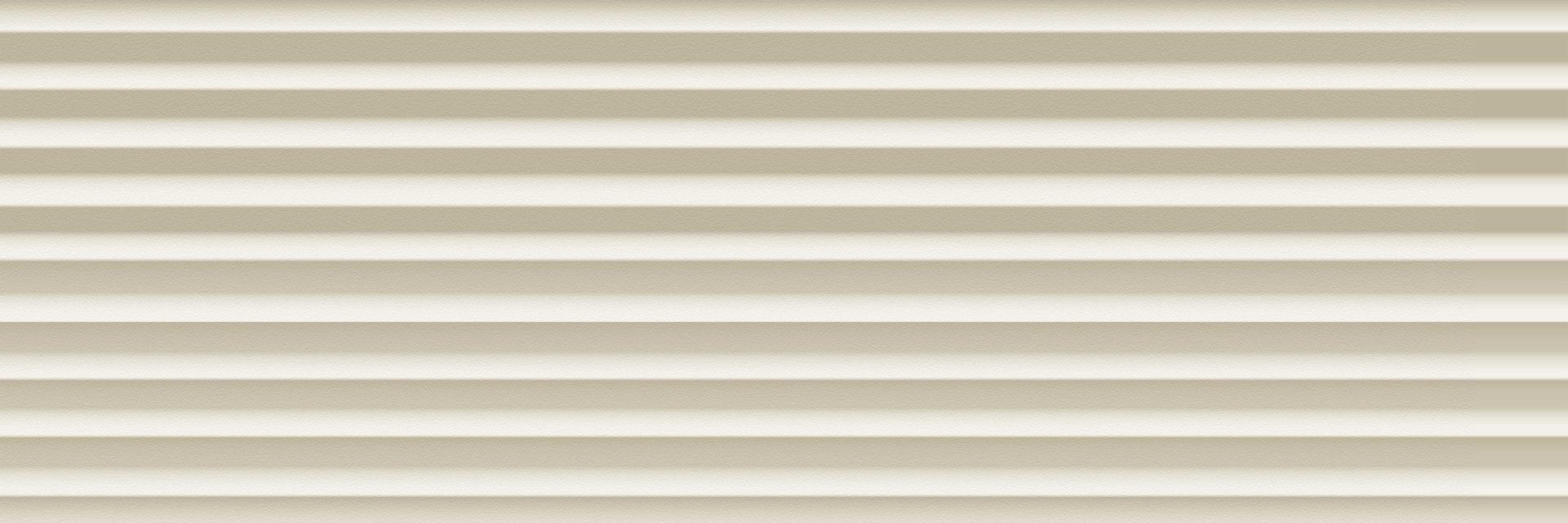

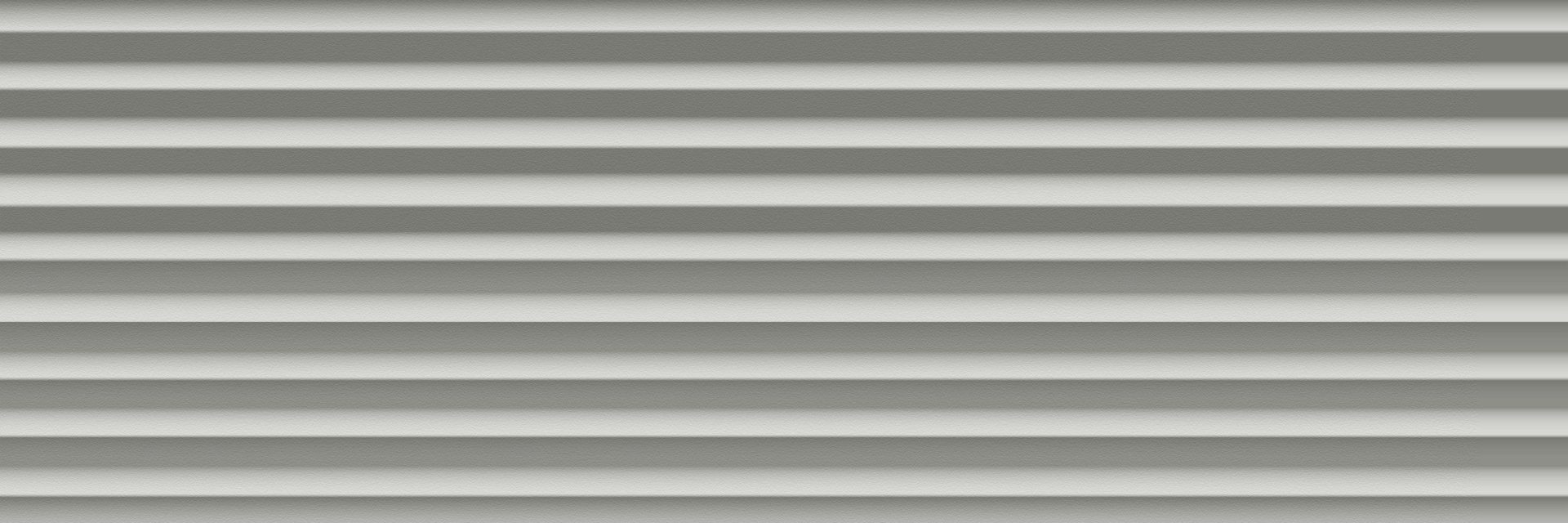

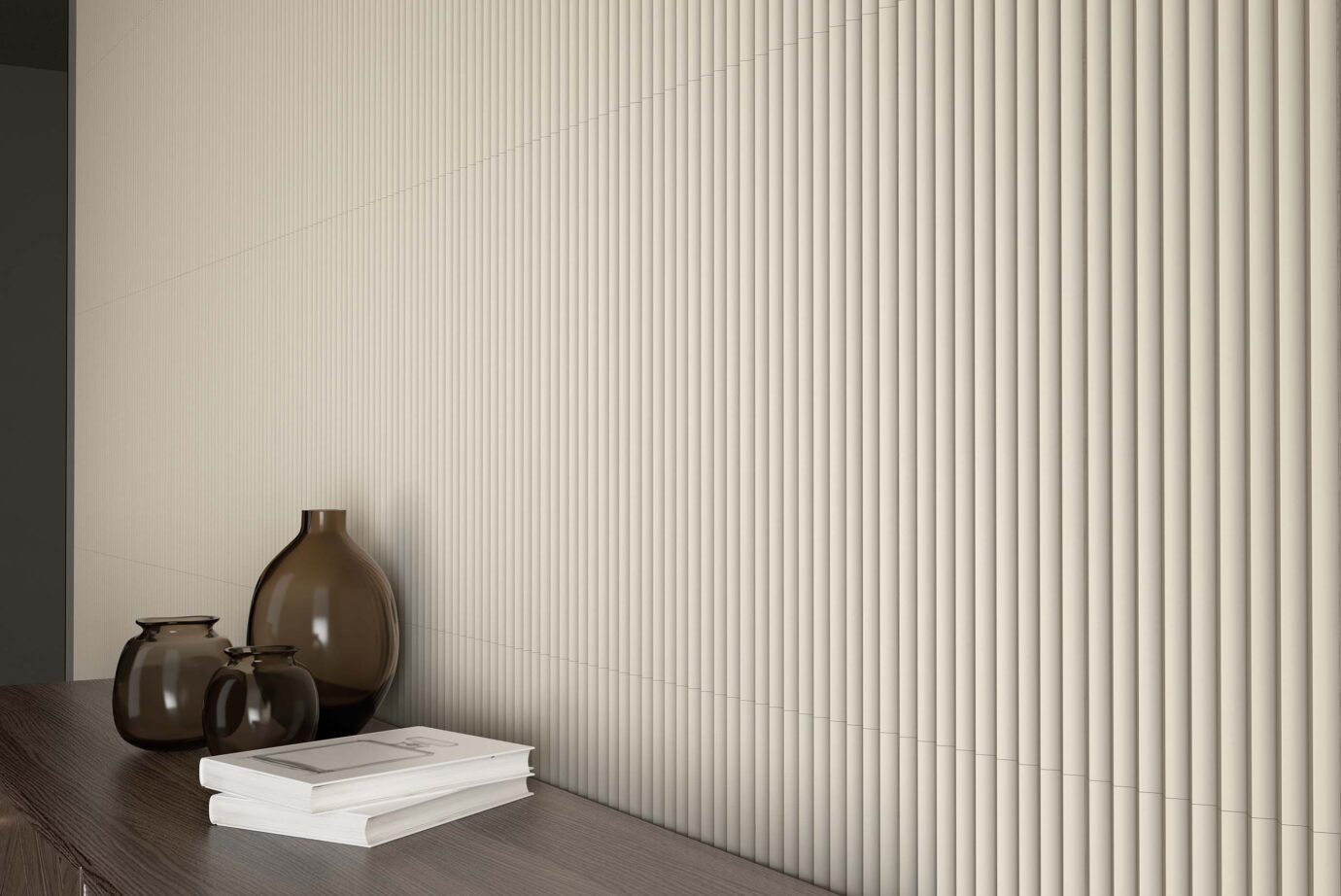

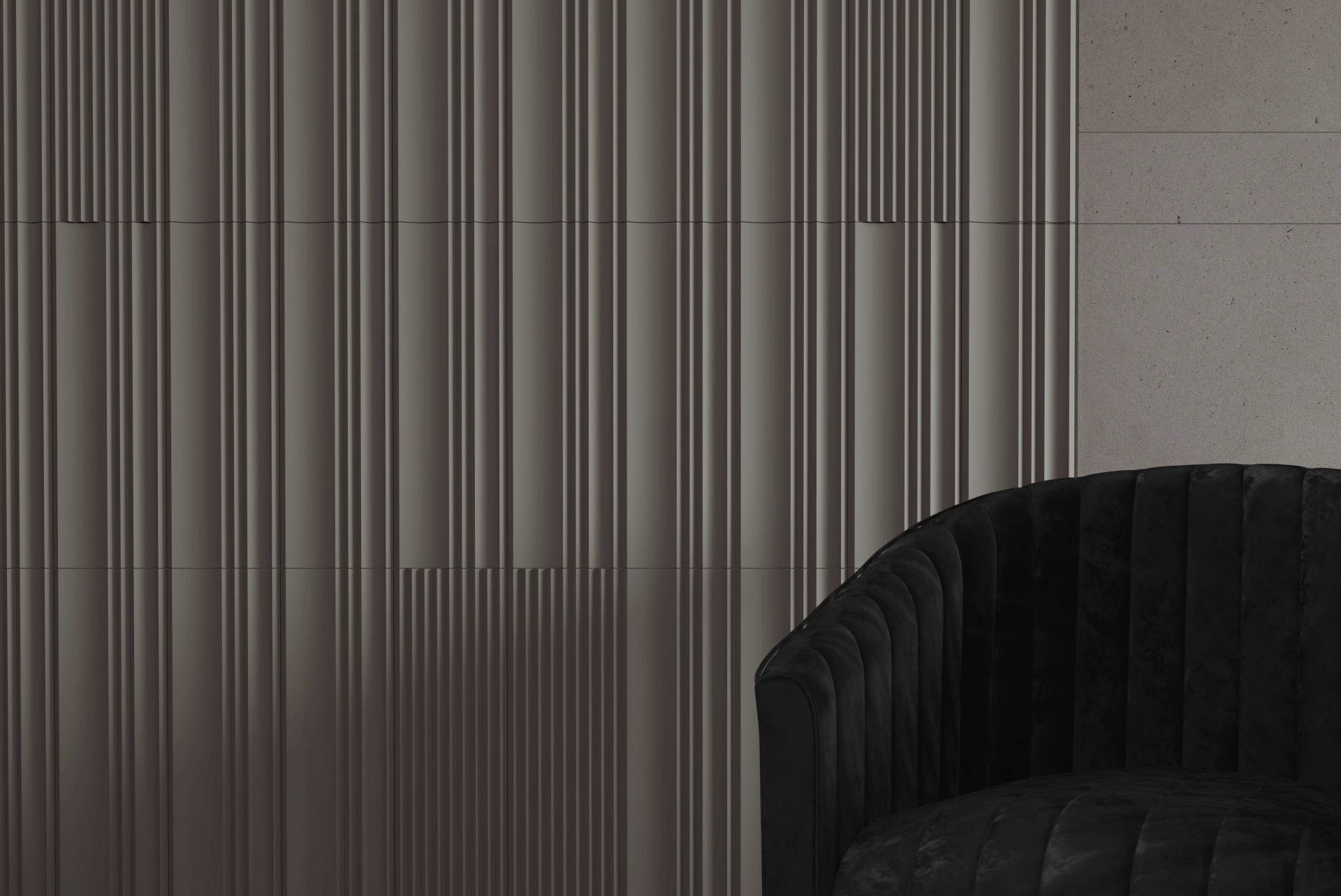

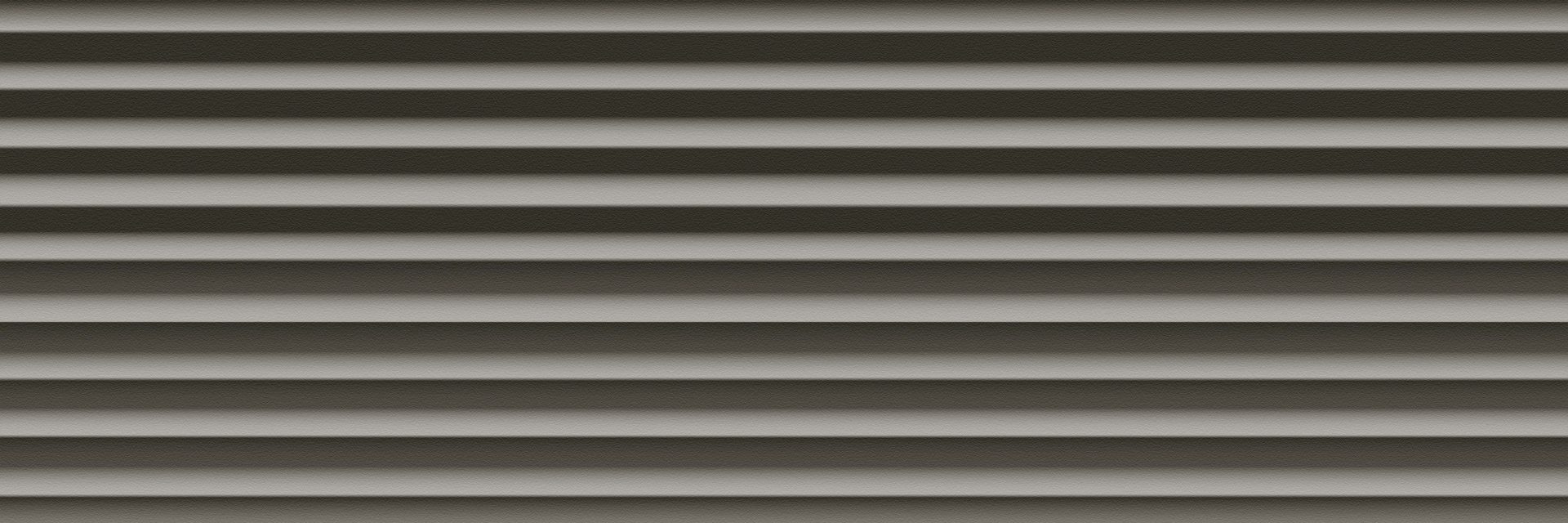

	ANSI A326.3	Not Applicable - Wall Use Only - Zigzag

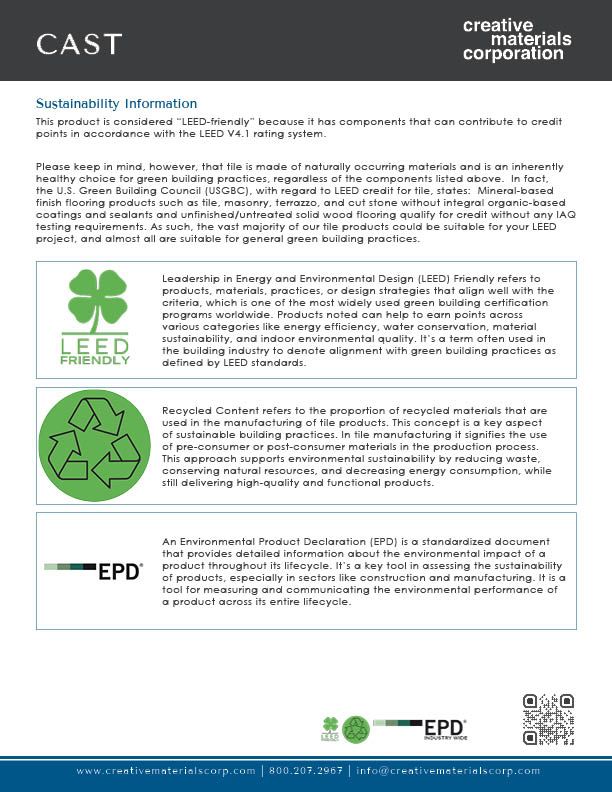

Cradle to Cradle	No
Declare Label - Red List Free	No
EPD - Industry Wide	Yes
EPD - Product Specific	No
GreenGuard Certified	No
Green Squared Certified	No
HPD	No
LEED Friendly	Yes
FloorScore®	Yes
Mindful Materials	No
Recycled Content	31%
Recycled Content Type	Pre-Consumer

Cast

Cast Color Palette

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Flat

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Dimensional Profiles

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Select grout color on right to view application.

Additional Information

Creative Complements for Cast

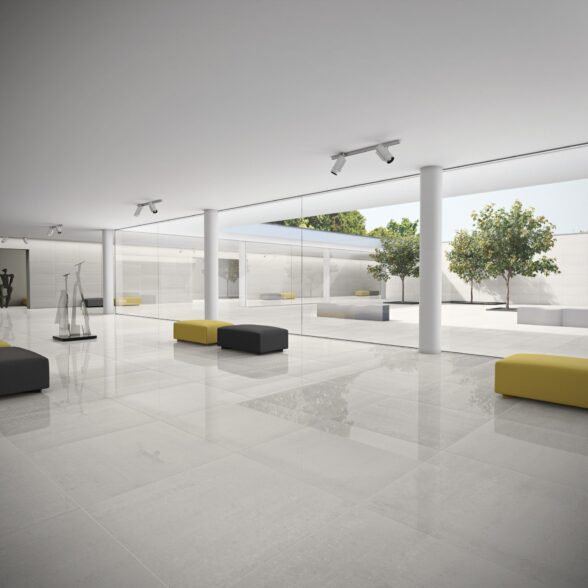

Bedrock

Neolithic

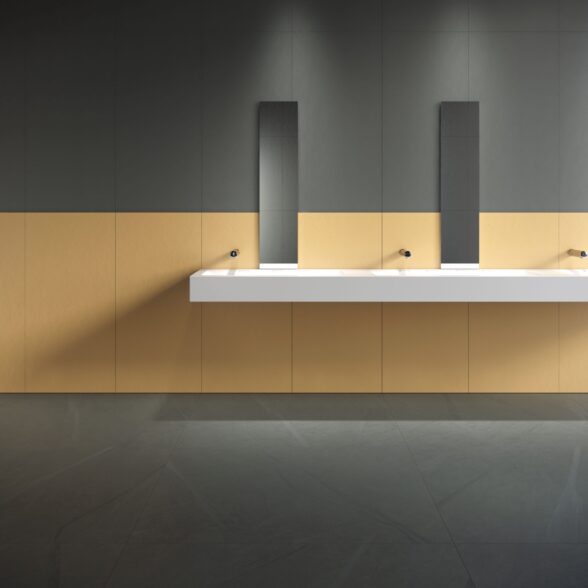

Clays
