Expansia Gauged Porcelain Panels: Luxury Marble Aesthetic

Expansia Gauged Porcelain offers a sophisticated range of large-format tiles that masterfully replicate the intricate beauty of natural stones and minerals. From the vibrant greens of Emerald Quartzite to the luxurious swirls of Macaubas Gold, each variant exudes its own unique charm, providing endless possibilities for elevating any commercial space.

Creative Features:

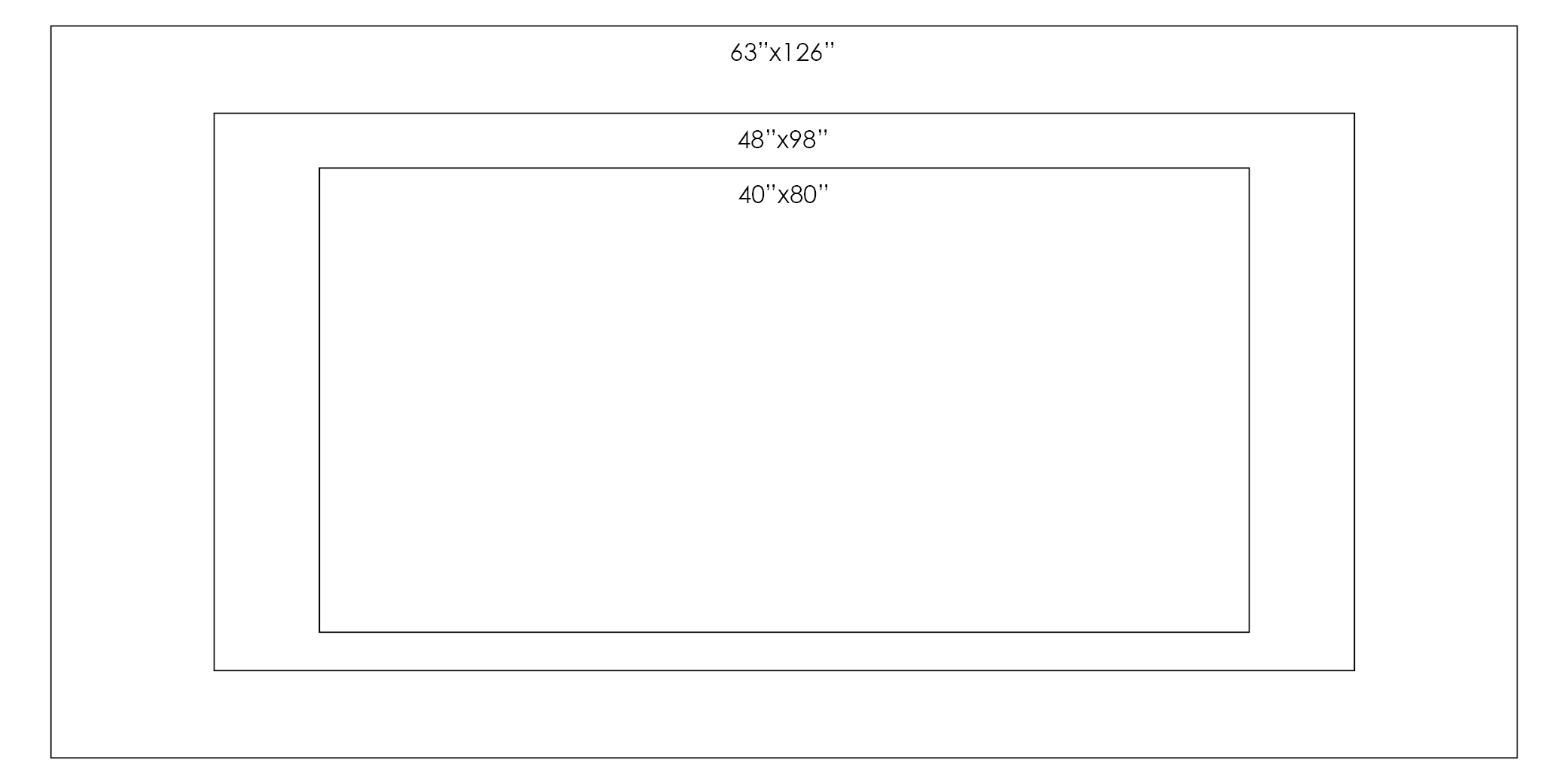

Three Sizes | 40″x80″ up to 63″x126″
Two Finishes | Matte and Polished
Porcelain
Domestic Inventory
Made in Spain

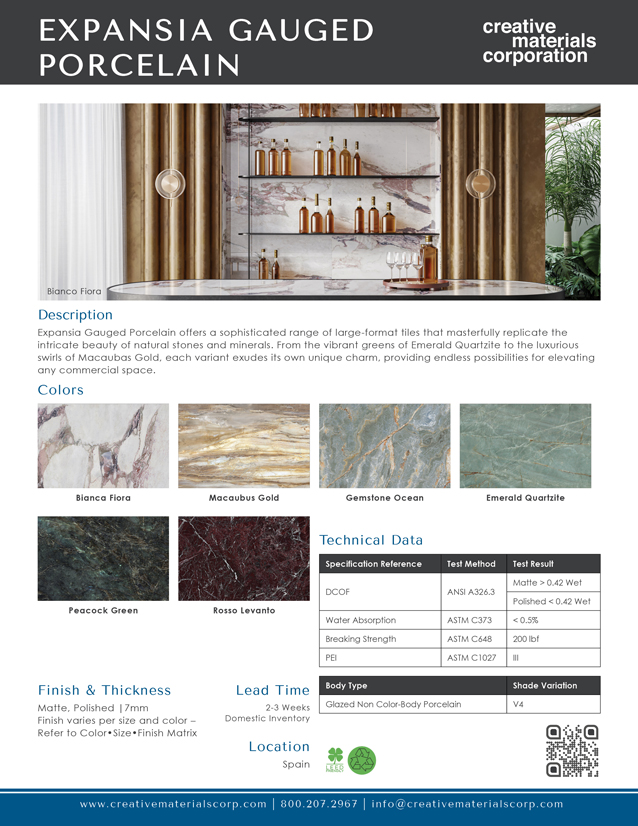

VIEW COLOR & SIZE MATRIX VIEW CUTSHEET

Expansia Gauged Porcelain Color Palette

Click on a product to request a sample or add it to your custom project board.

Add to a board Request Sample

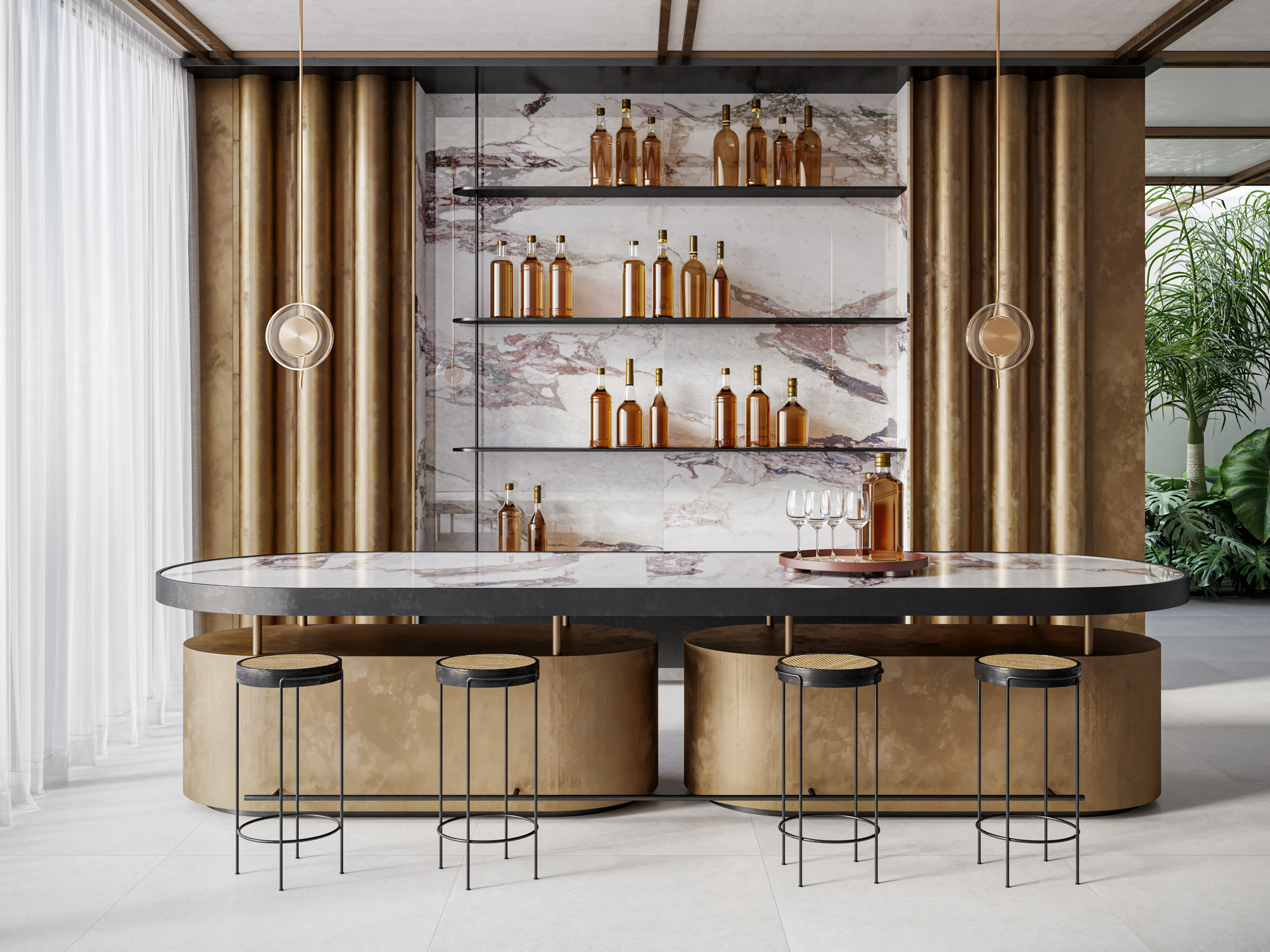

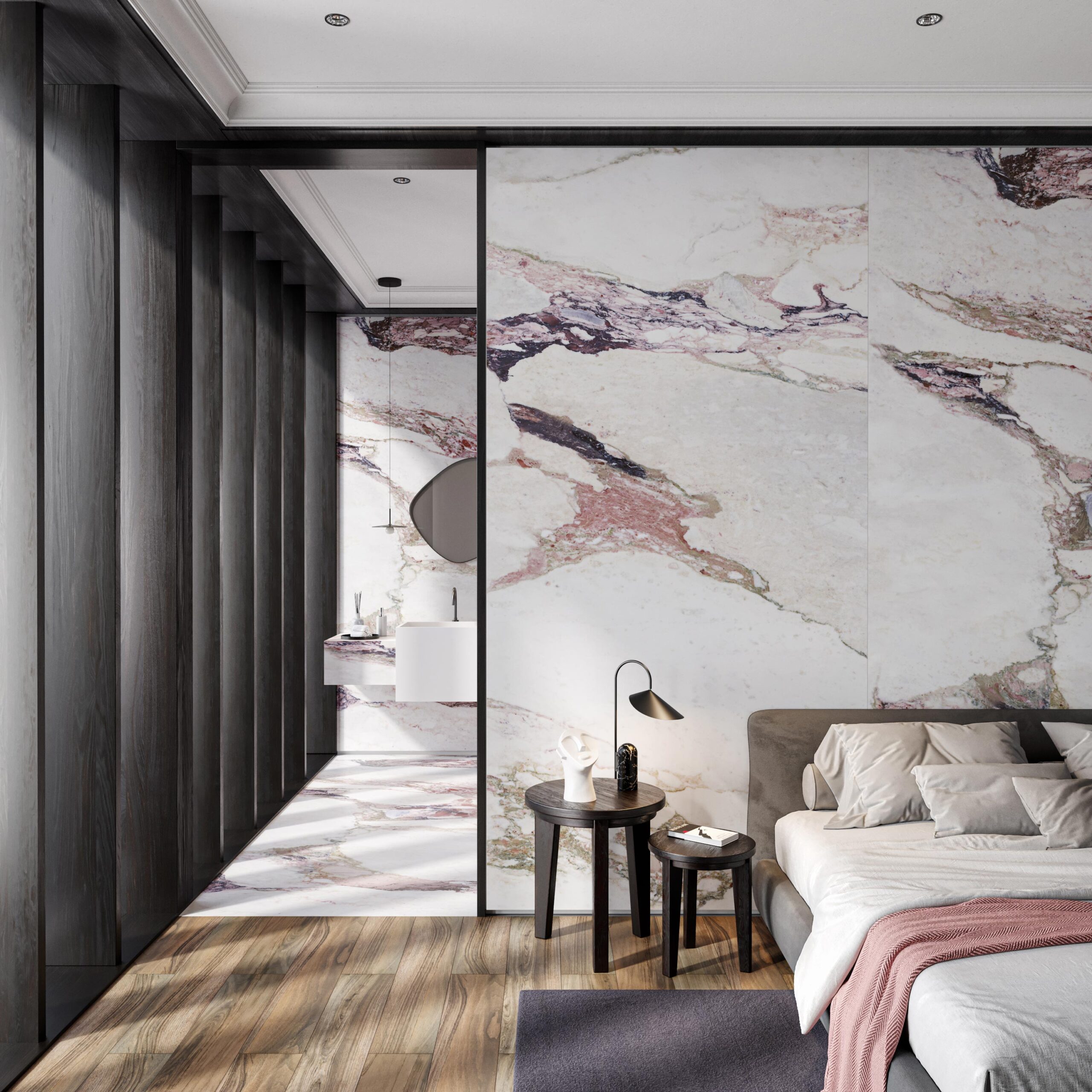

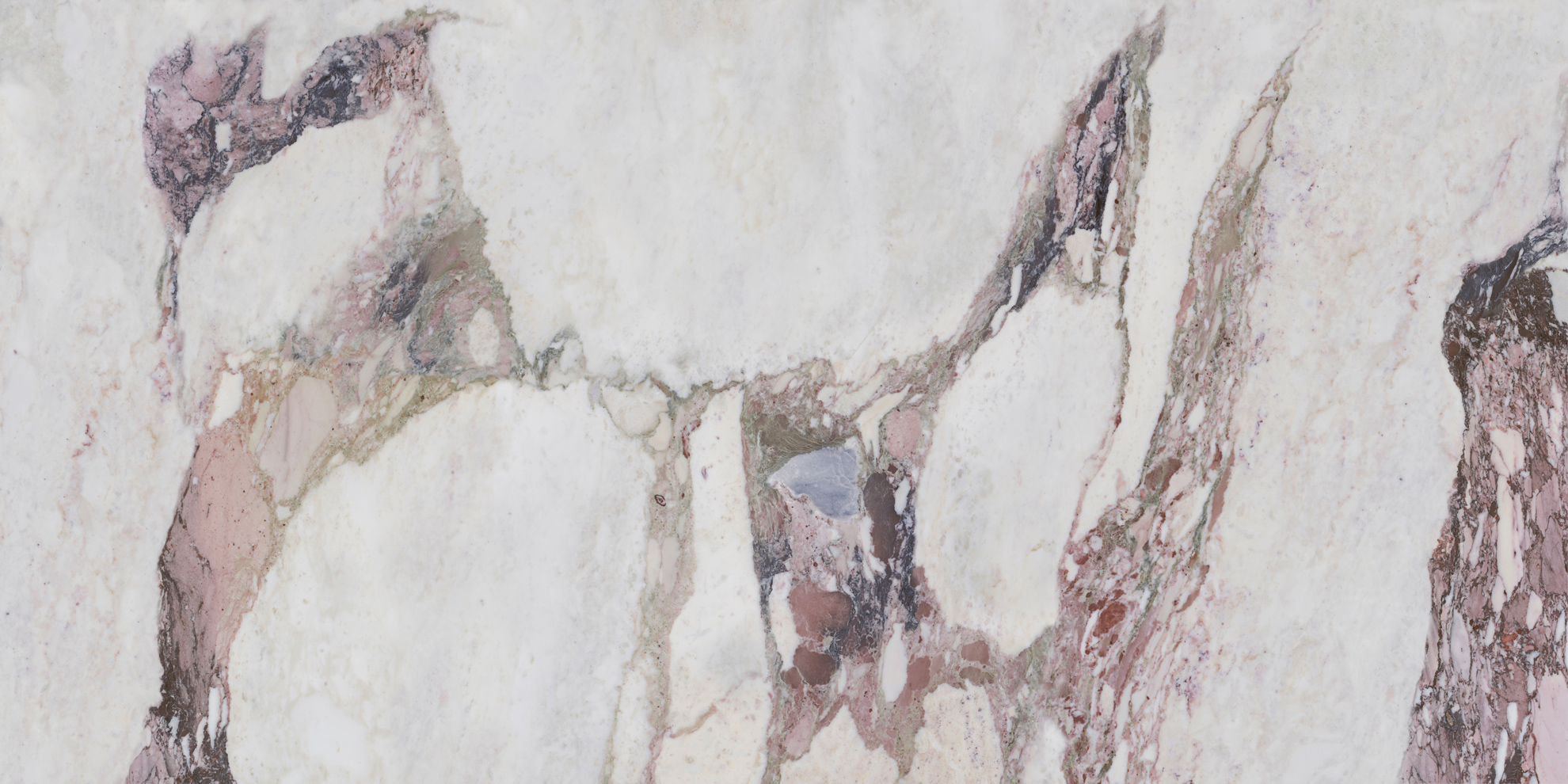

Bianca Fiora View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Grout joints shown are for illustrative purposes only. Actual size of the grout joints will vary based on tile production caliber, edge treatment, and patterns utilized. Tile size shown with grout application may not be indicative of available size. Grout colors shown here may not accurately represent the actual color of the installed product because of jobsite conditions, product preparation, installation methods, lighting, image variance on computer monitors, and the type of tile or stone utilized. Consequently, MAPEI makes no representation, warranty or guarantee of any kind regarding the color, texture, appearance or suitability of our products. For those characteristics, MAPEI excludes all express or implied warranties including, but not limited to MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE.

Add to a board Request Sample

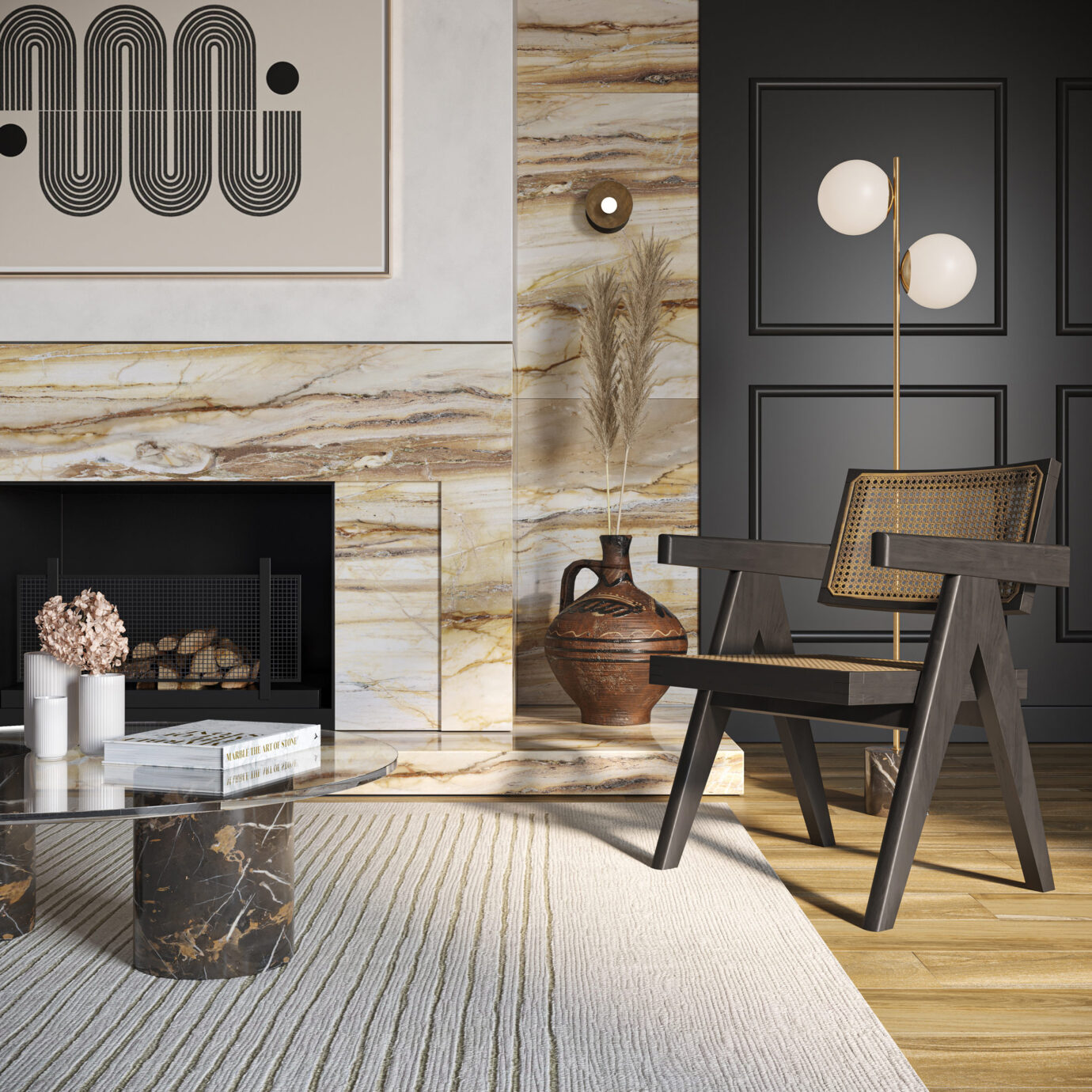

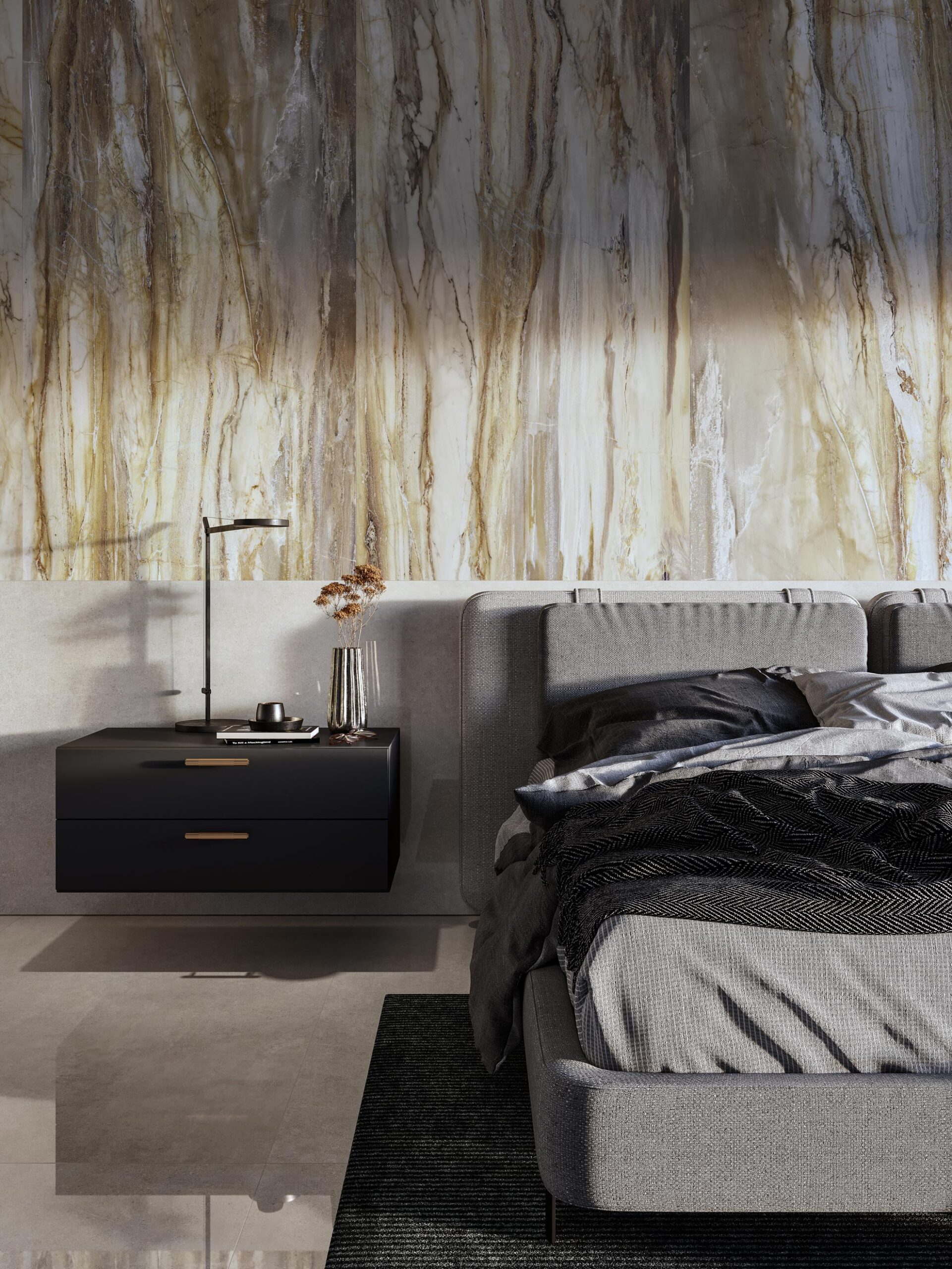

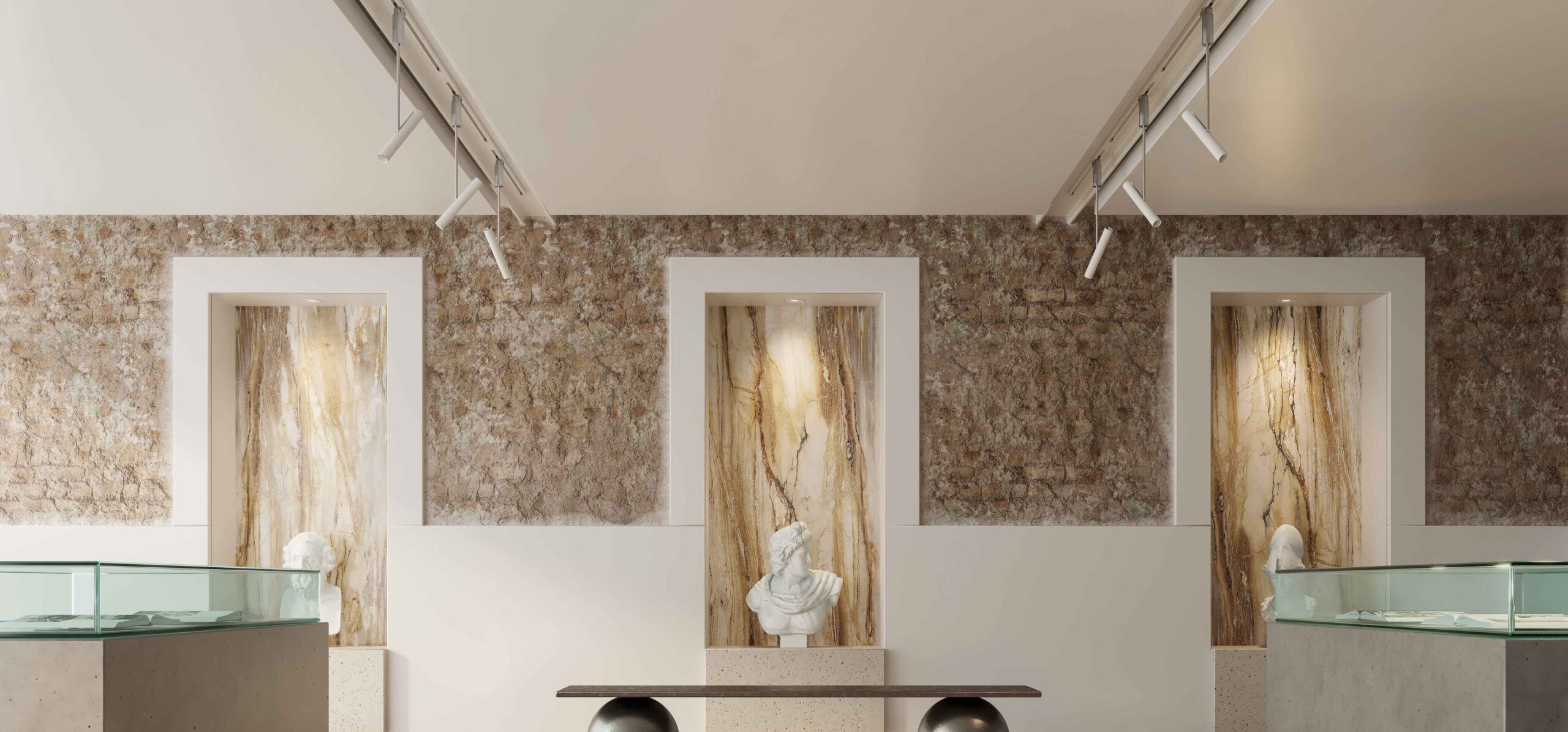

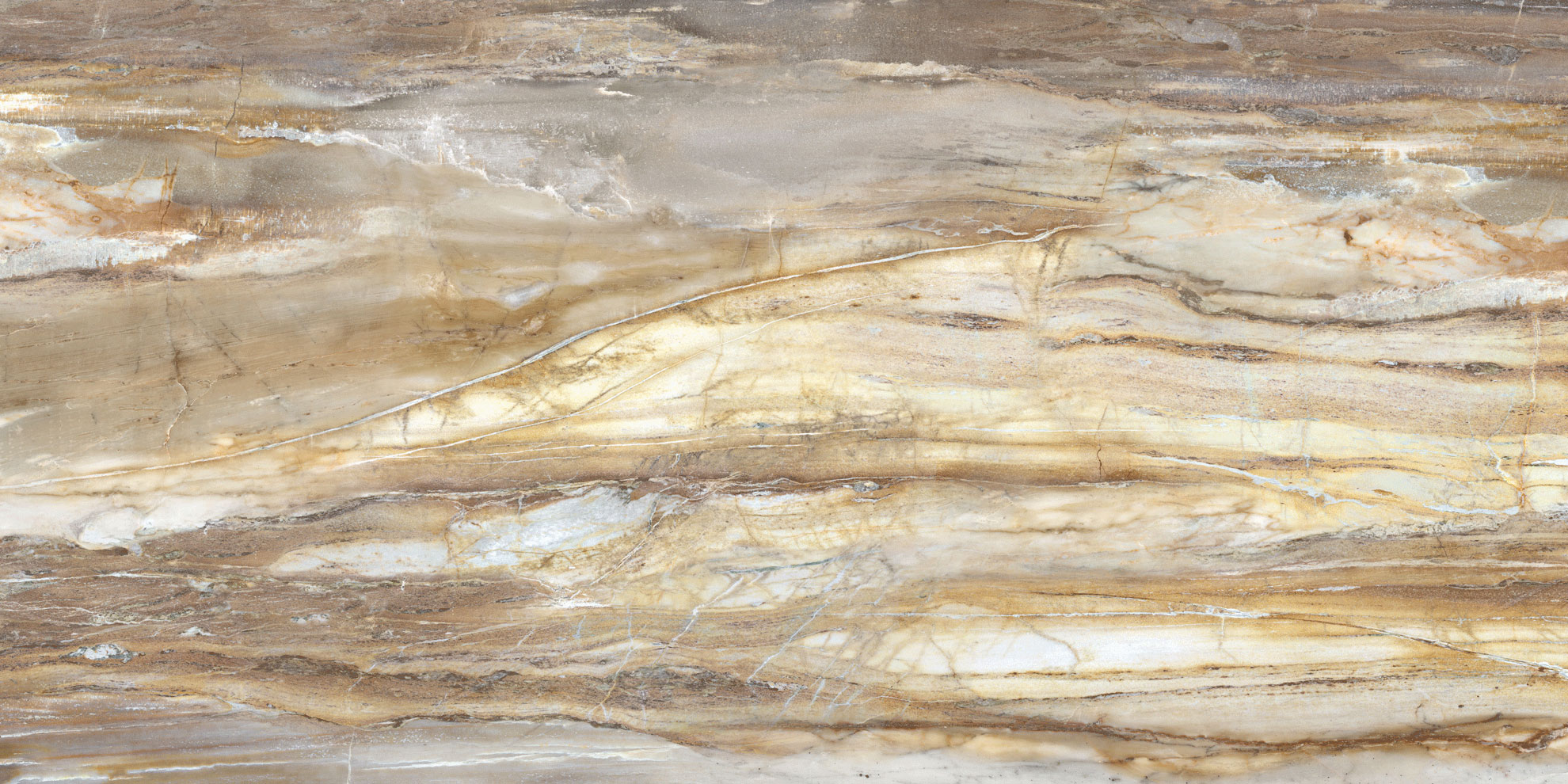

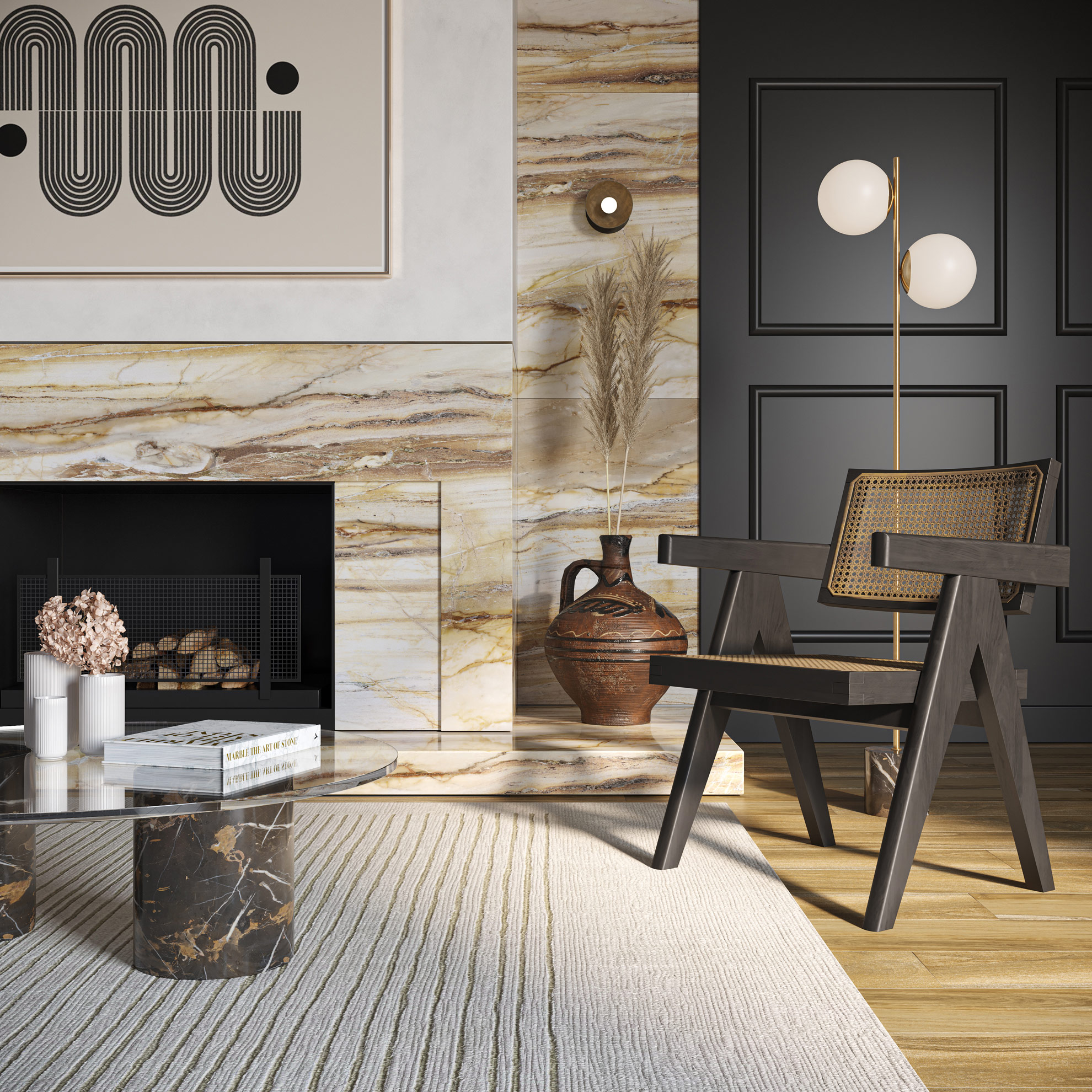

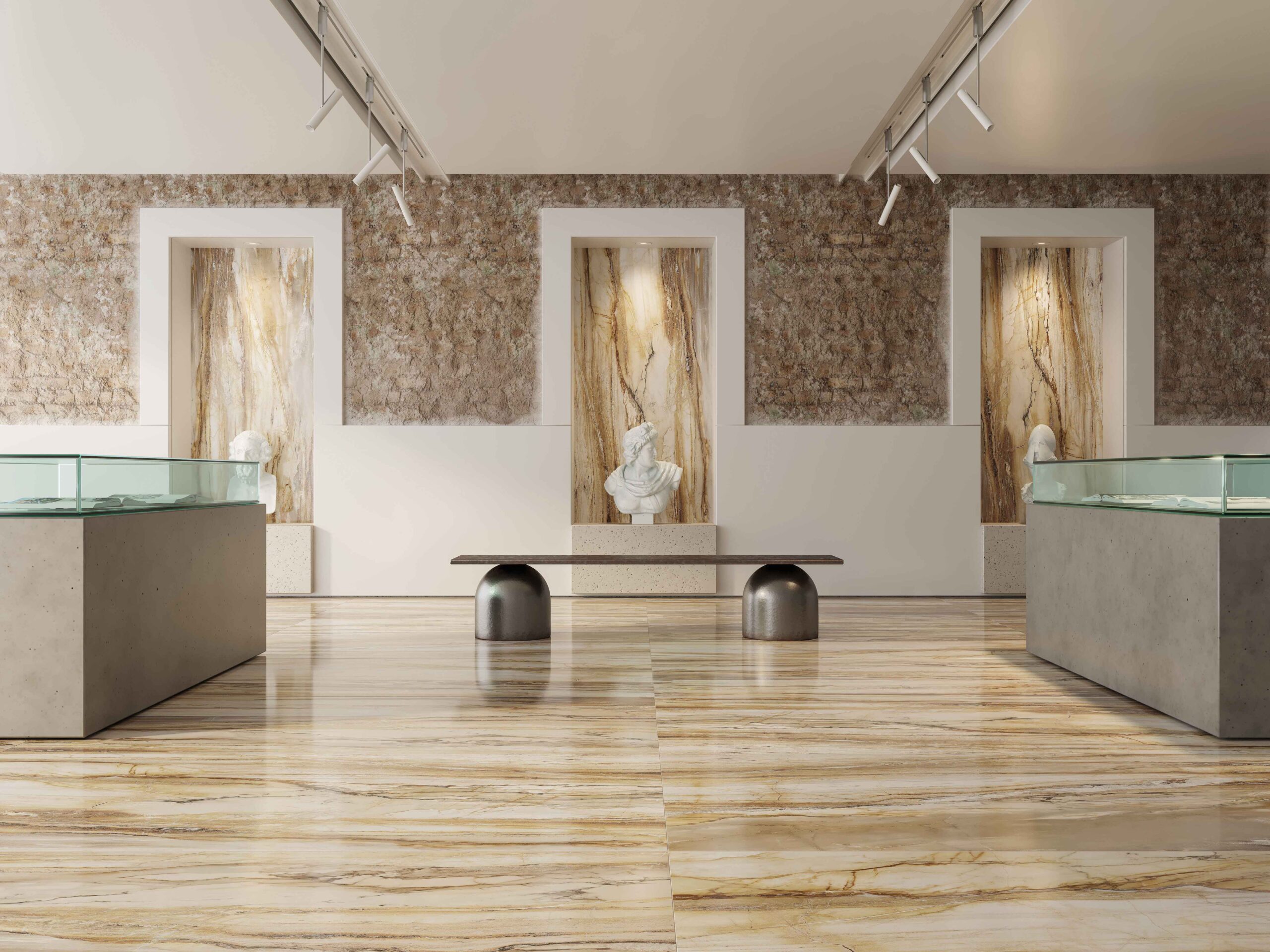

Macaubas Gold View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

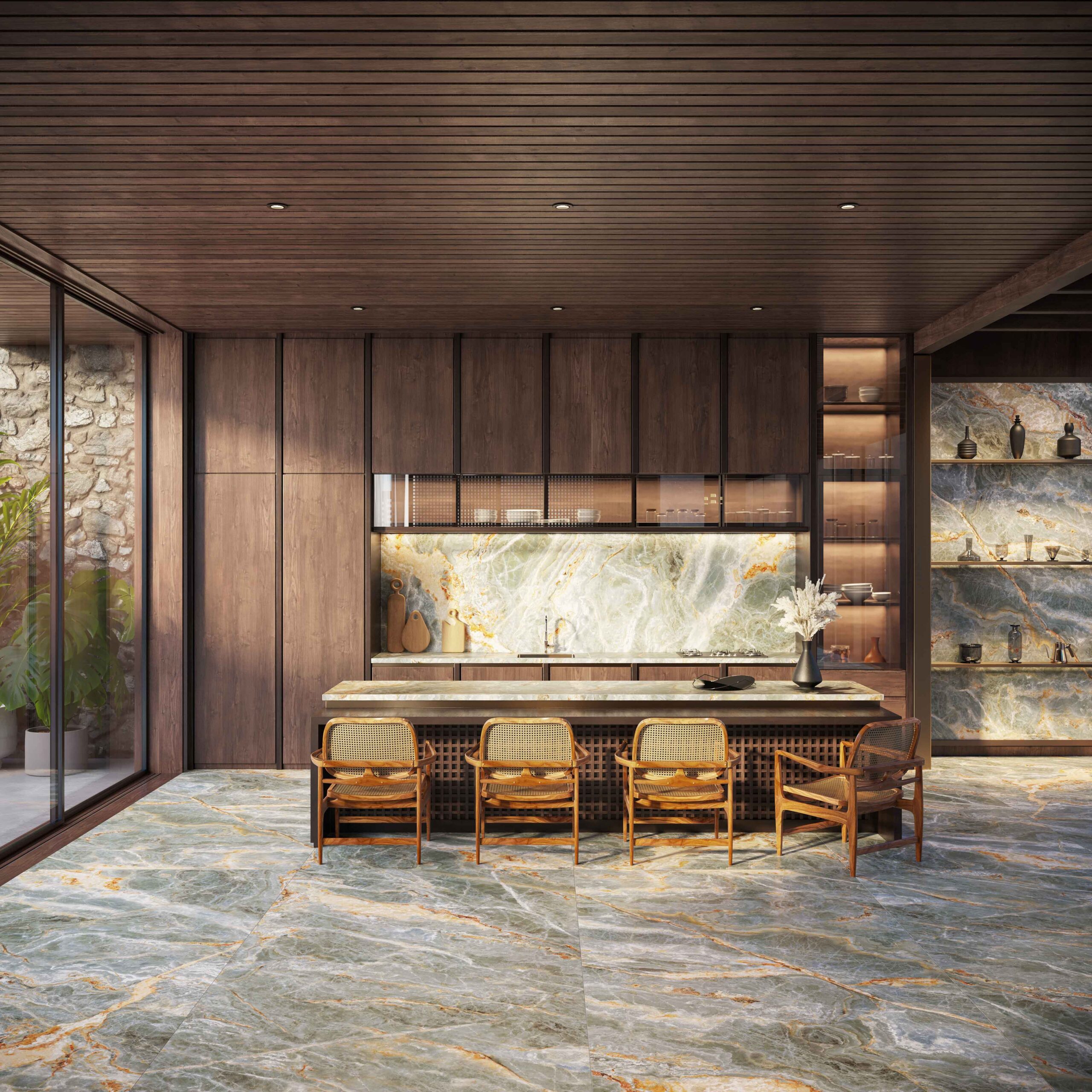

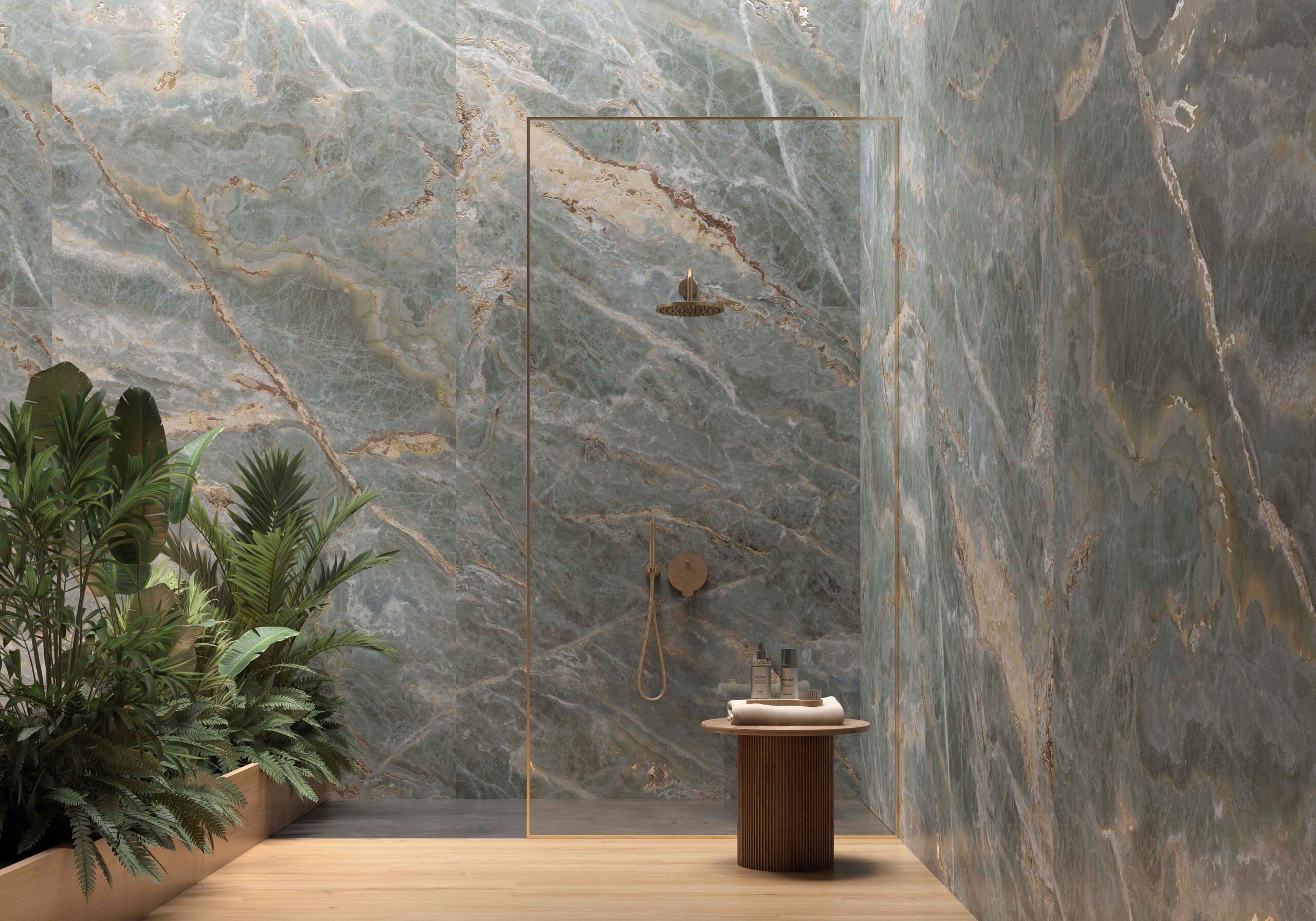

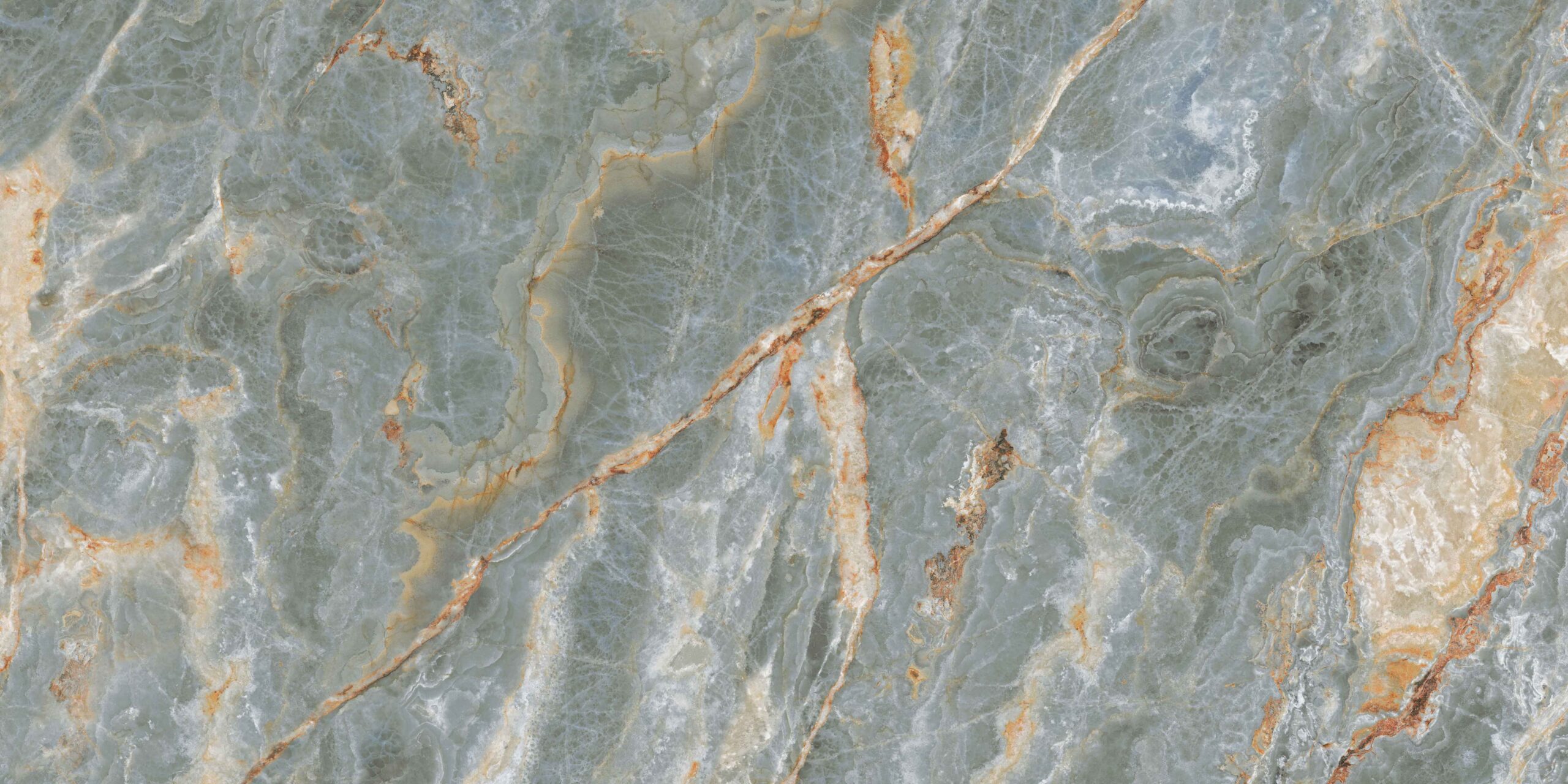

Gemstone Ocean View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

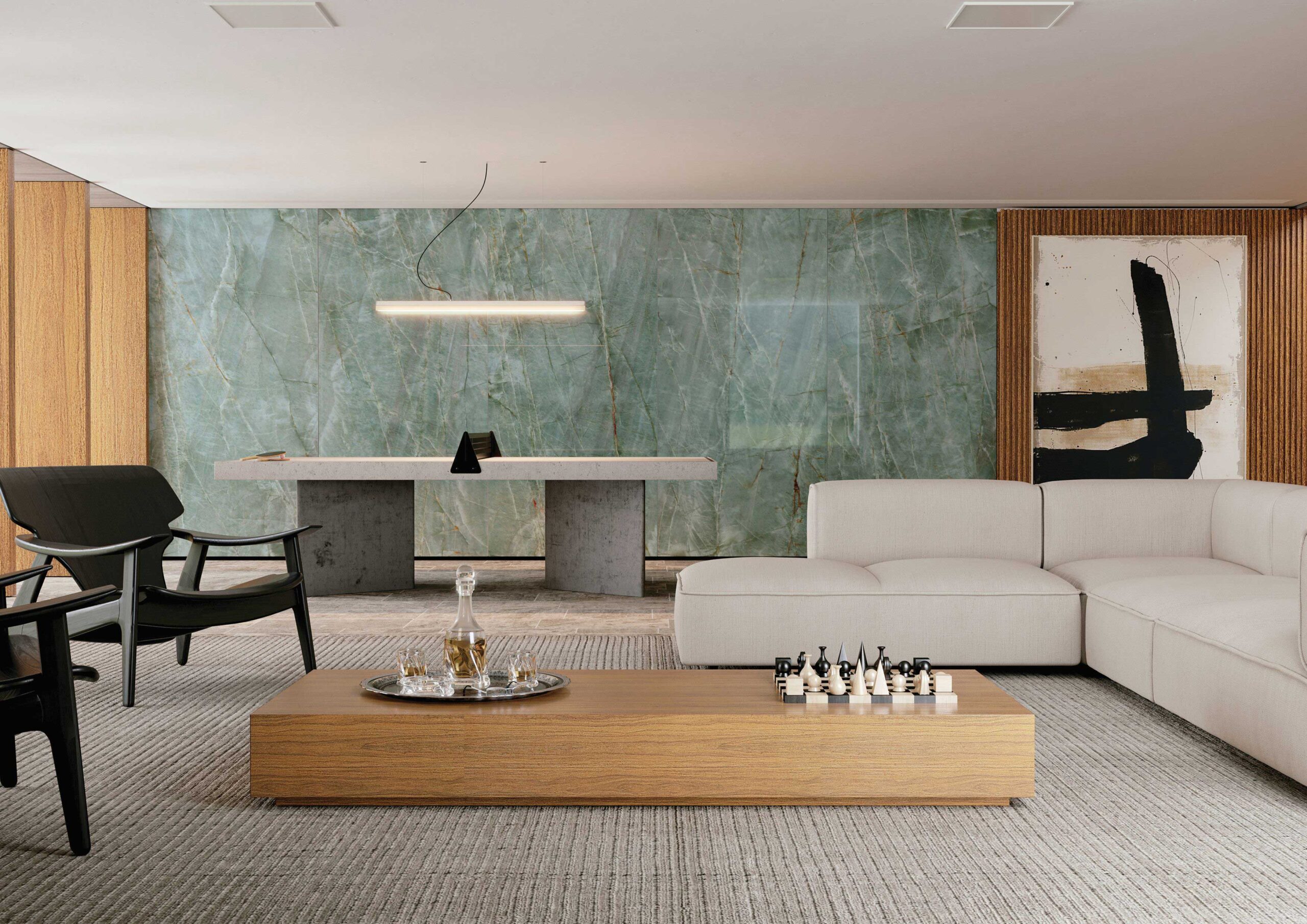

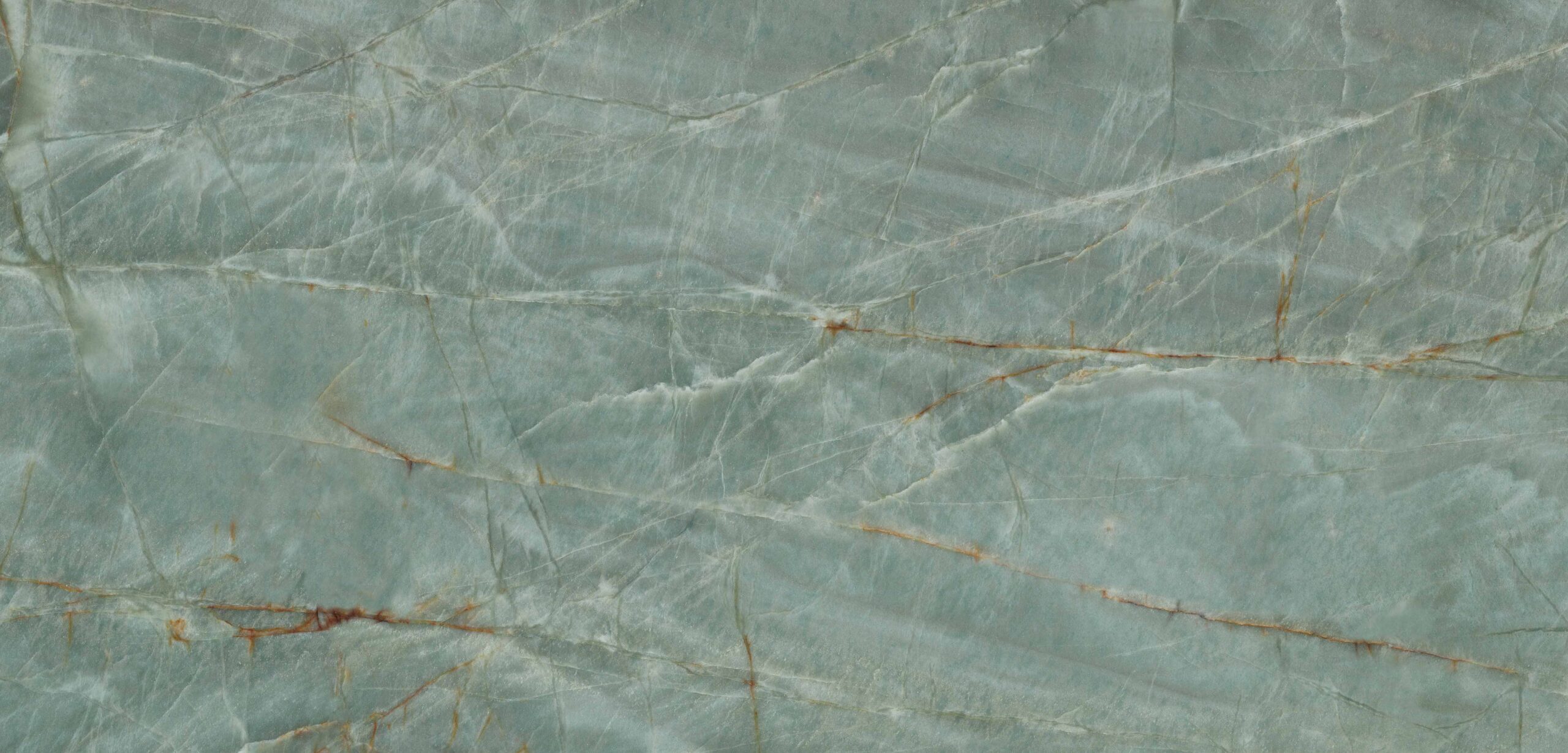

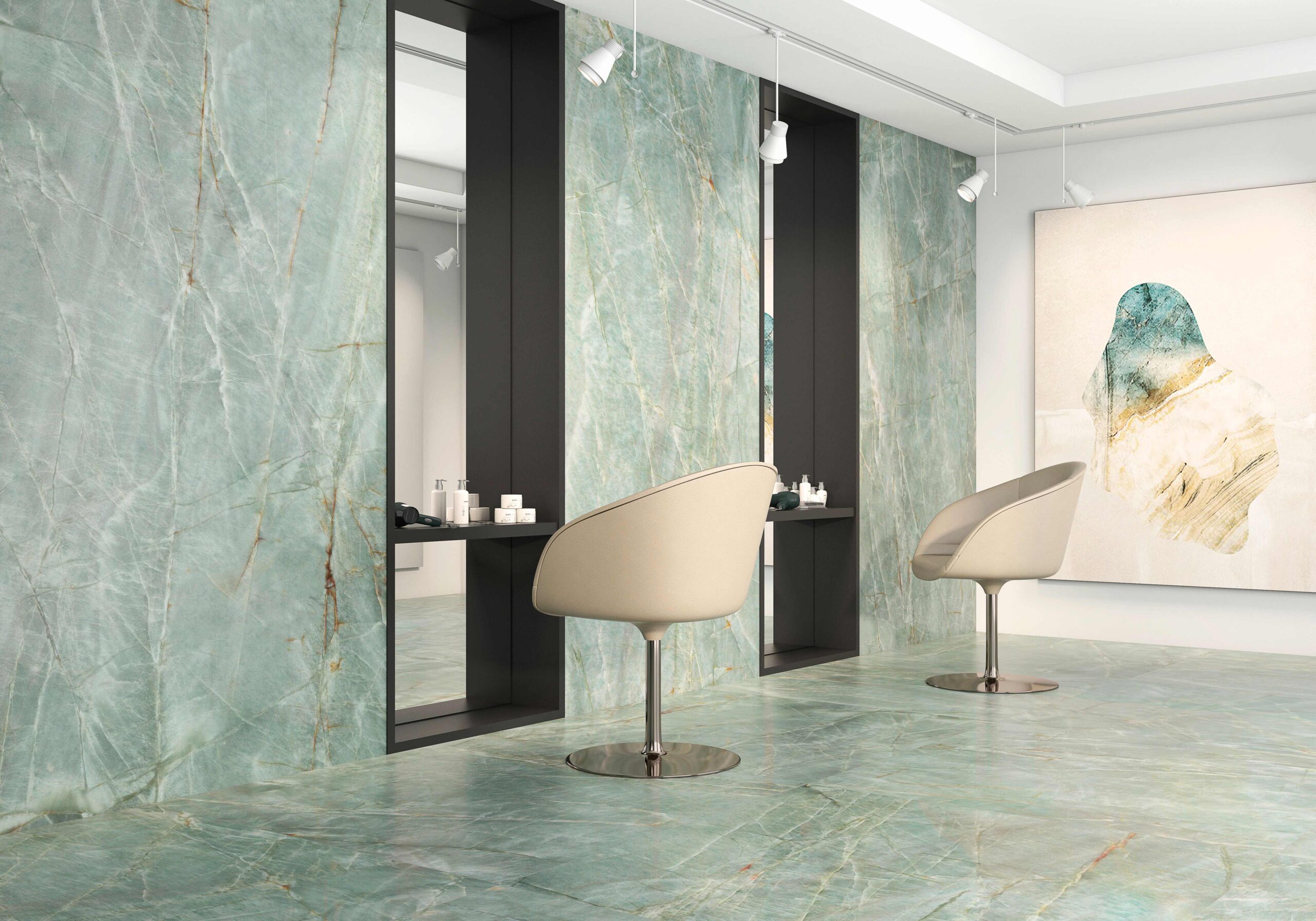

Emerald Quartzite View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

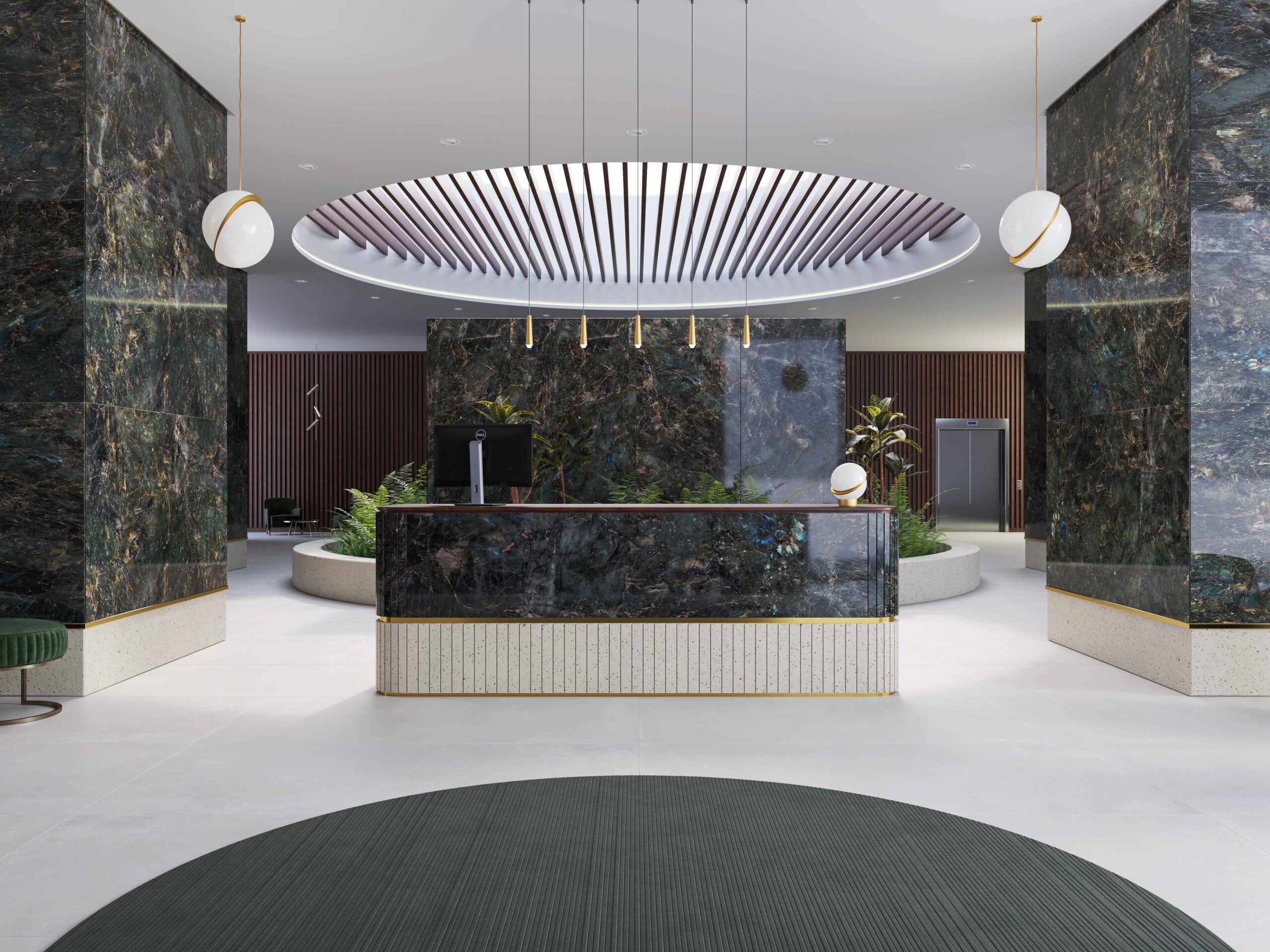

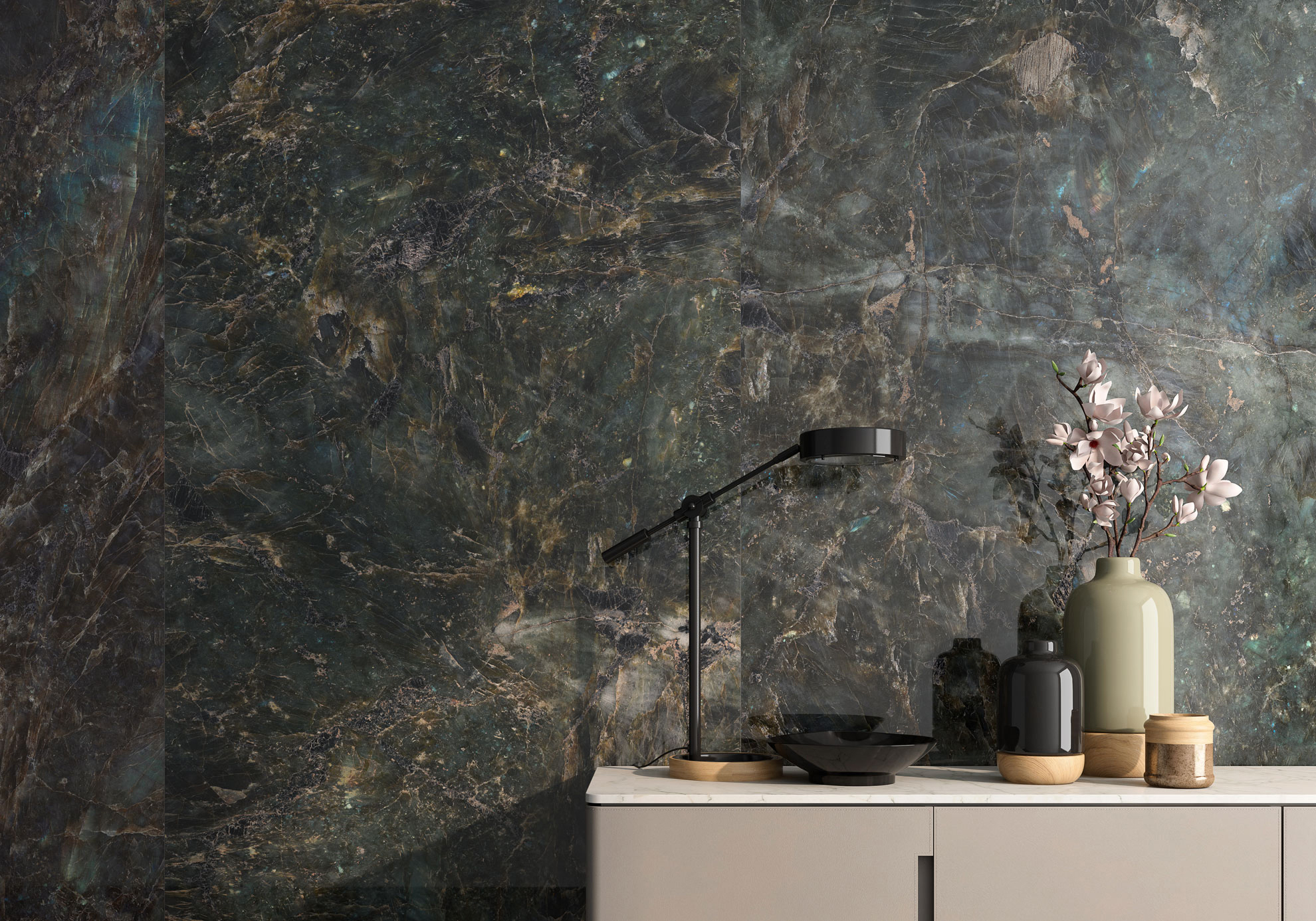

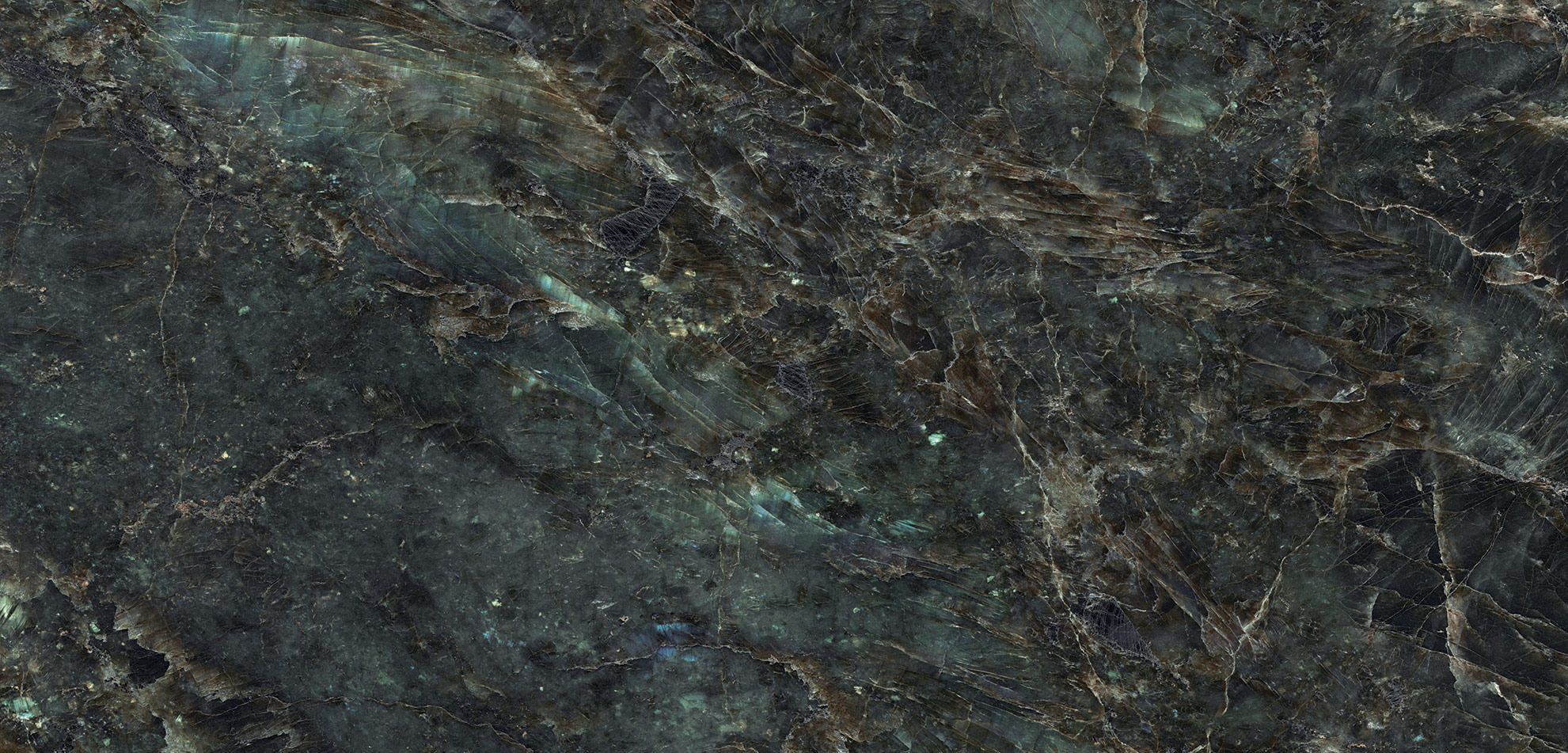

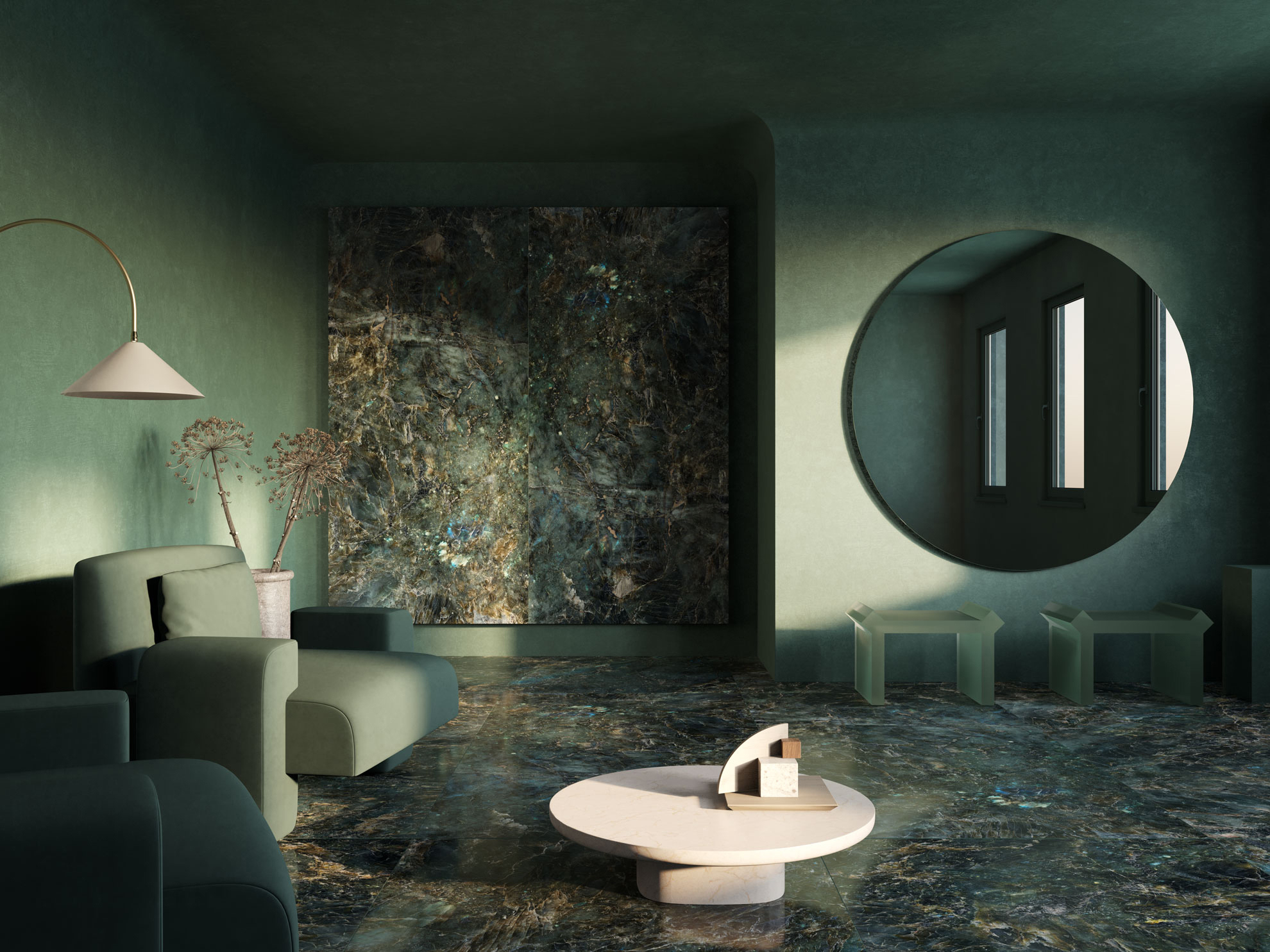

Peacock Green View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Add to a board Request Sample

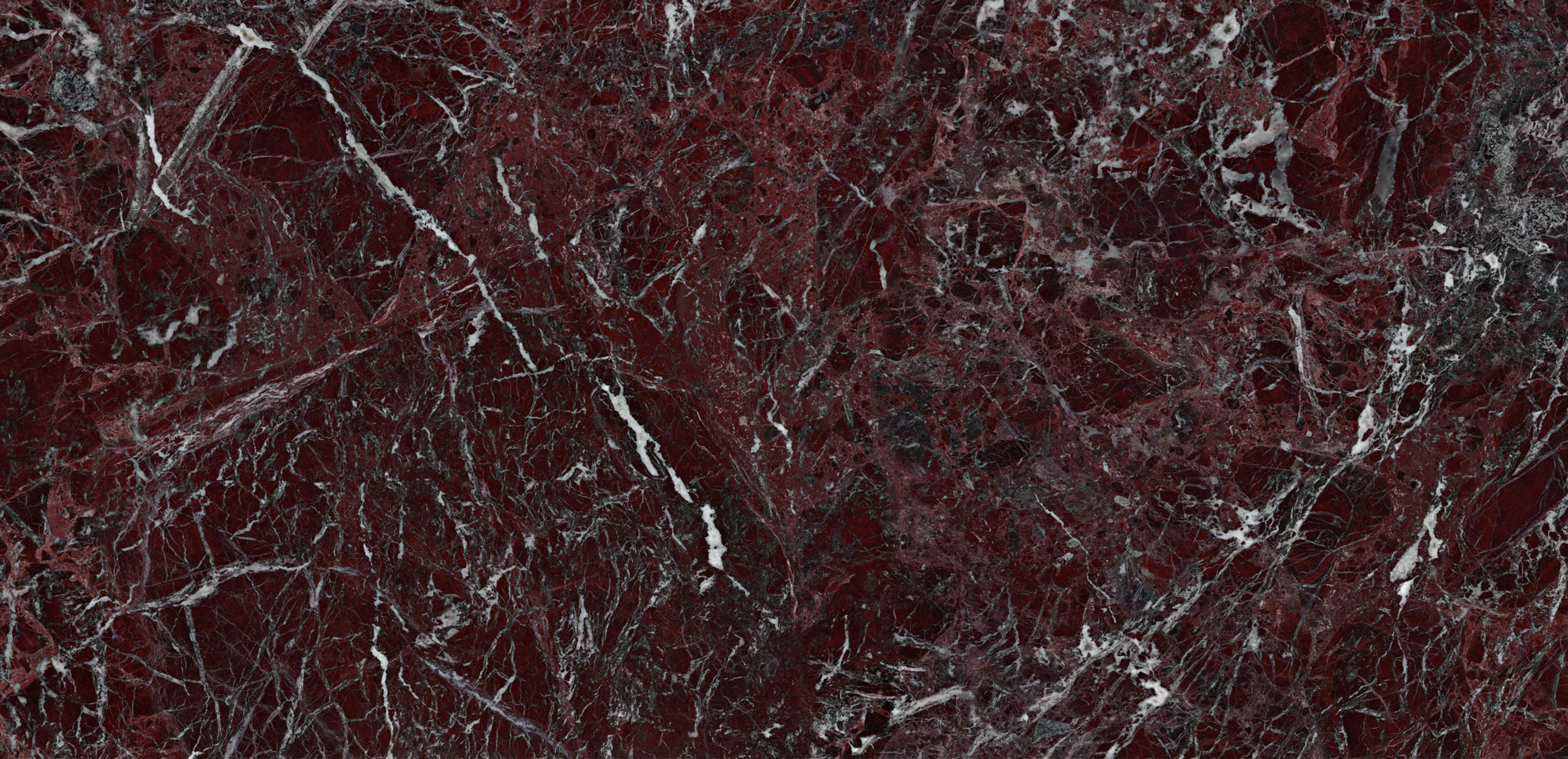

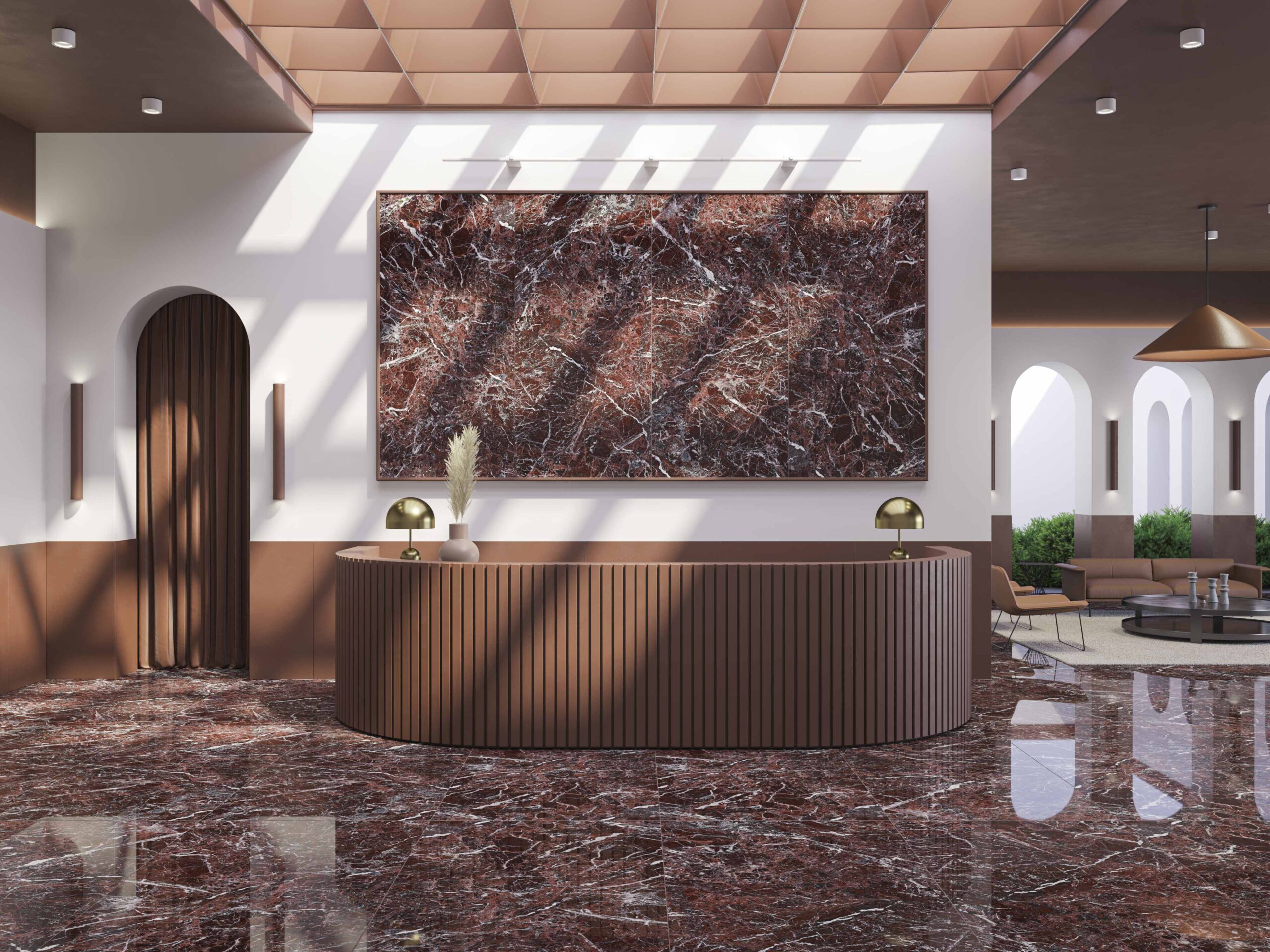

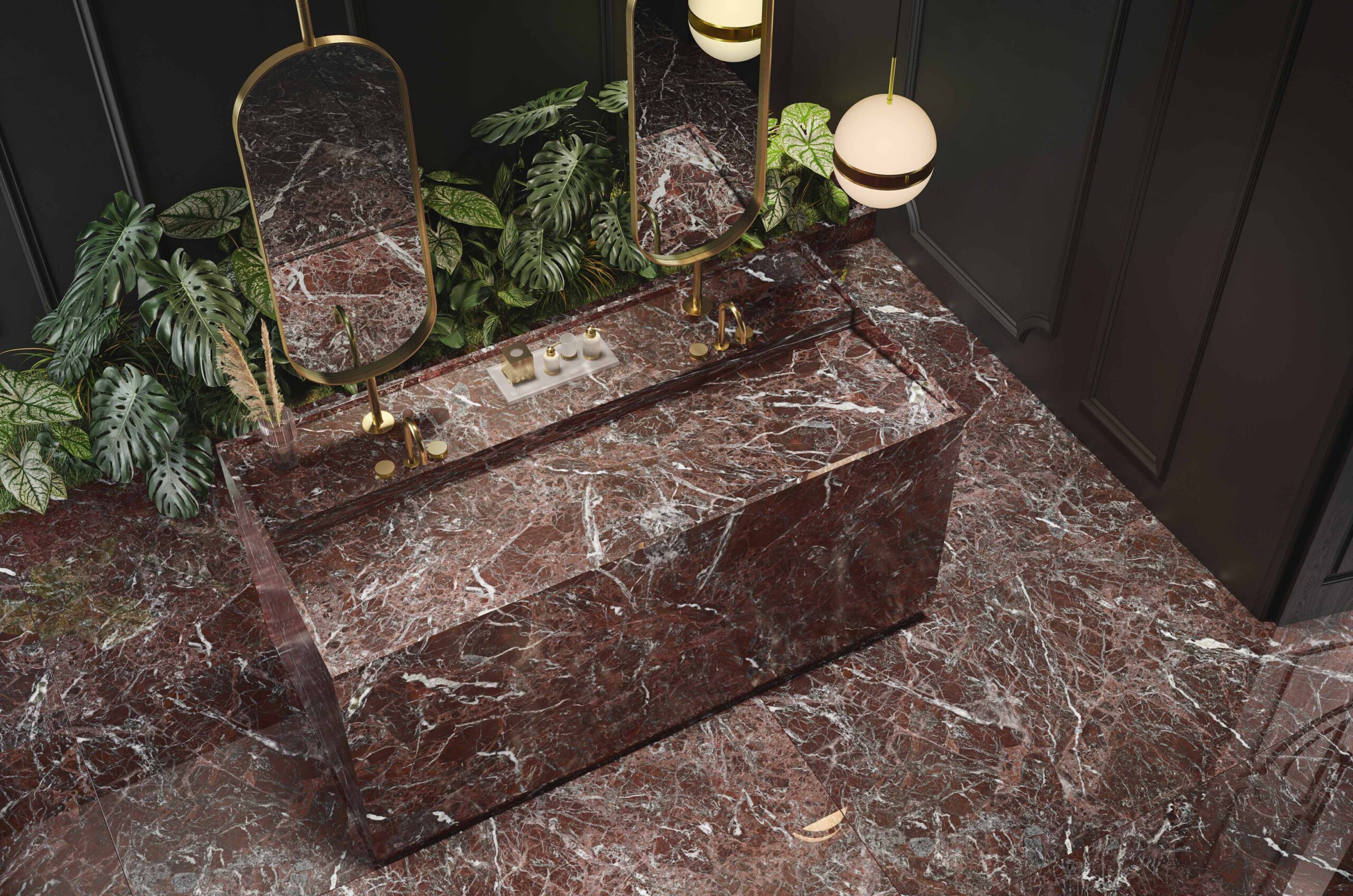

Rosso Levanto View Grout Selector

Select grout color on right to view application.

To request a grout sample, please note which grout color(s) you would like in the comments/message section of your sample request.

Body	Glazed Non Color-Body Porcelain
Country of Origin	Spain
Budget Price Per square foot. For budgeting purposes only. Applies to field tile (not mosaics, trim, décor). Overall collection average used - some items slightly less or slightly more than range.	$10+
Lead Time Estimated based upon averages. Lead times on each order depend upon availability at time of order. West coast of US should add +1 week if product is import. Contact us for QTYs >5,000SF.	2-3 Weeks
Stock Availability	Domestic Inventory
Shade Variation	V4
Application	Floor TileWall Tile
Rectified	Yes
Look	Marble & Onyx
Thickness	7mm
Finish	MattePolished
Notes	Refer to Cutsheet in Download Tab for Size + Finish + Thickness Specifics

VIEW COLOR & SIZE MATRIX

Limitations on Available Colors for Specific Sizes: Please reference our Color • Size • Finish Matrix by clicking the link above.

Test Name	Test Method	Test Result	Industry Standard
Water Absorption	ASTM C373	< 0.5%	𝗣𝗼𝗿𝗰𝗲𝗹𝗮𝗶𝗻 • <0.5%
PEI	ASTM C1027	III	𝗣𝗘𝗜 𝟮-𝟯 • Recommended for Residential Floor - Light Commercial
Breaking Strength	ASTM C648	200 lbf	𝗜𝗦𝗢 • Tiles with thickness < 7.5 mm: Breaking strength must be ≥ 700 N
DCOF	ANSI A326.3	> 0.42 Wet - Matte
	ANSI A326.3	<0.42 Wet - Polished

Cradle to Cradle	No
Declare Label - Red List Free	No
EPD - Industry Wide	No
EPD - Product Specific	No
GreenGuard Certified	No
Green Squared Certified	No
HPD	No
LEED Friendly	Yes
FloorScore®	No
Mindful Materials	No
Recycled Content	9%
Recycled Content Type	Pre-Consumer

Additional Information

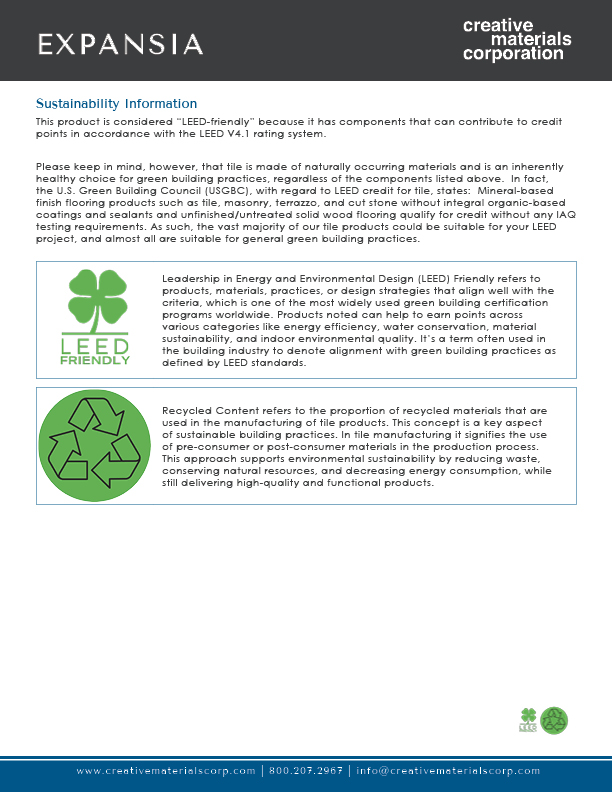

Expansia Gauged Porcelain is considered “LEED-friendly” because it contains recycled content, which can contribute to credit points in accordance with the LEED V4.1 rating system.
